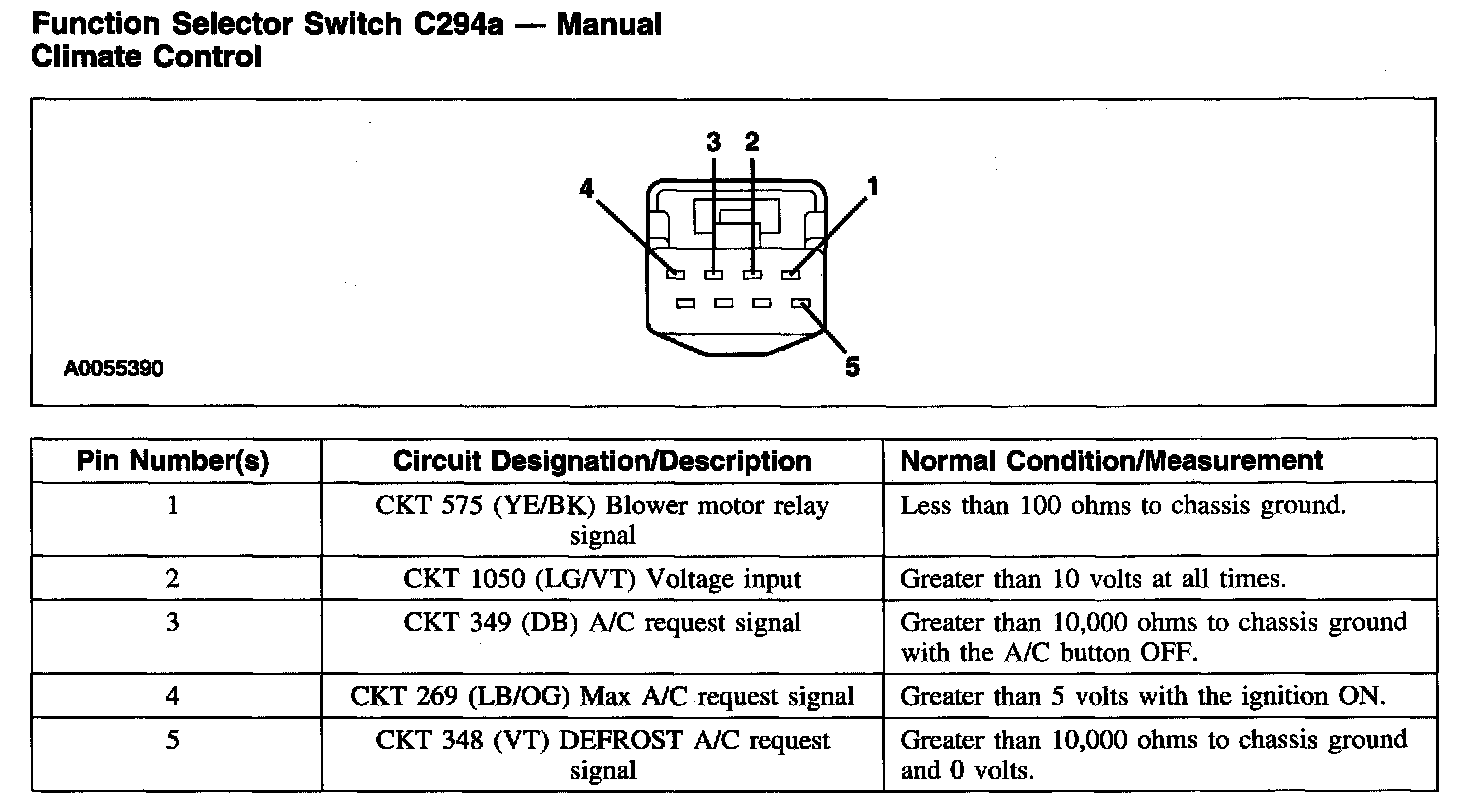

Function Selector Switch C294a - Manual Climate Control

Function Selector Switch C294a - Manual Climate Control:
