Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Auxiliary Blower Motor C3021

Auxiliary Blower Motor C3021

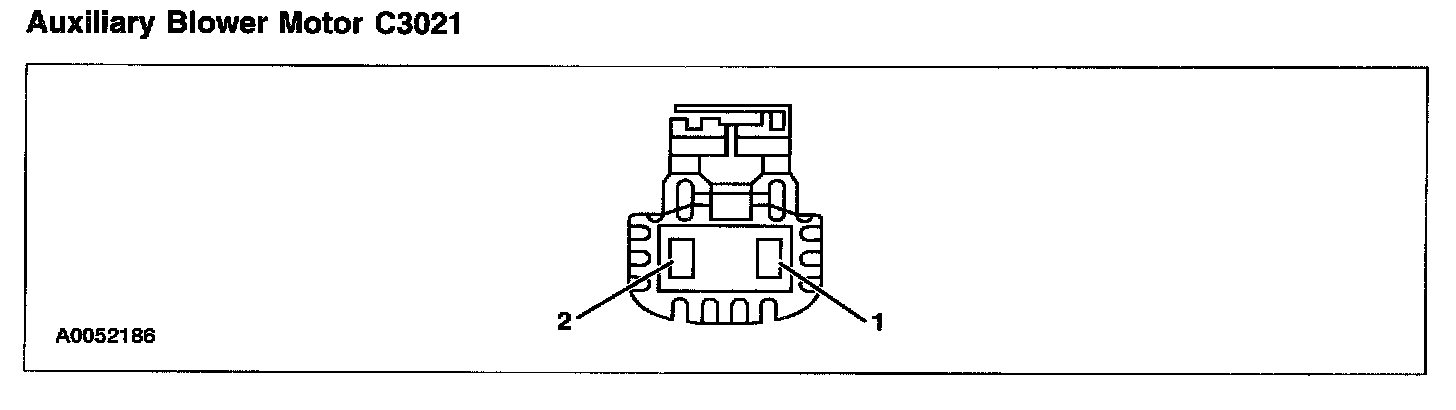

Auxiliary Blower Motor C3021, Part 1:

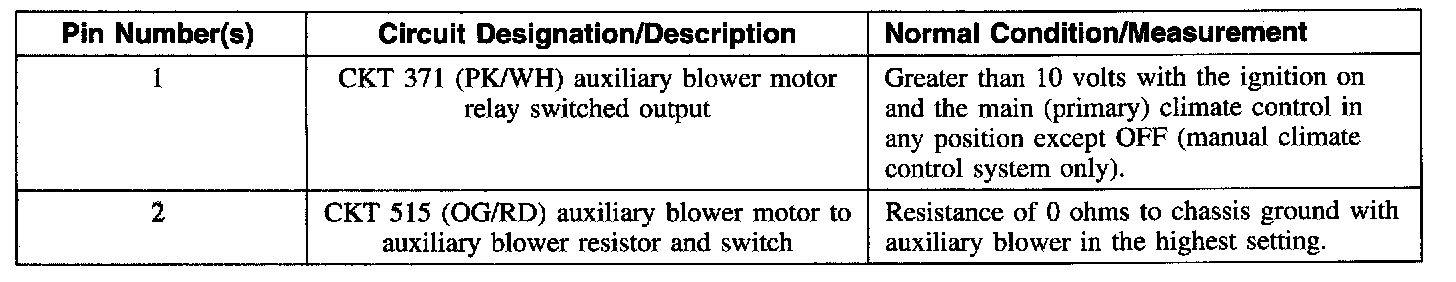

Auxiliary Blower Motor C3021, Part 2:
