Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> ATC Solenoid and Manifold C2093

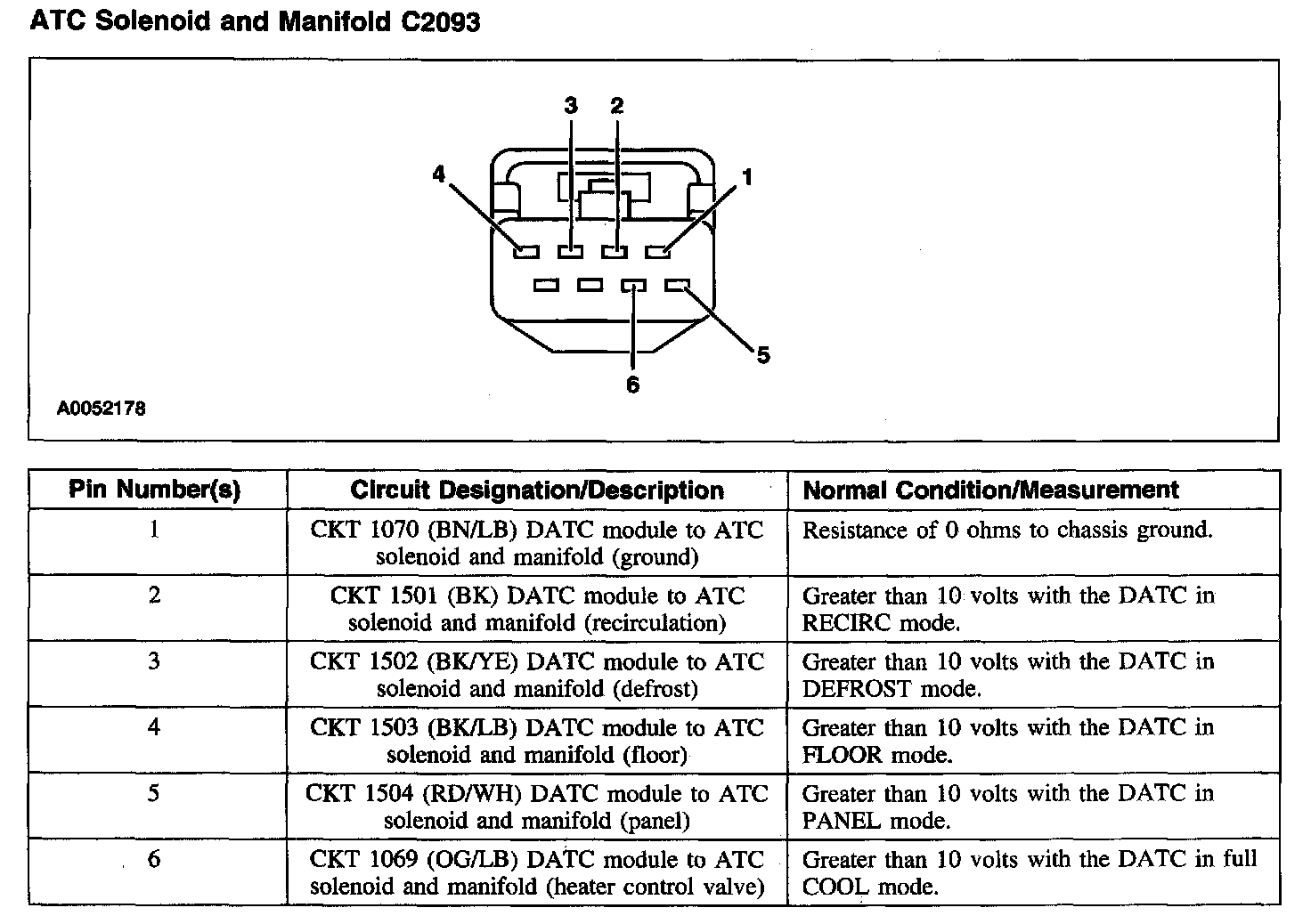

ATC Solenoid and Manifold C2093

ATC Solenoid And Manifold C2093:
