Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Rear Auxiliary Climate Control Assembly

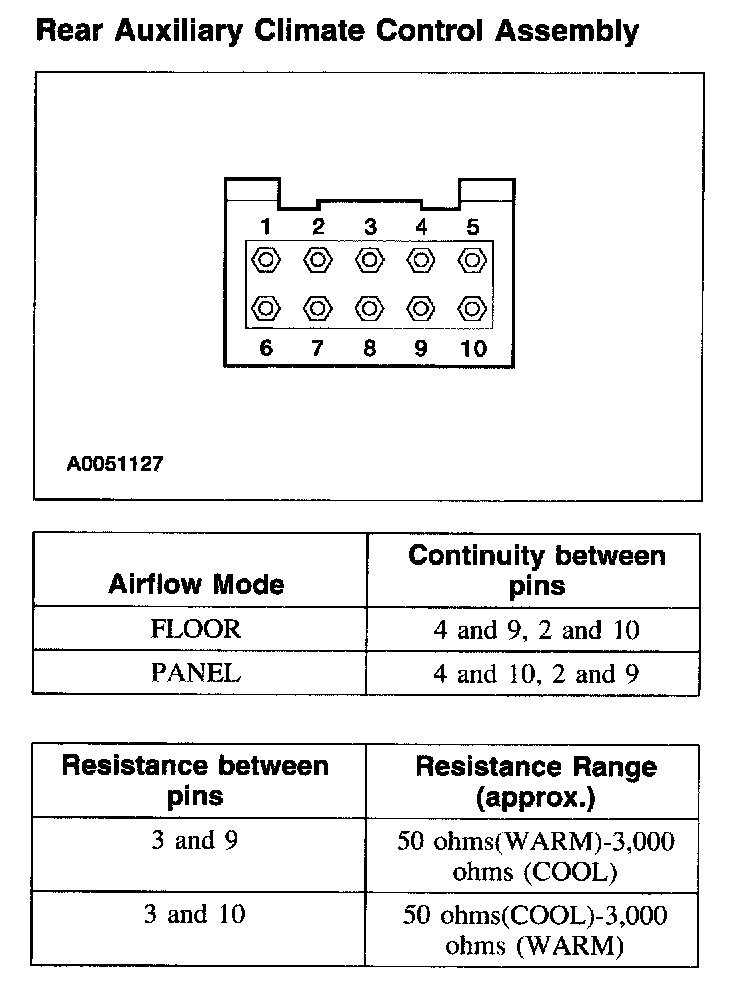

Rear Auxiliary Climate Control Assembly

Rear Auxiliary Climate Control Assembly:
