BLOWER MOTOR
- FRONT
REMOVAL AND INSTALLATION
1.

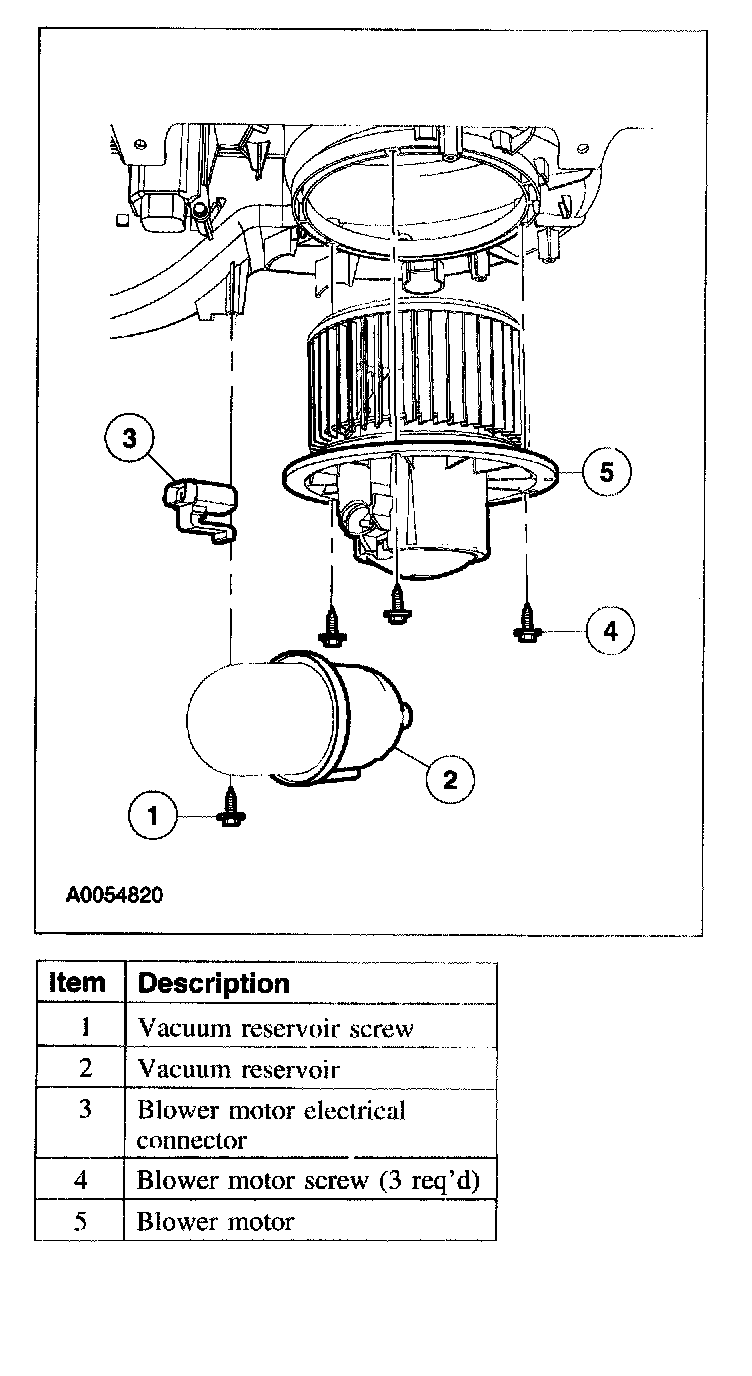

Remove the components in the order indicated in the illustration and table.
