Valve Cover RH

Valve Cover RH

Removal and Installation
1. Release the fuel system pressure.
2. Remove the intake manifold.

Part 1 Of 2:

Part 2 Of 2:

3. Illustration 1 of 2. Remove the components in the order indicated.

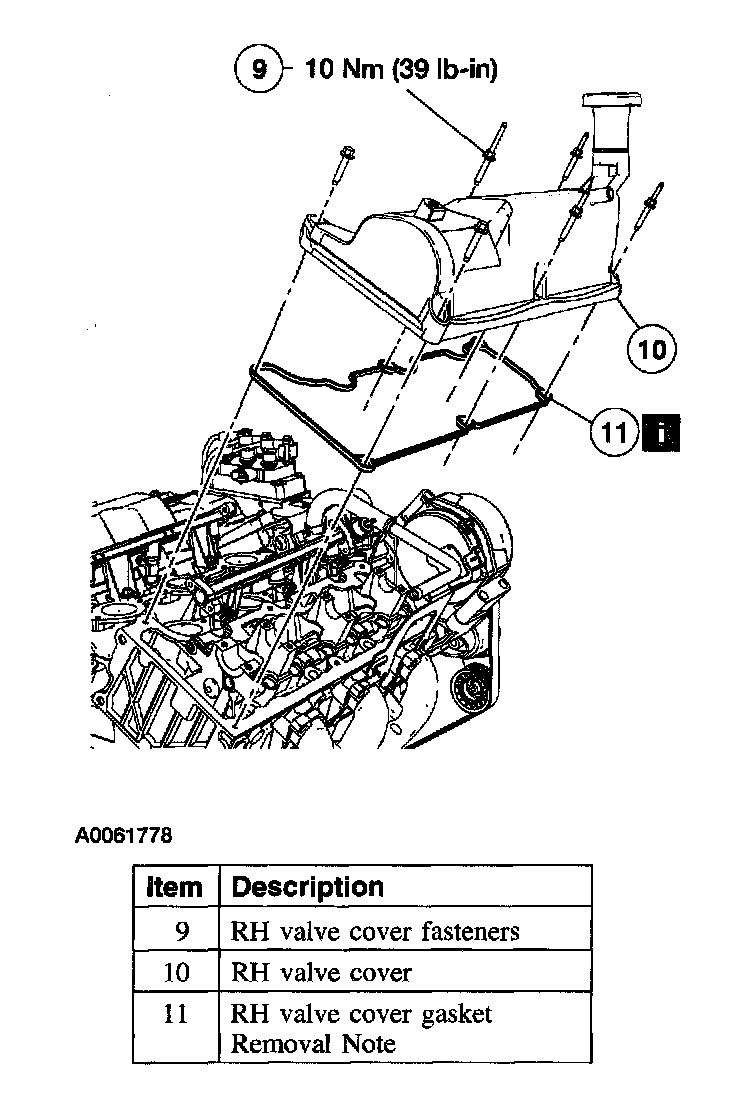

4. Illustration 2 of 2. Remove the components in the order indicated.
5. To install, reverse the removal procedure.

Item 4: Fuel Supply Manifold Spring Lock Coupling Removal Note

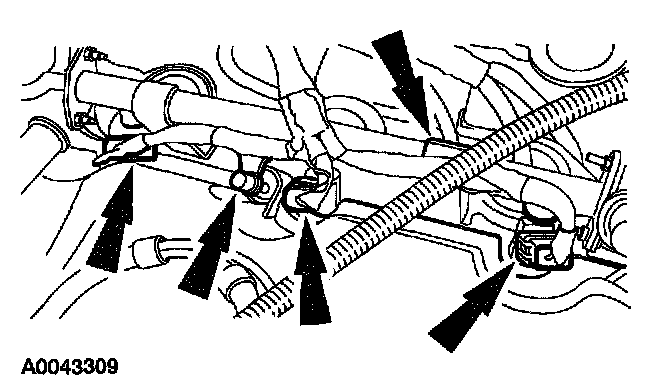

1. Disconnect the fuel injector electrical connectors and routing clips.

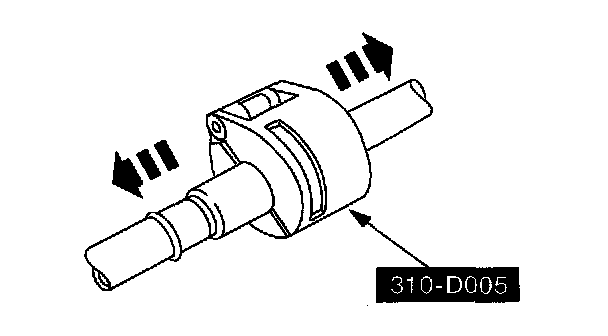

2. Install the special tool.





3. Press the special tool into the open end of the cage.





4. Separate the fuel line fitting.

Item 7: Fuel Supply Manifold Removal Note

1. CAUTION: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-ring seals can cause the fuel system to leak.

Discard the fuel supply manifold O-ring and install a new O-ring.

Item 8: Spark Plug Wires Removal Note





1. Disconnect the retaining clips and position the spark plug wires aside.

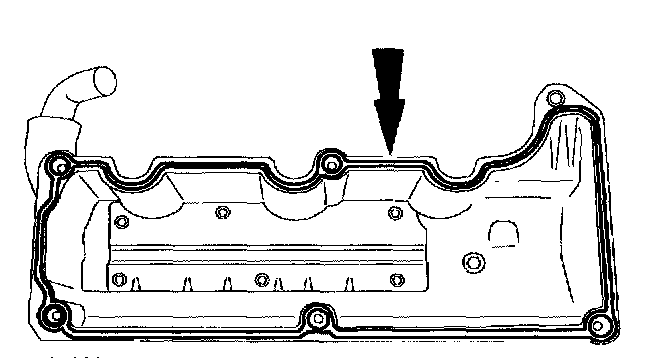

Item 11: RH Valve Cover Gasket Removal Note





1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

Clean and inspect the sealing surfaces. Install a new gasket, if necessary.
