FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Explorer AWD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

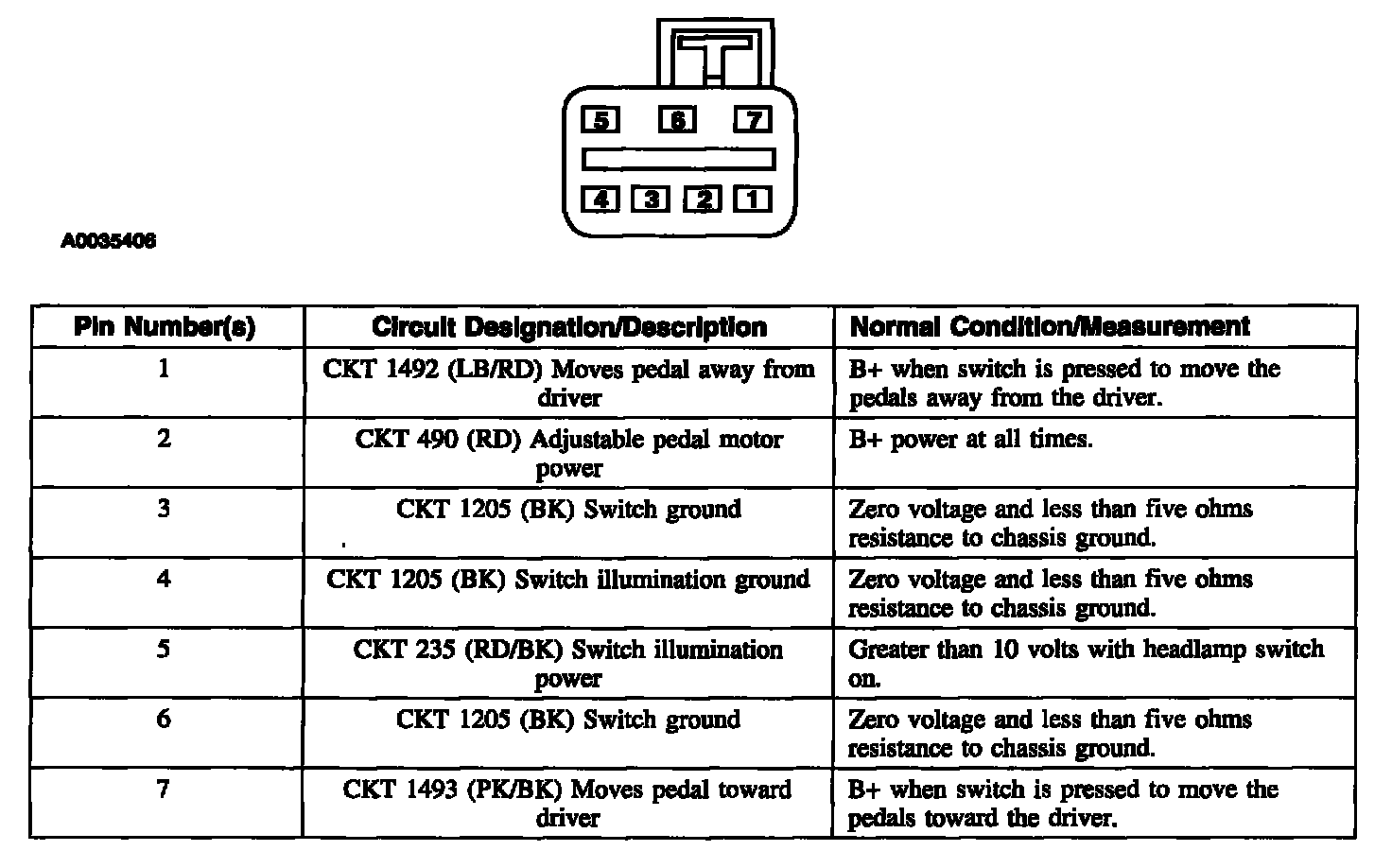

Adjustable Brake Pedal Switch - C20X9
Adjustable Brake Pedal Switch - C20X9
