Sensor, Front

Front Wheel Speed Sensor and Sensor Ring

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the front wheel and tire assembly.

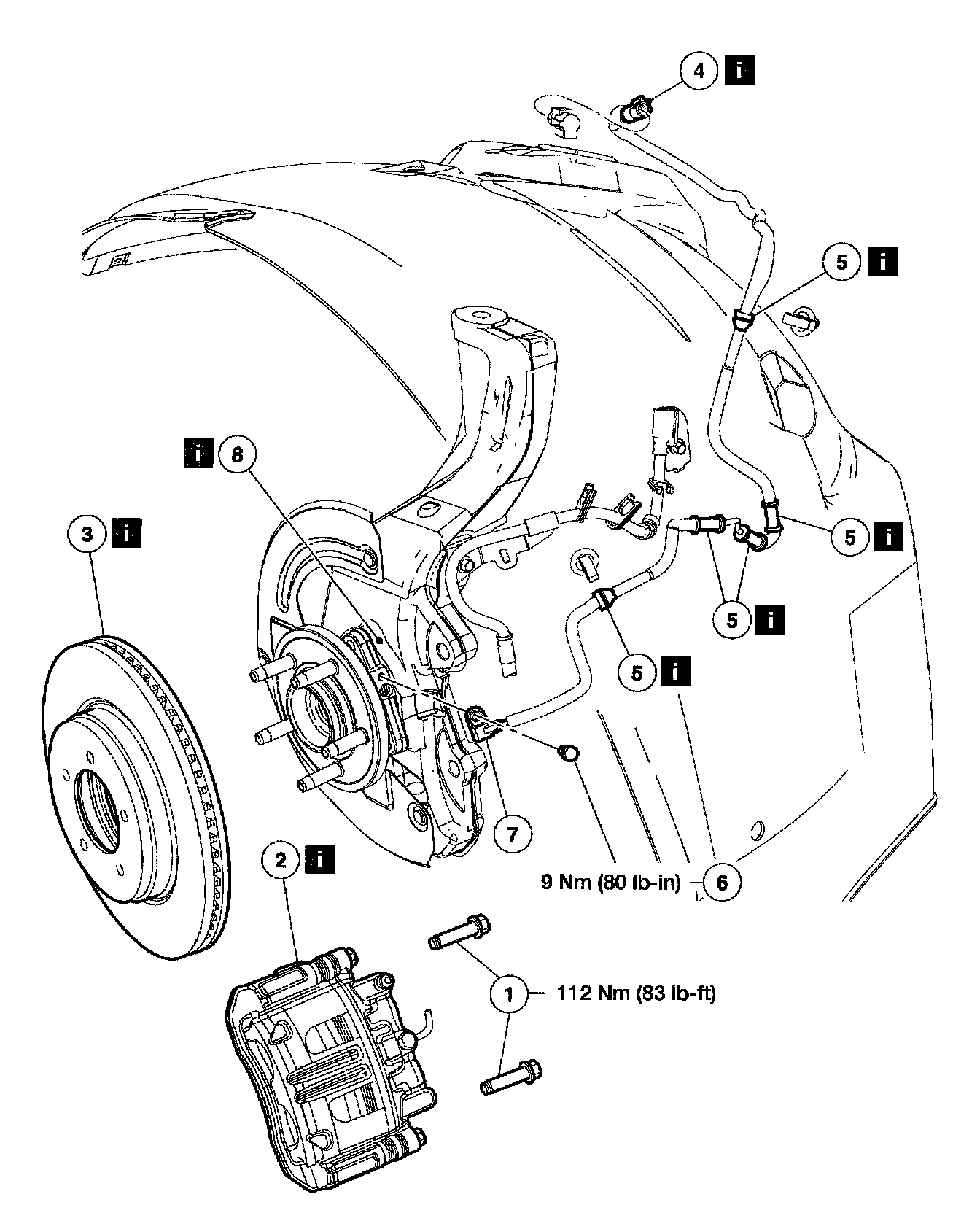

3. Remove the components in the order indicated in the following illustration and table.








4. To install, reverse the removal procedure.

Item 2: Front Disc Brake Caliper Anchor Plate, Caliper, and Pads Removal Note

1. CAUTION: When removing the front disc brake components, never allow them to hang from the brake hose.

Using mechanic's wire, secure the front brake components.

Item 3: Front Disc Removal Note
1. Match mark the front disc and front wheel hub flange before removing the front disc.

Item 4: Harness Connector Removal Note

1. NOTE: The harness connector is located in the engine compartment secured to the fender apron.

Lower the vehicle.

Item 5: Harness Retainers Removal Note
1. Raise the vehicle on a hoist.

Item 8: Sensor Ring Removal Note
1. The sensor ring is integral to the front wheel hub and bearing assembly and cannot be serviced.
