Lateral Accelerometer: Service and Repair

Accelerometer

Removal and Installation
1. Disconnect the battery ground cable.

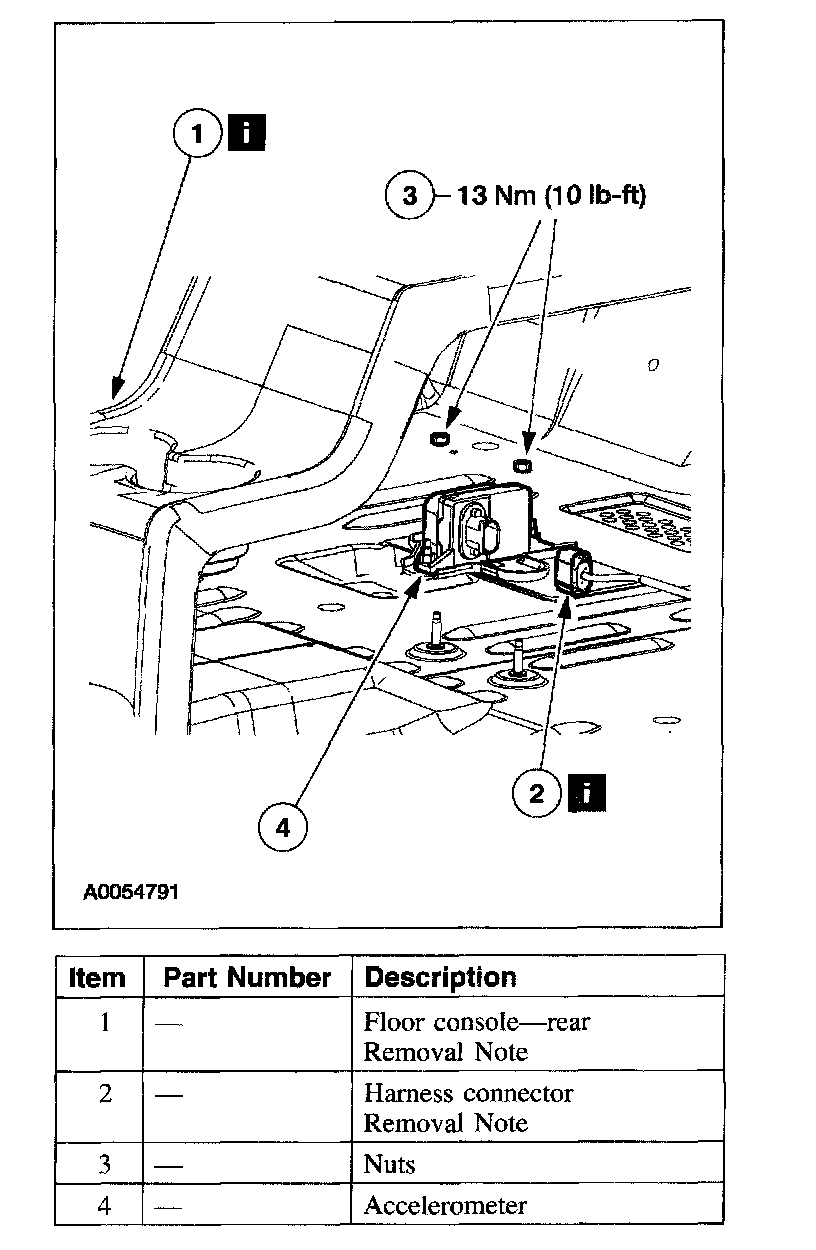

2. Remove the components in the order indicated in the following illustration and table.





3. To install, reverse the removal procedure.

Item 1: Floor Console-Rear Removal Note
1. If equipped, remove the floor console-rear.

Item 2: Harness Connector Removal Note
1. Fold back the carpeting flap to gain access to the accelerometer connector.
