Ford Truck
>>
2003
>>
Explorer AWD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

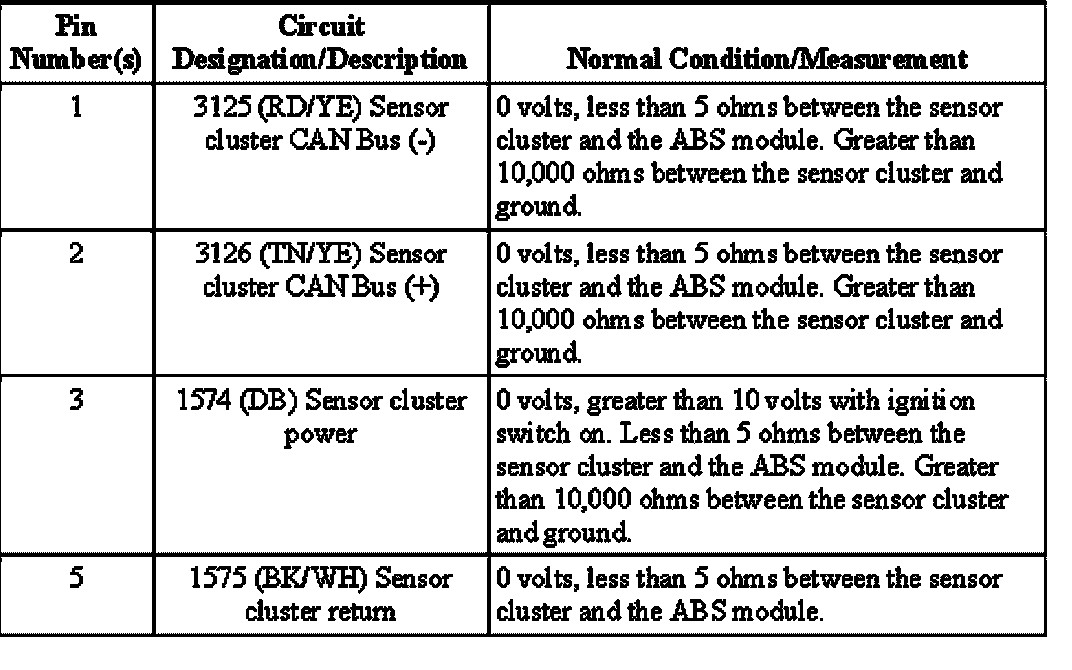

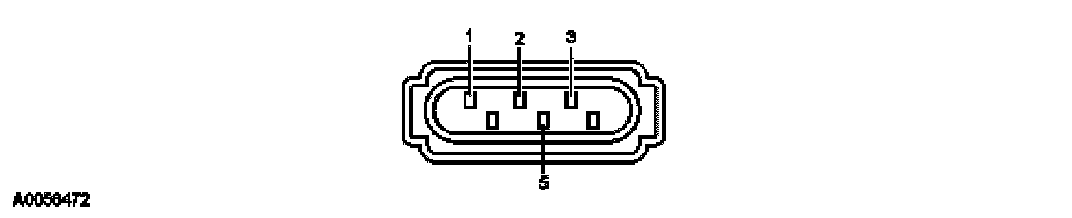

Sensor Cluster C3179 (2WD)
Sensor Cluster C3179 (2WD)
