Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit References >> Passenger Power Seat Motor C3015

Passenger Power Seat Motor C3015

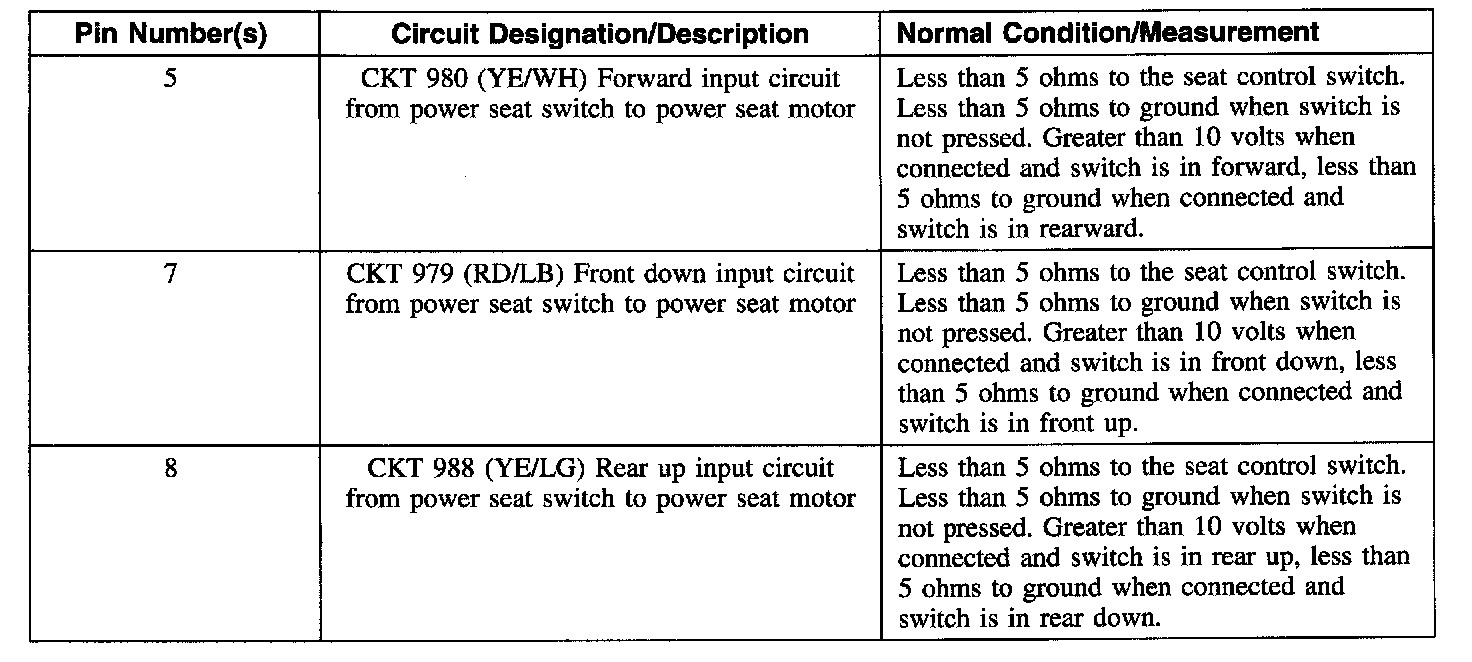

Passenger Power Seat Motor C3015, Part 1:



Passenger Power Seat Motor C3015, Part 2:
