Home
>>
Ford Truck
>>
2003
>>
Explorer AWD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit References
>>
Passenger Power Seat Control Switch C355
Passenger Power Seat Control Switch C355

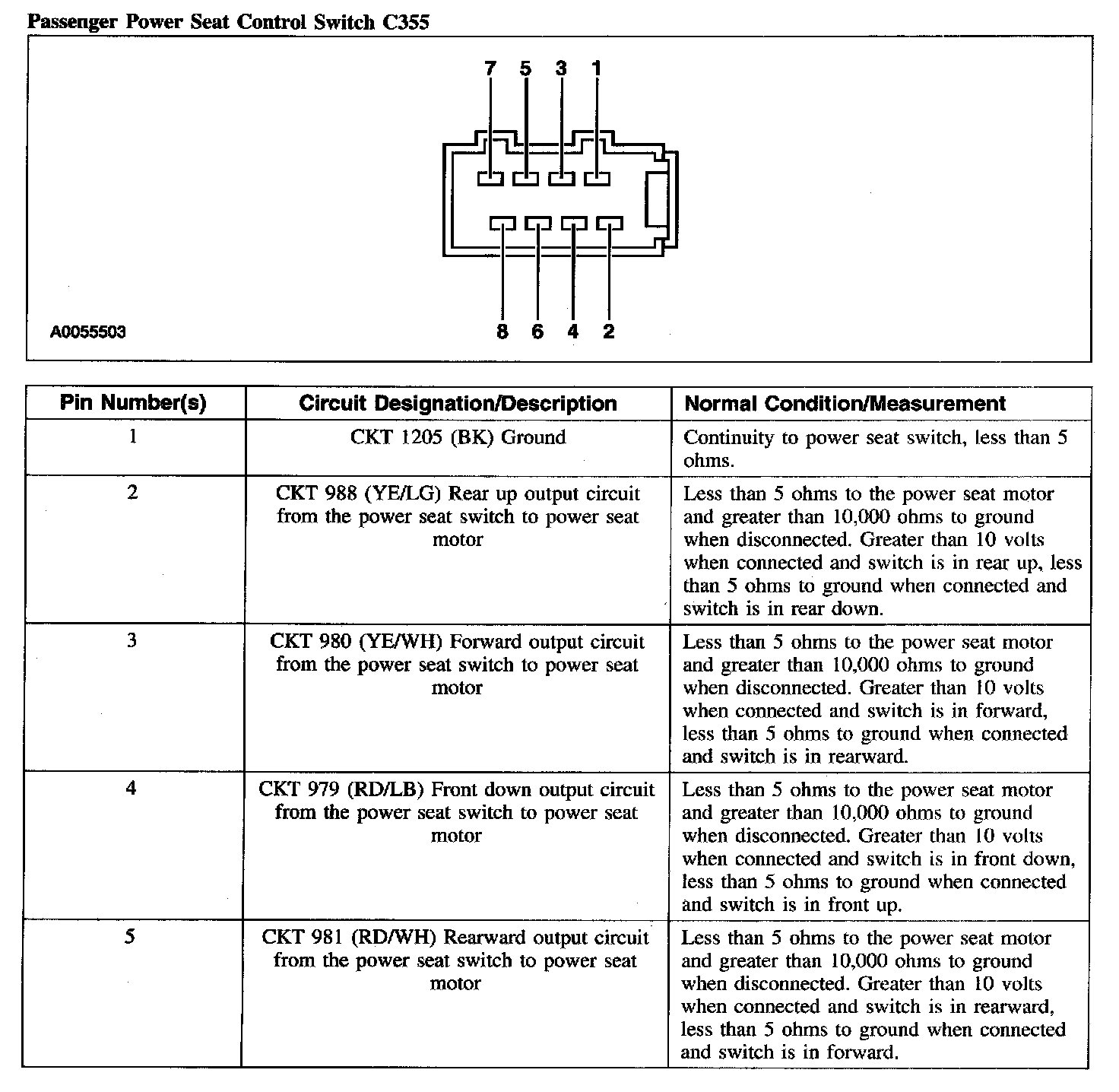

Passenger Power Seat Control Switch C355, Part 1:

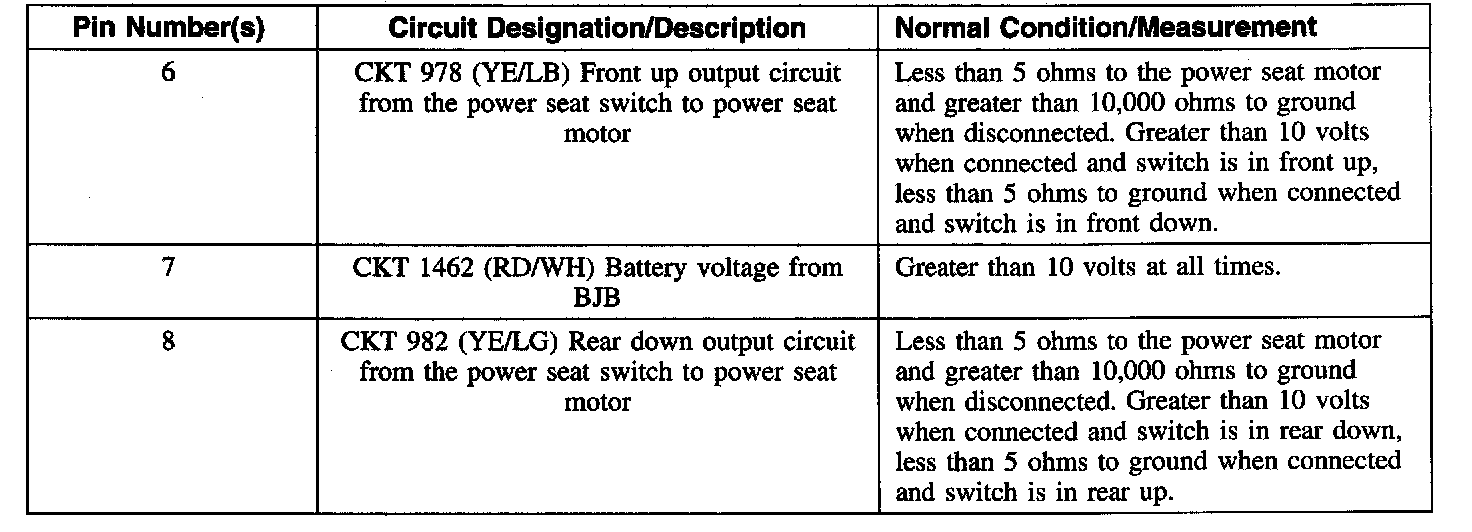

Passenger Power Seat Control Switch C355, Part 2:
