Driver and Passenger Heated Switch C320/C321

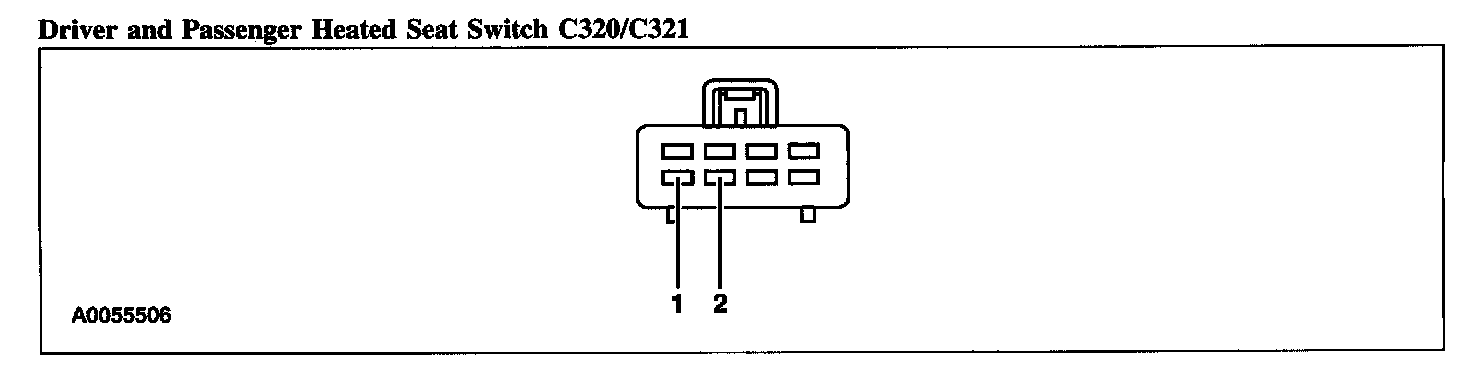

Driver and Passenger Heated Switch C320/C321

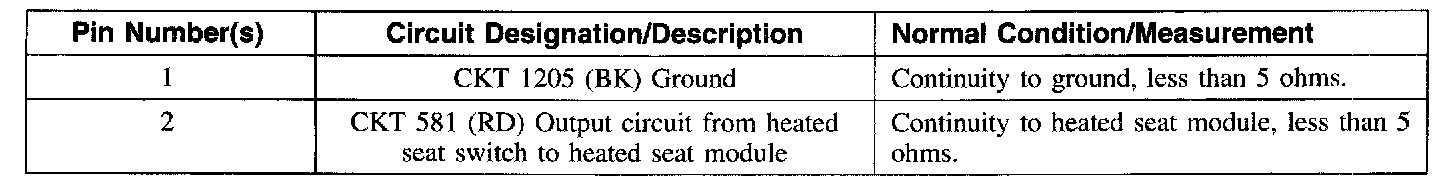

Driver And Passenger Heated Seat Switch C320/C321, Part 1:
Driver And Passenger Heated Seat Switch C320/C321, Part 2:
