FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Explorer AWD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit References
>>
Driver and Passenger Heated Seat Module C3191/C3192

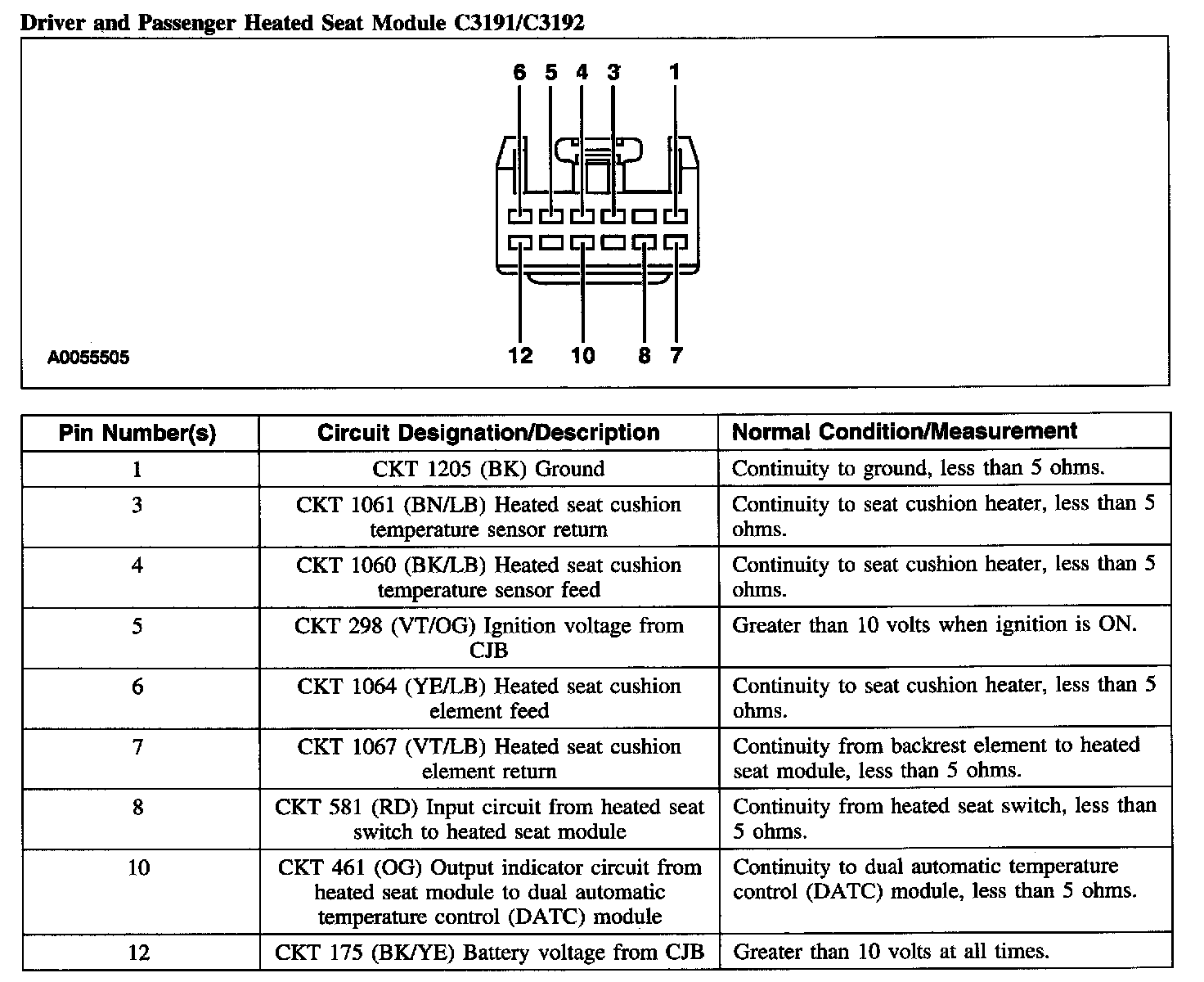

Driver and Passenger Heated Seat Module C3191/C3192
Driver And Passenger Heated Seat Module C3191/C3192:
