Ford Truck
>>
2003
>>
Explorer AWD V6-4.0L VIN E
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit References
>>

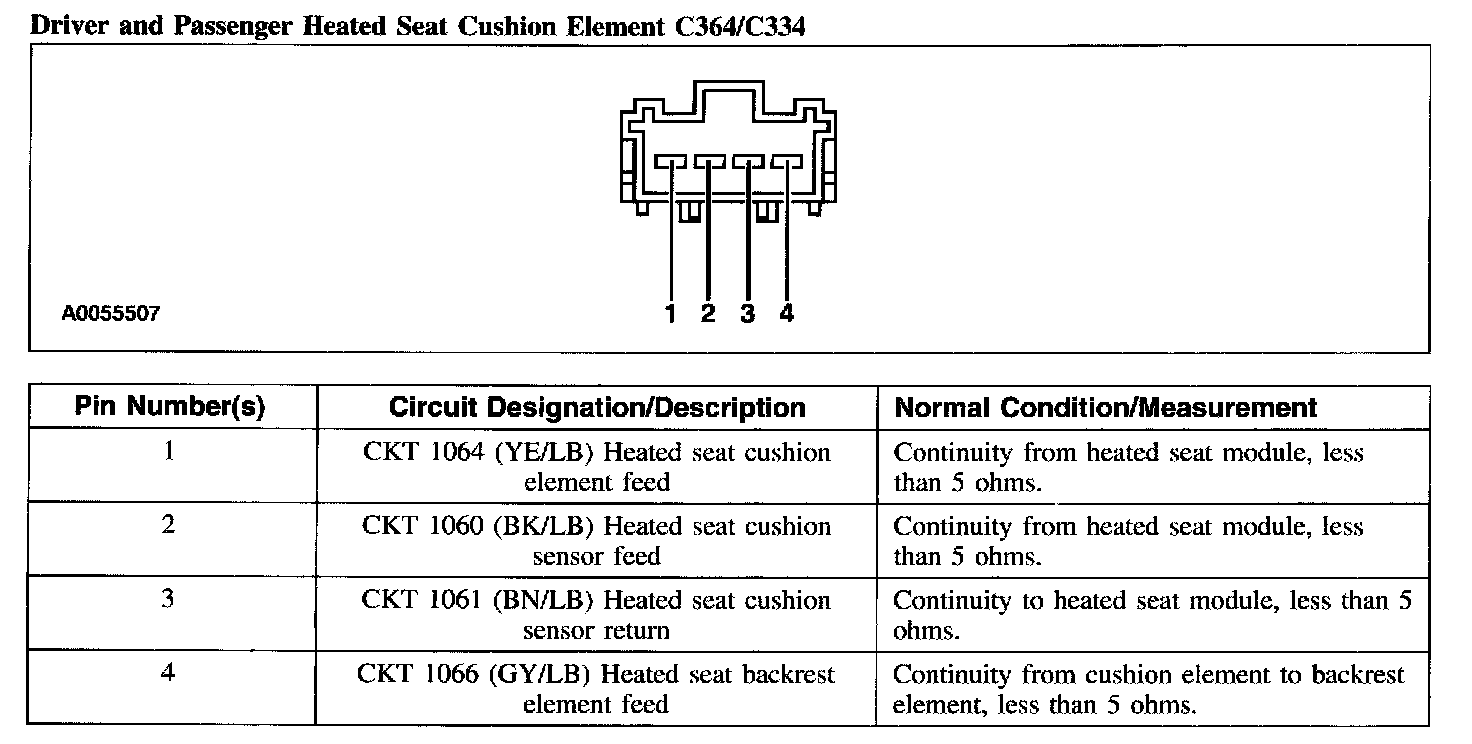

Driver and Passenger Heated Seat Cushion Element C364/C334
Driver and Passenger Heated Seat Cushion Element C364/C334
Driver And Passenger Heated Seat Cushion Element C364/C334:
