Driver Power Seat Motor C357

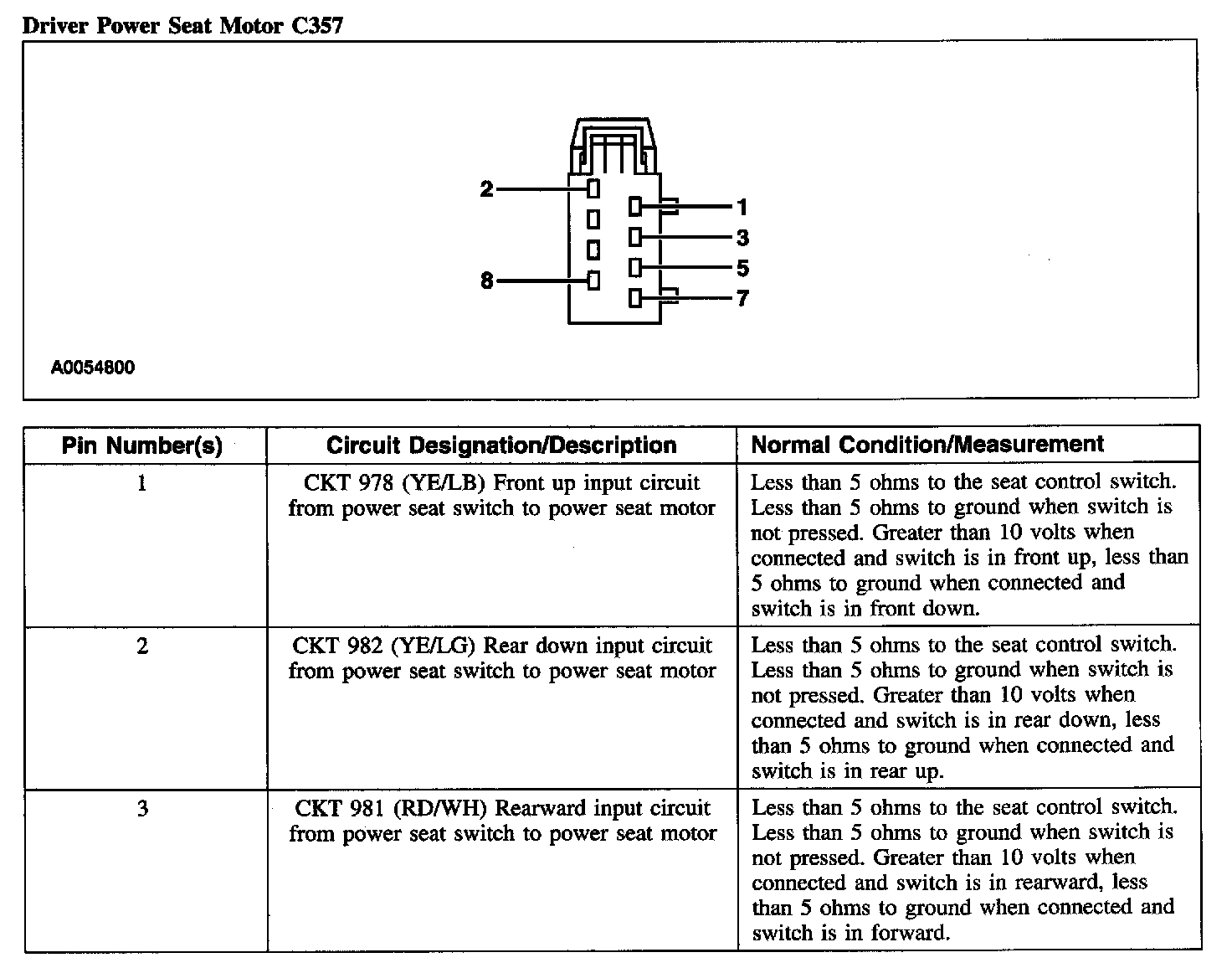

Driver Power Seat Motor C357, Part 1:

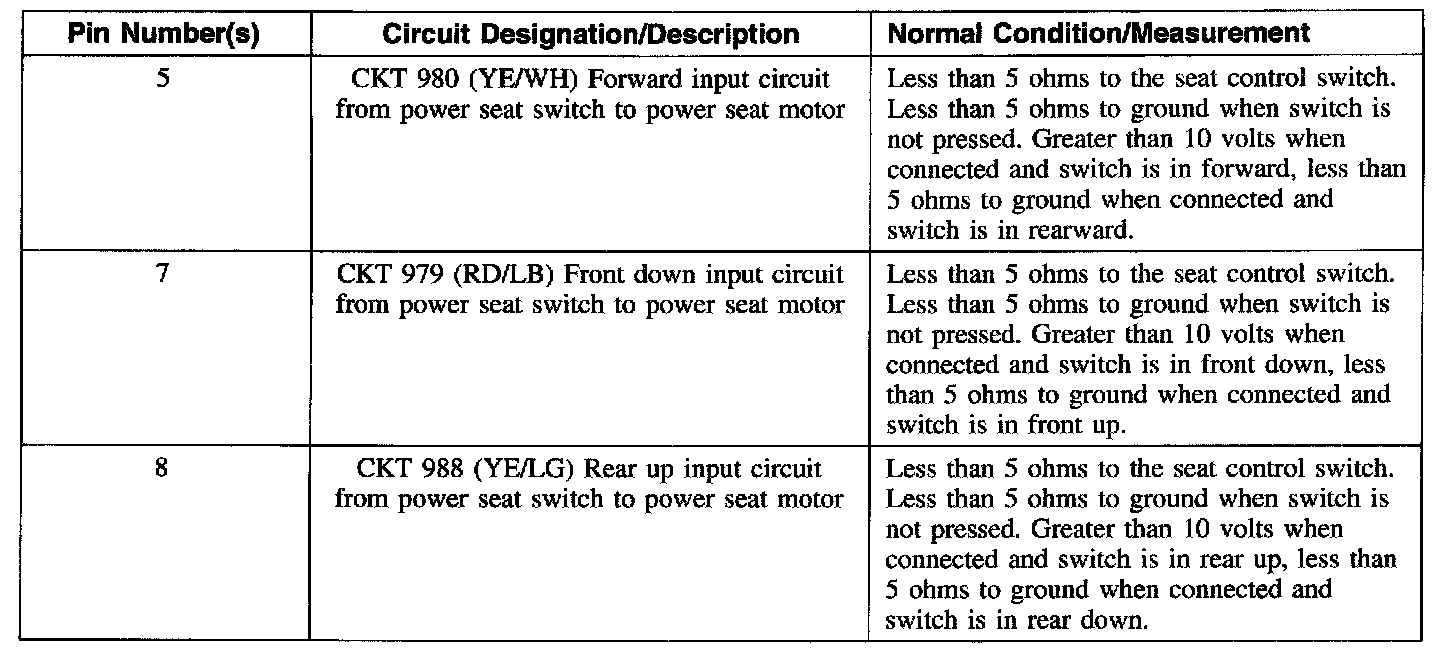

Driver Power Seat Motor C357, Part 2:
