Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit References >> Driver Power Seat Control Switch With Memory C3016

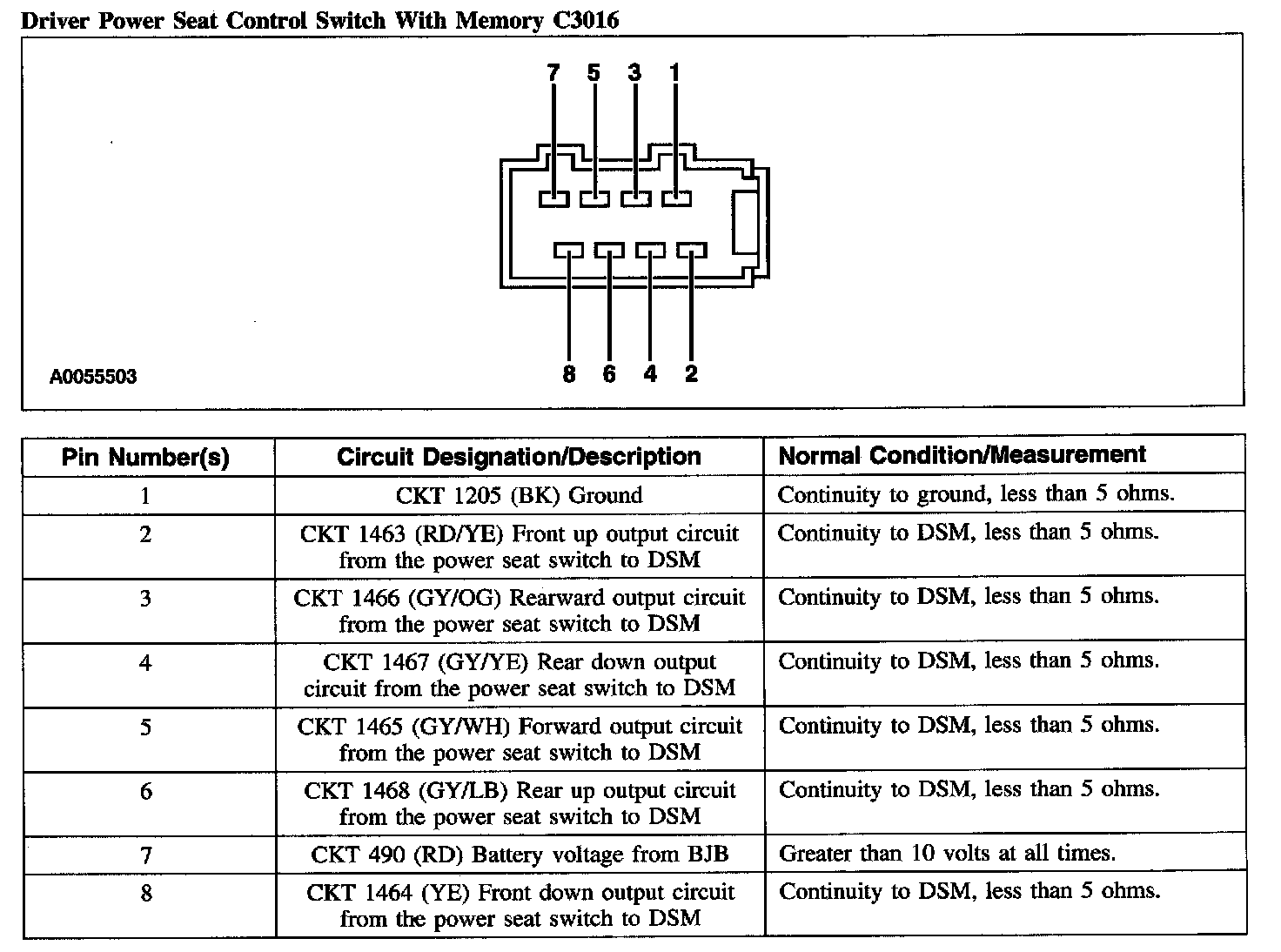

Driver Power Seat Control Switch With Memory C3016

Driver Power Seat Control Switch With Memory C3016:
