Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit References >> Driver Memory Set Switch C503

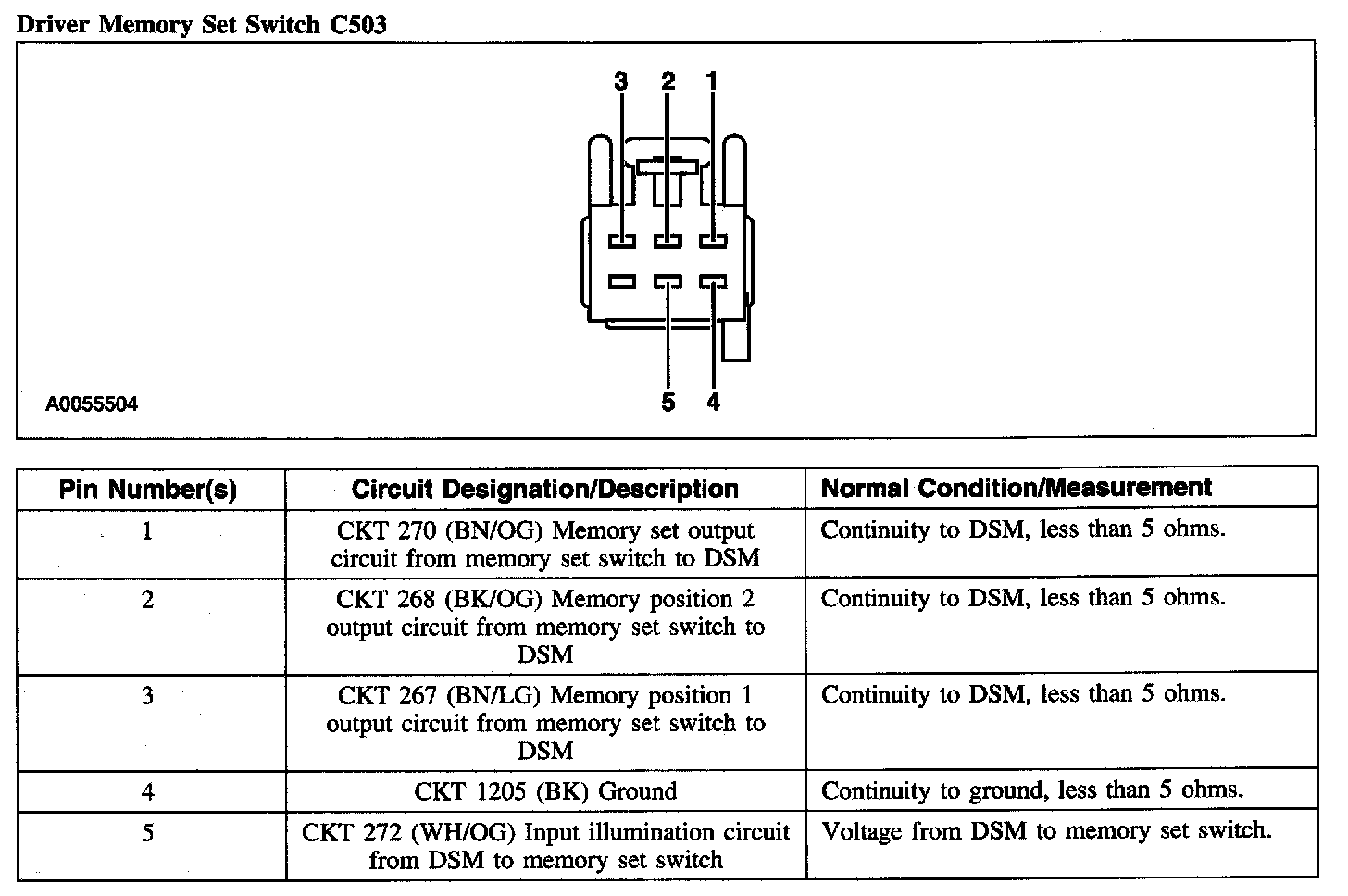

Driver Memory Set Switch C503

Driver Memory Set Switch C503:
