Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit References >> Driver Memory Seat Module C341f

Driver Memory Seat Module C341f

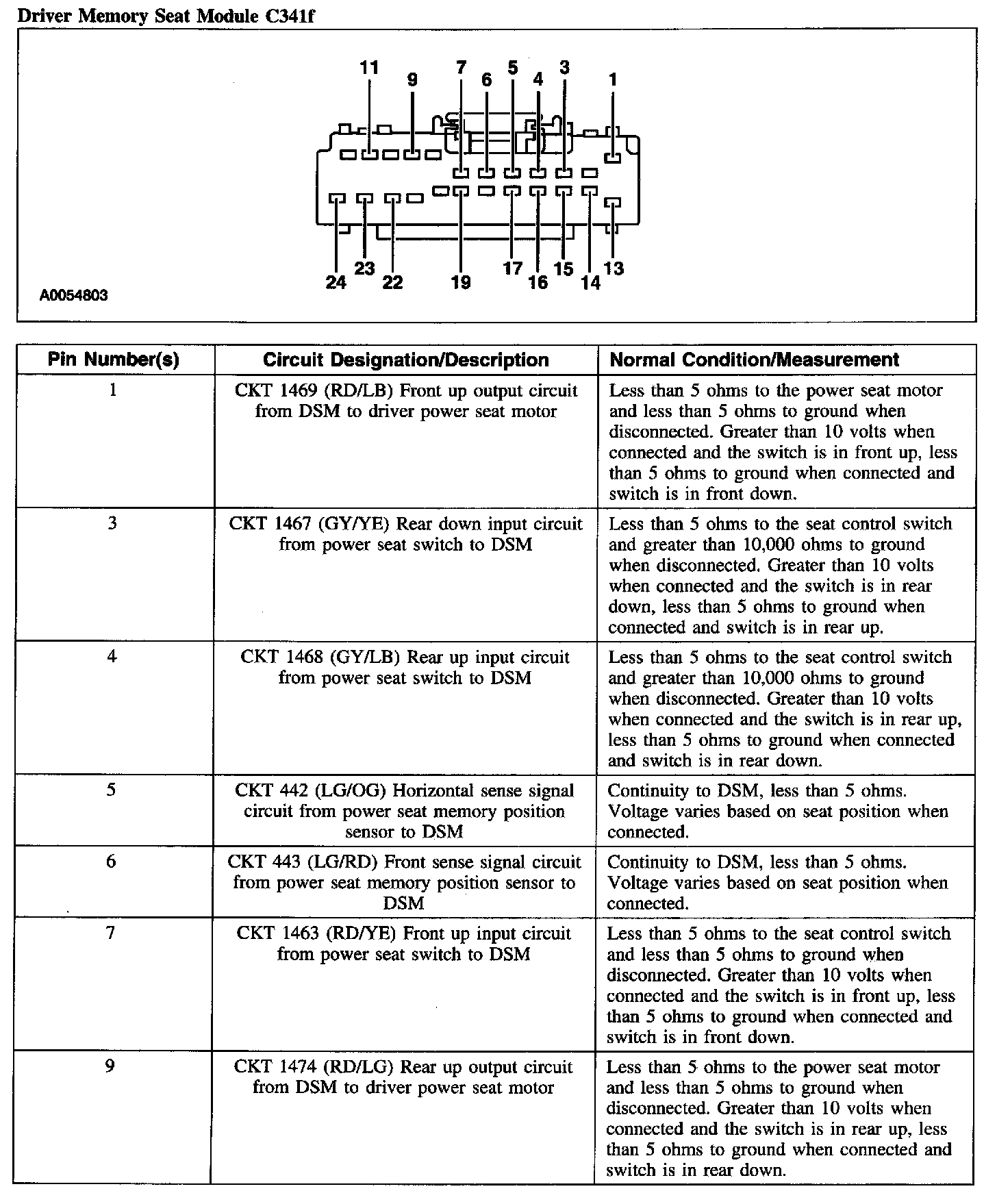

Driver Memory Seat Module C341f, Part 1:

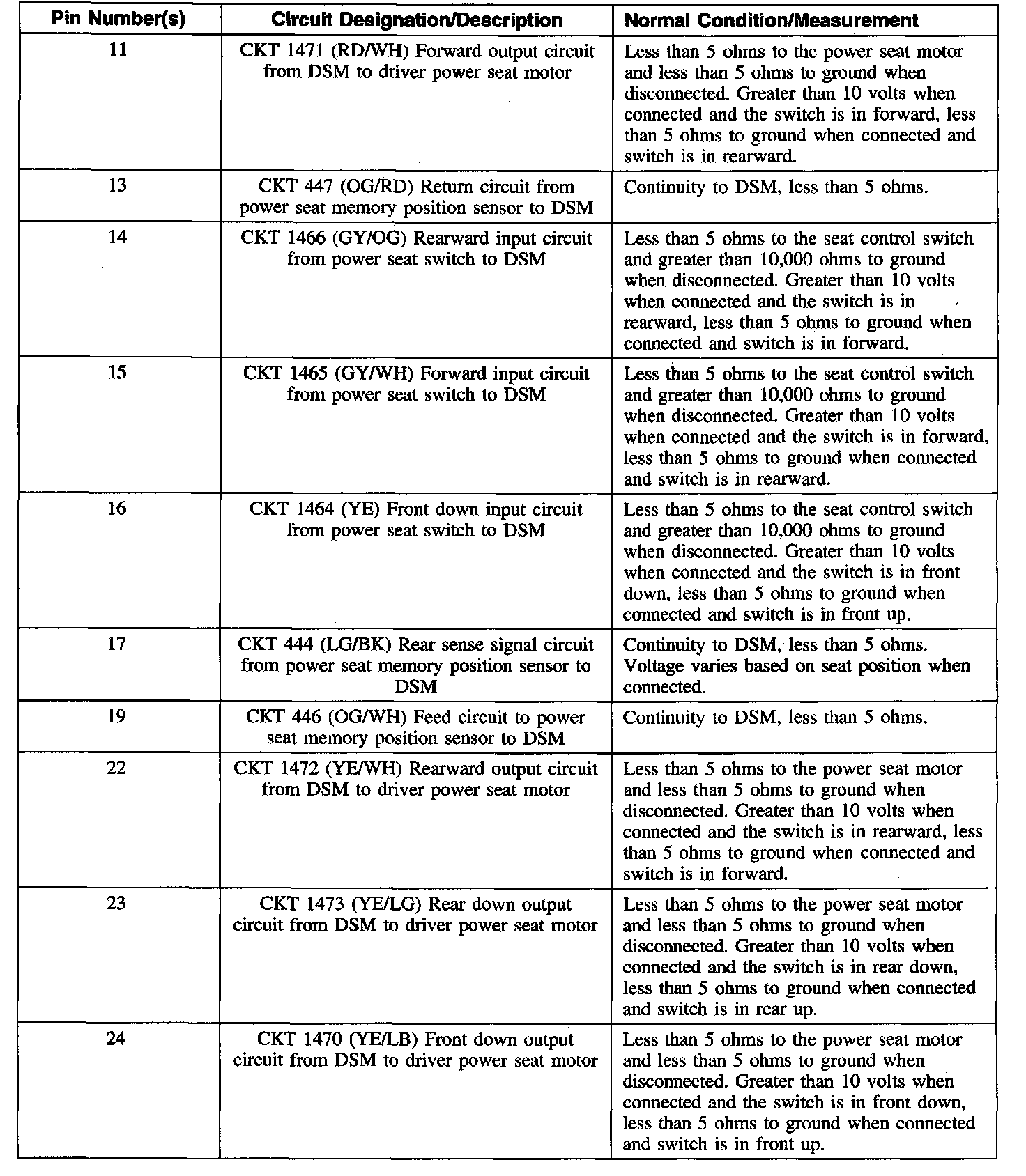

Driver Memory Seat Module C341f, Part 2:
