Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Vehicle Security Module C3008F

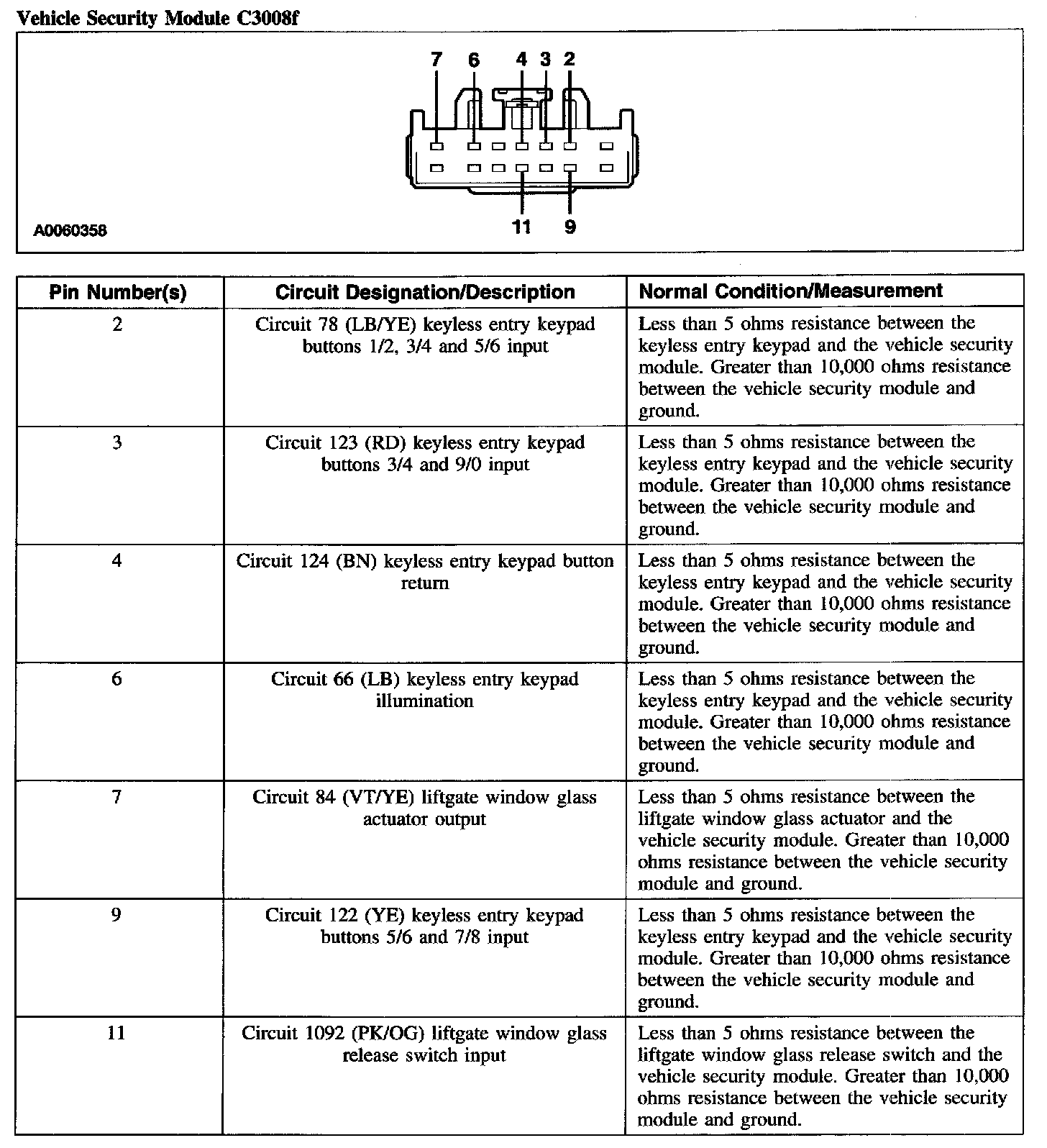

Vehicle Security Module C3008F

Vehicle Security Module C3008f:
