Vehicle Security Module C3008D

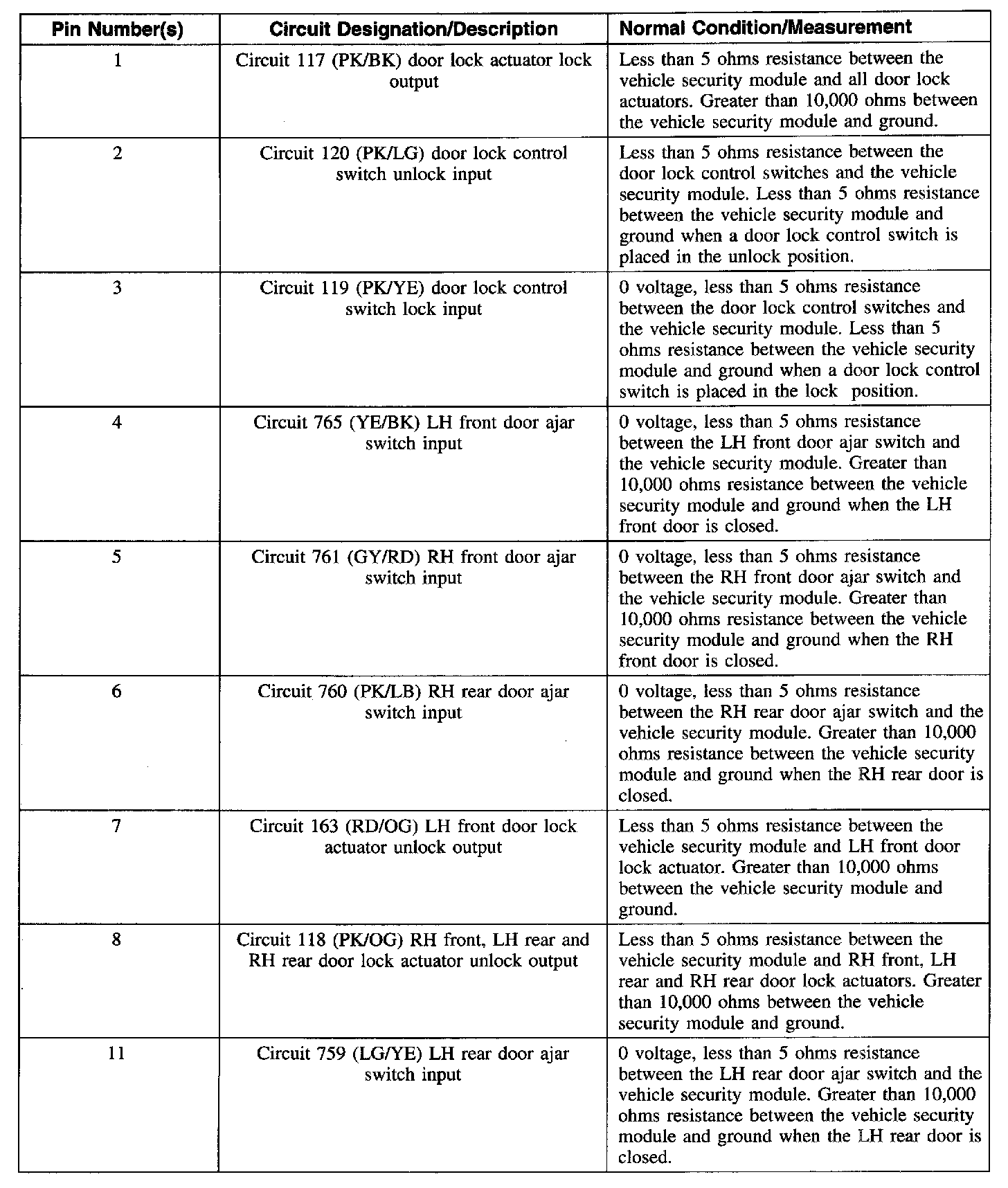

Vehicle Security Module C3008d, Part 1:

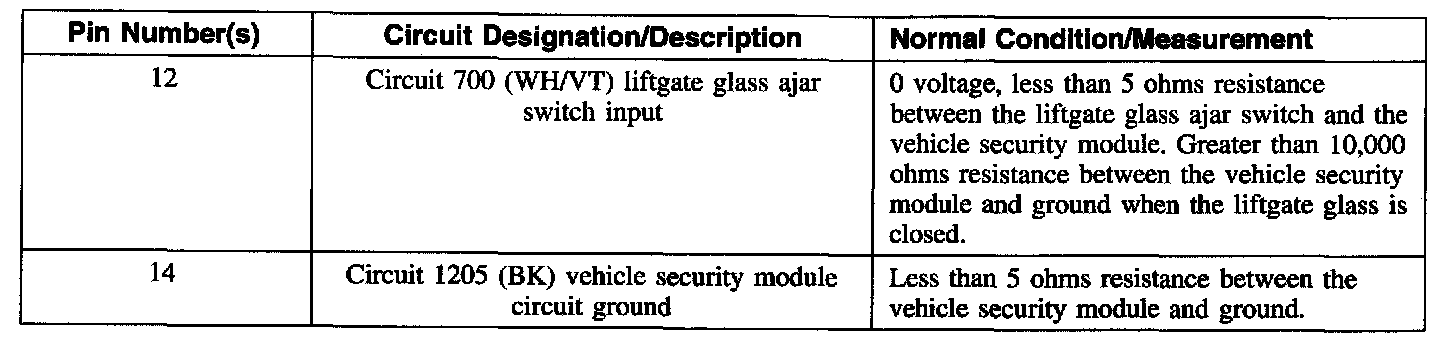

Vehicle Security Module C3008d, Part 2:

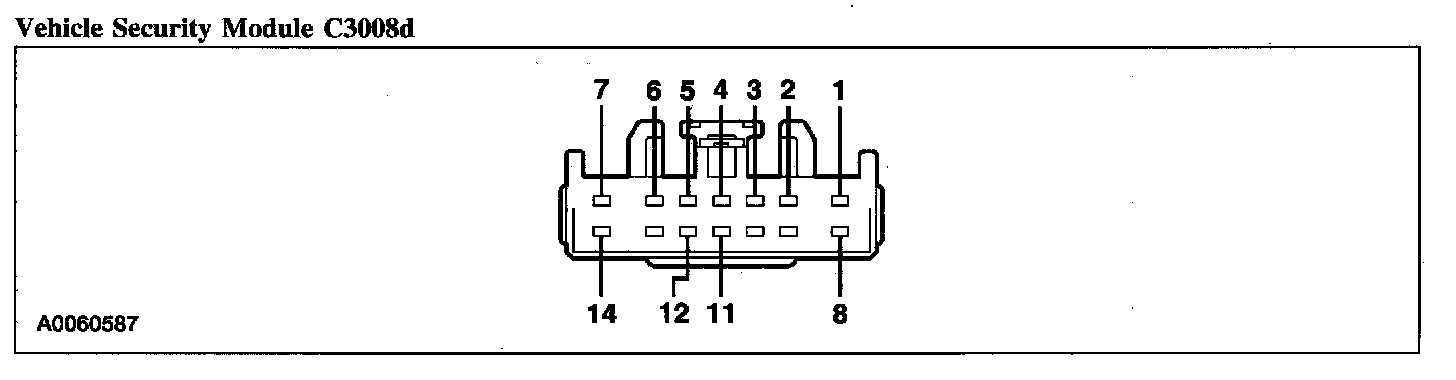

Vehicle Security Module C3008d, Part 3:
