Keyless Entry Key-Pad: Service and Repair
KEYLESS ENTRY KEYPADREMOVAL

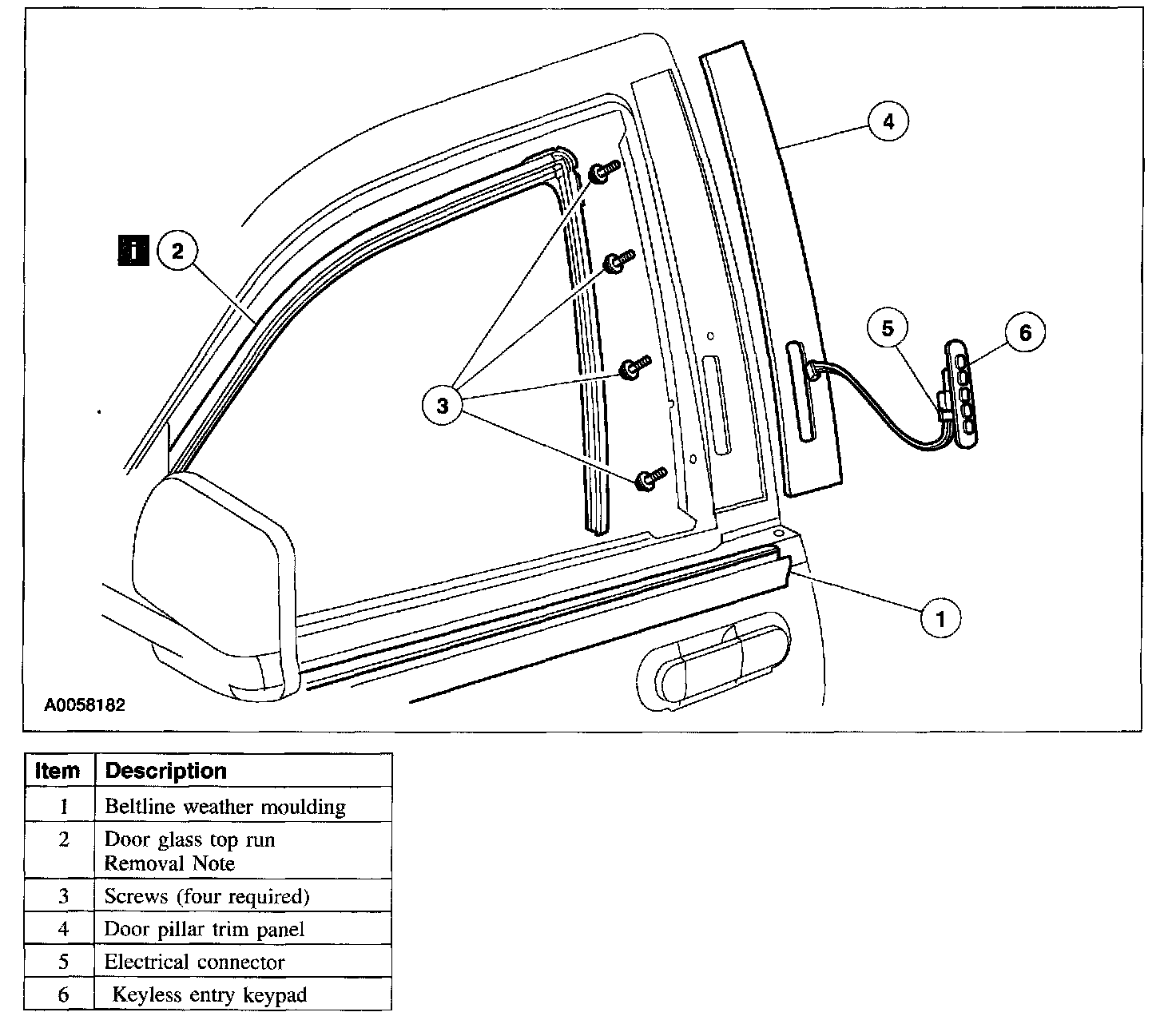

1. Remove the components in the order indicated in the illustration and table.
Item 2: Door Glass Top Run Removal Note
1. Position the door glass top run aside to access the door pillar trim panel screws.
INSTALLATION
1. To Install, reverse the removal procedure.
