Liftgate Trim Panel

LIFTGATE TRIM PANEL

REMOVAL

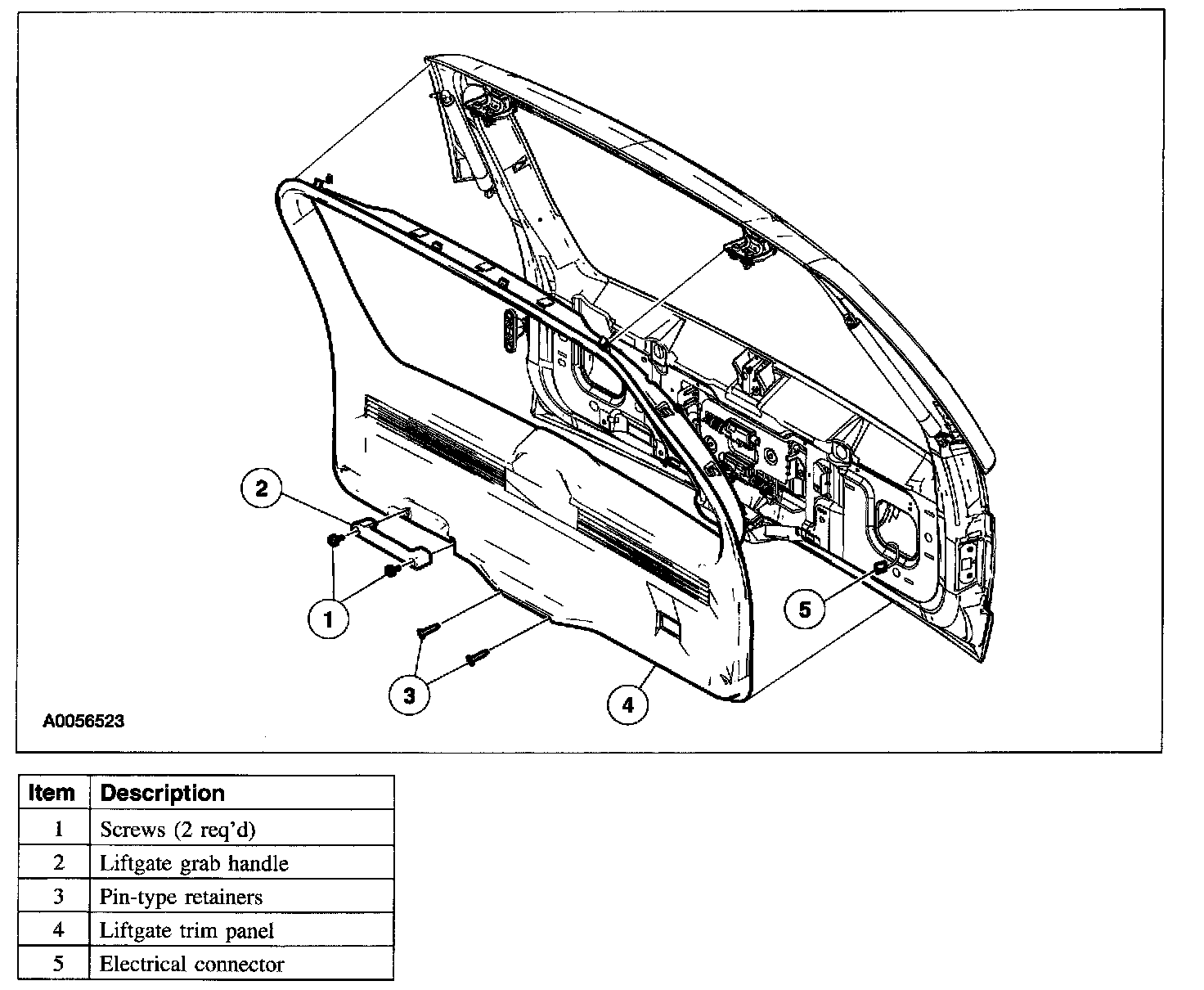

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
