Interior Trim Panel
INTERIOR TRIM PANELSTorx Bit, Safety Belt Bolt:

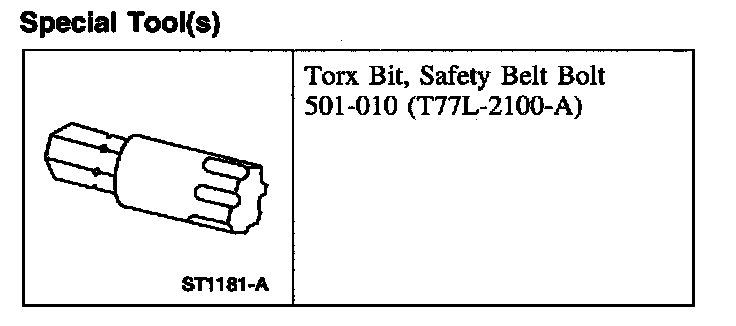

SPECIAL TOOL(S)
NOTE: RH side is shown. LH side is similar.
REMOVAL
Part 1:
Part 2:

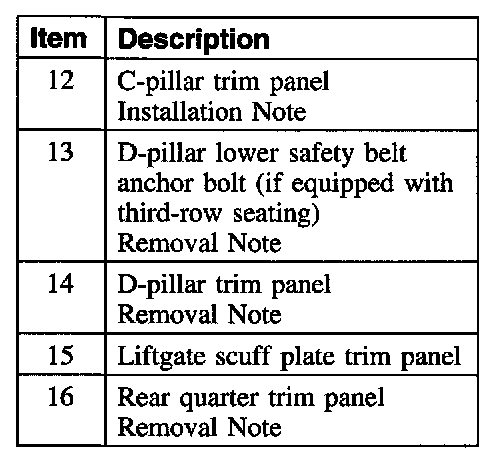

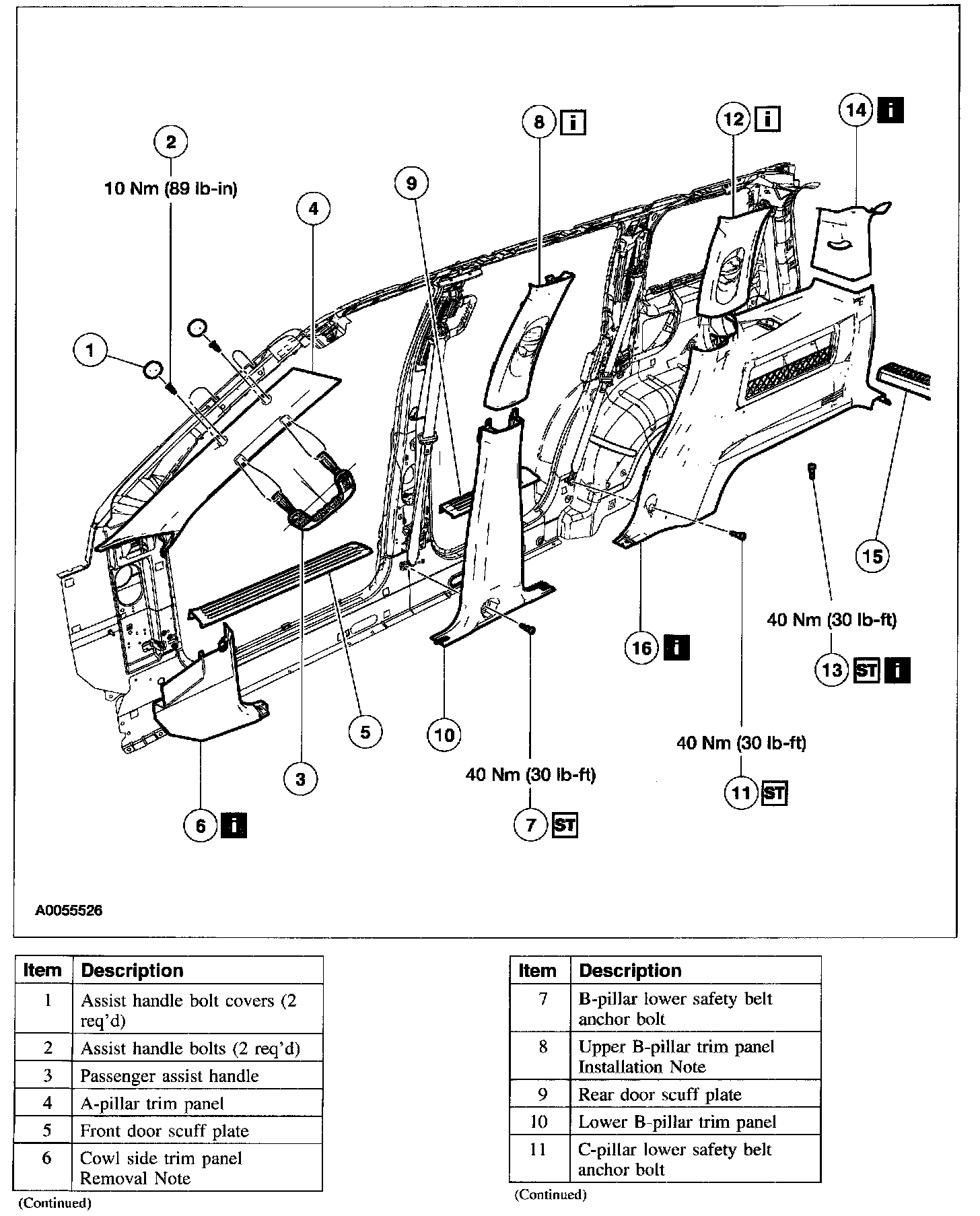

1. Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the listed steps.
Item 6: Cowl Side Trim Panel Removal Note

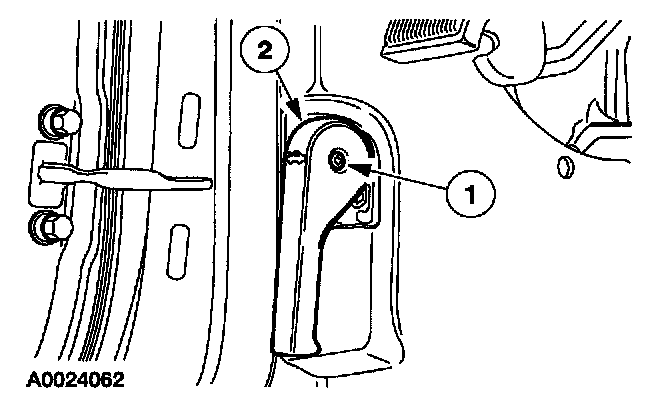

1. To remove the LH cowl side trim panel, remove the hood release lever.
1 Remove the screw.
2 Remove the hood release lever.

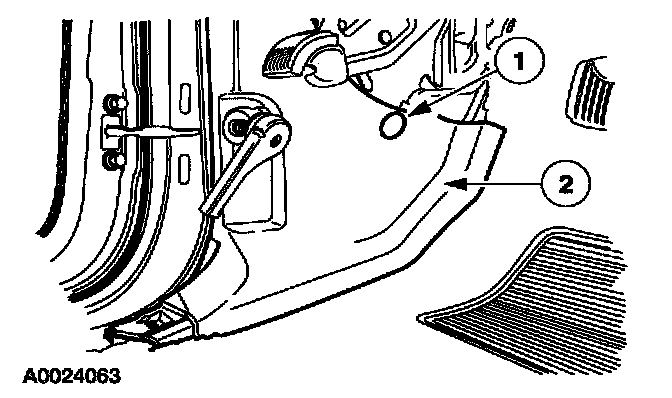

2. Remove the lower cowl trim panel.

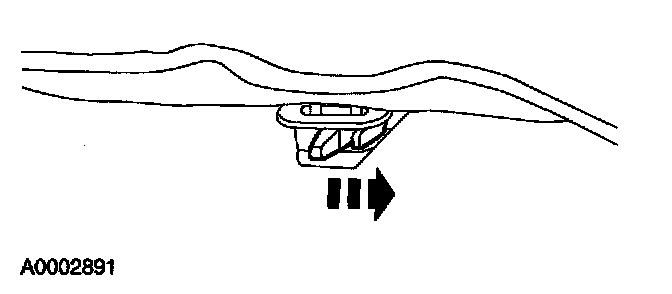

1 Remove the pin-type retainer.
2 Remove the lower cowl trim panel.
Item 13: D-Pillar Lower Safety Belt Anchor Bolt Removal Note
1. If equipped with third-row seating, release the two levers located at each lower outboard edge of the third row seat cushion to access the D-pillar lower safety belt anchor bolt.
Item 14: D-Pillar Trim Panel Removal Note

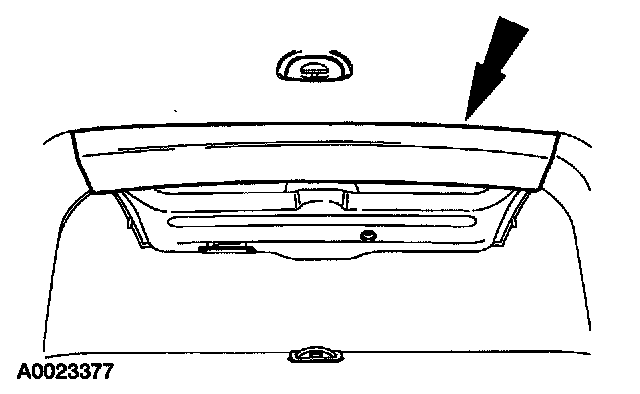

1. Remove the upper headliner trim panel.
Item 16: Rear Quarter Trim Panel Removal Note
1. If equipped with third-row seating, remove the third-row seat.
INSTALLATION
1. Install in the reverse order of removal.
Item 12: C-Pillar Trim Panel Installation Note
1. Be sure the hole on the back of the trim panel is seated over the upper safety belt anchor bolt.
Item 8: Upper B-Pillar Trim Panel Installation Note
1. Be sure the hole on the back of the trim panel is seated over the upper safety belt anchor bolt.
