Trunk / Liftgate Handle: Service and Repair

LIFTGATE RELEASE HANDLE

REMOVAL
1. Remove the liftgate trim panel.
2. Position the watershield aside.







3. To remove individual components, only carry out the listed steps.

Part 1:

Part 2:

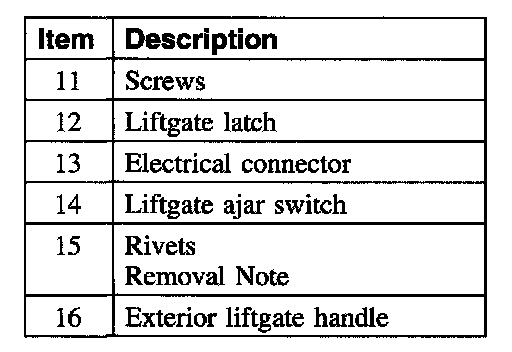

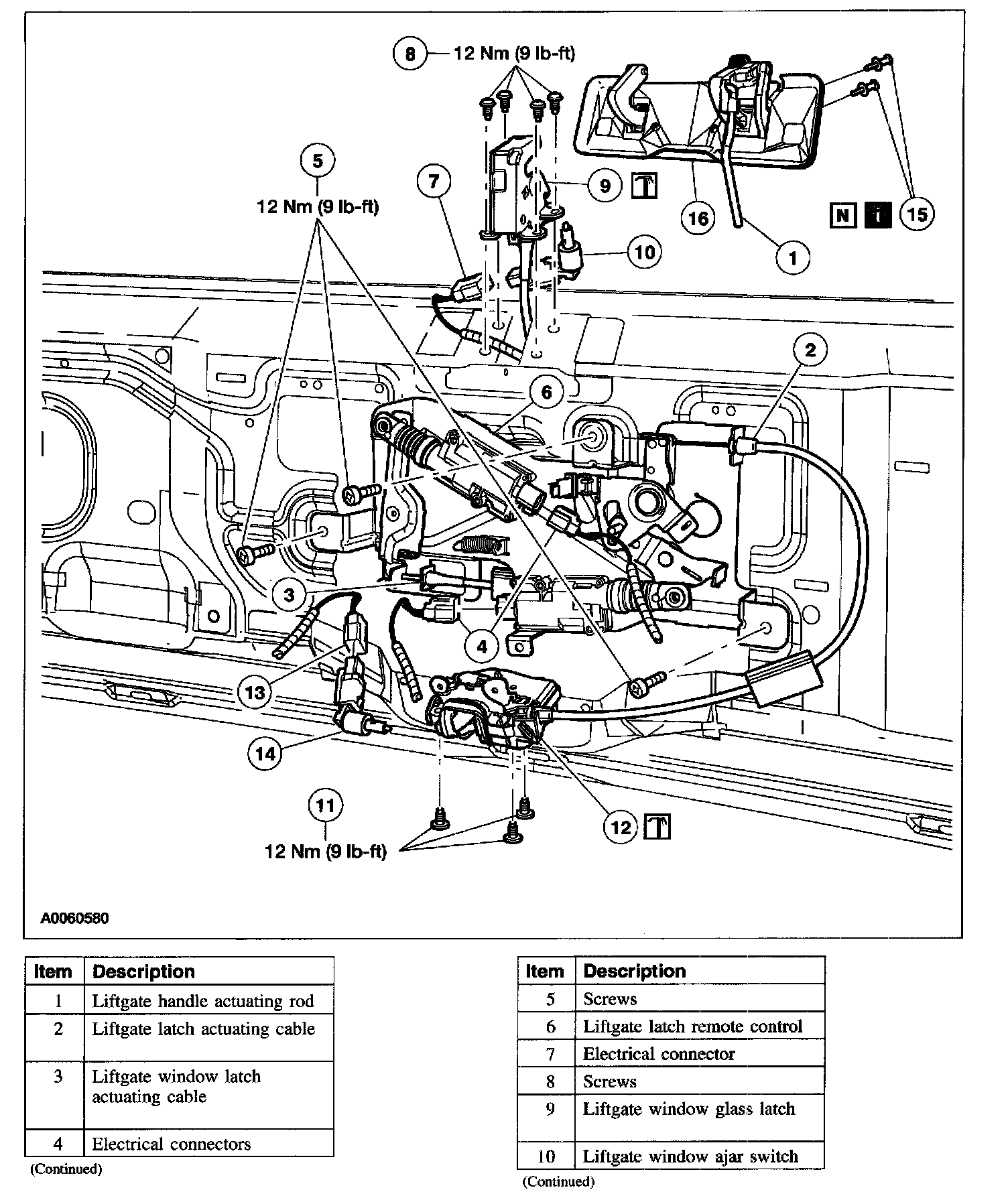

4. Remove the components in the order indicated in the illustration and table.

Item 15: Rivet Removal Note

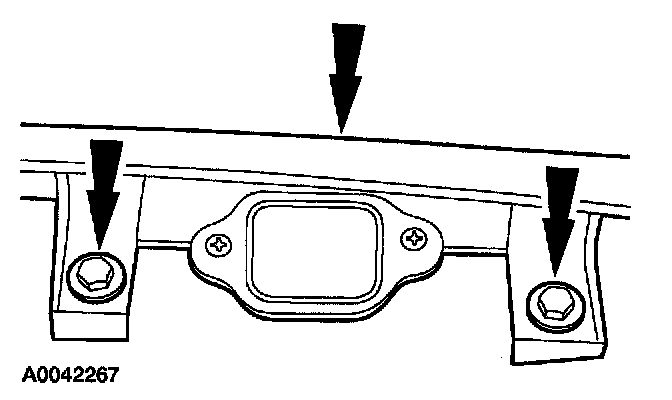

1. Remove the four bolts and the license plate lamp shield.
2. Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
