Hood Latch: Service and Repair

HOOD LATCH

REMOVAL

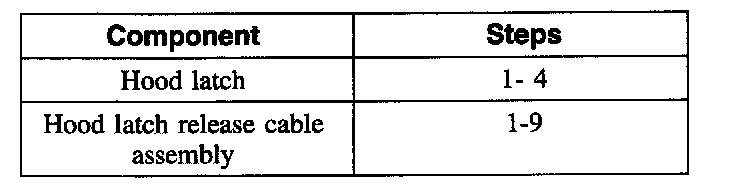

1. To remove the individual components, only carry out the listed steps.

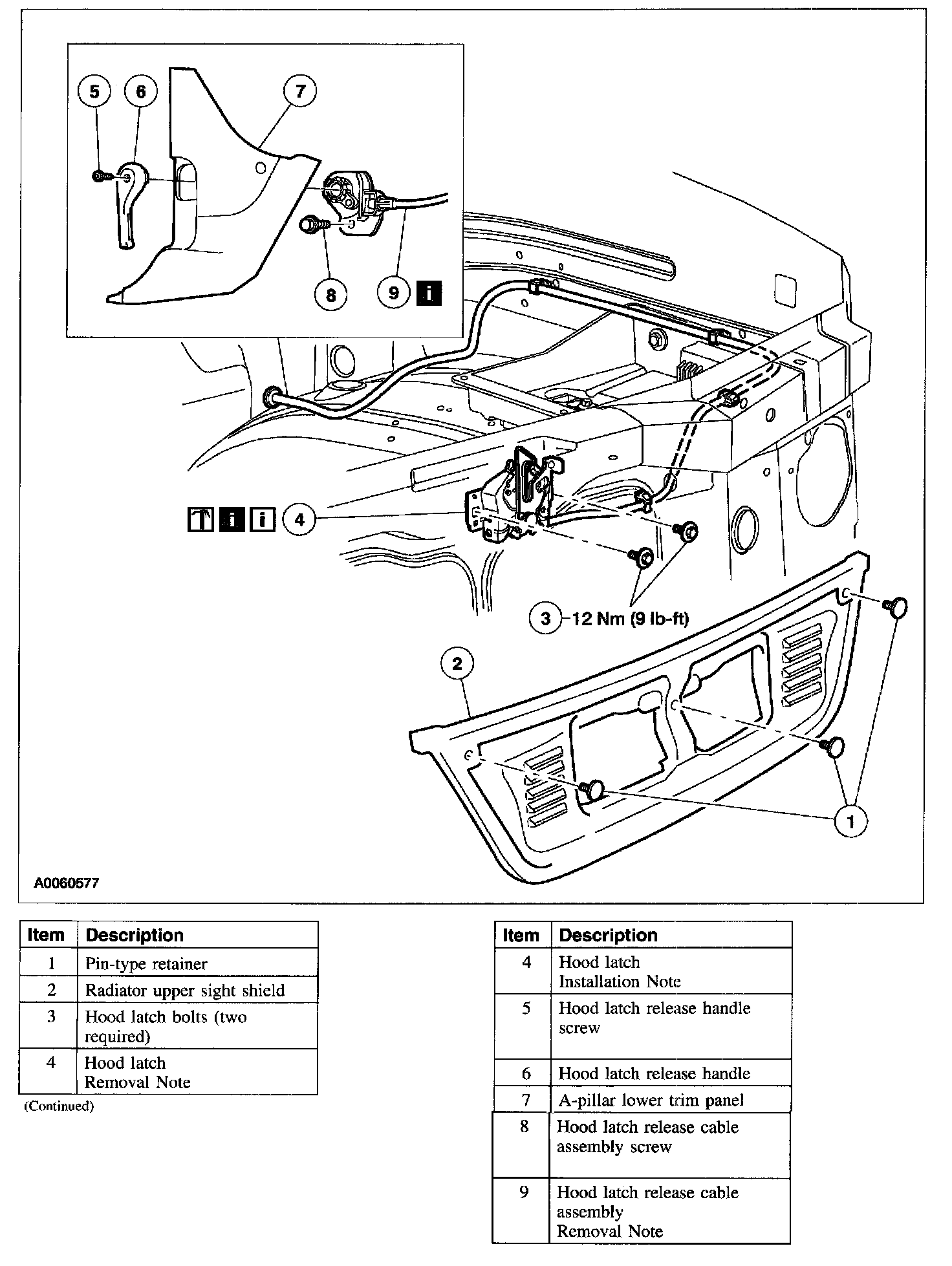

2. Remove the components in the order indicated in the illustration and table.

Item 4: Hood Latch Removal Note
1. Disconnect the hood latch release cable.

Item 9: Hood Latch Release Cable Assembly Removal Note
1. Release the cable locators.

INSTALLATION
1. To install, reverse the removal procedure.

Item 4: Hood Latch Installation Note
1. When the hood latch is installed, the latch adjustment must be checked to make sure the latch was installed and aligned correctly.
