Auxiliary Step / Running Board: Service and Repair

RUNNING BOARD

NOTE: Explorer is shown, Mountaineer is similar.

REMOVAL

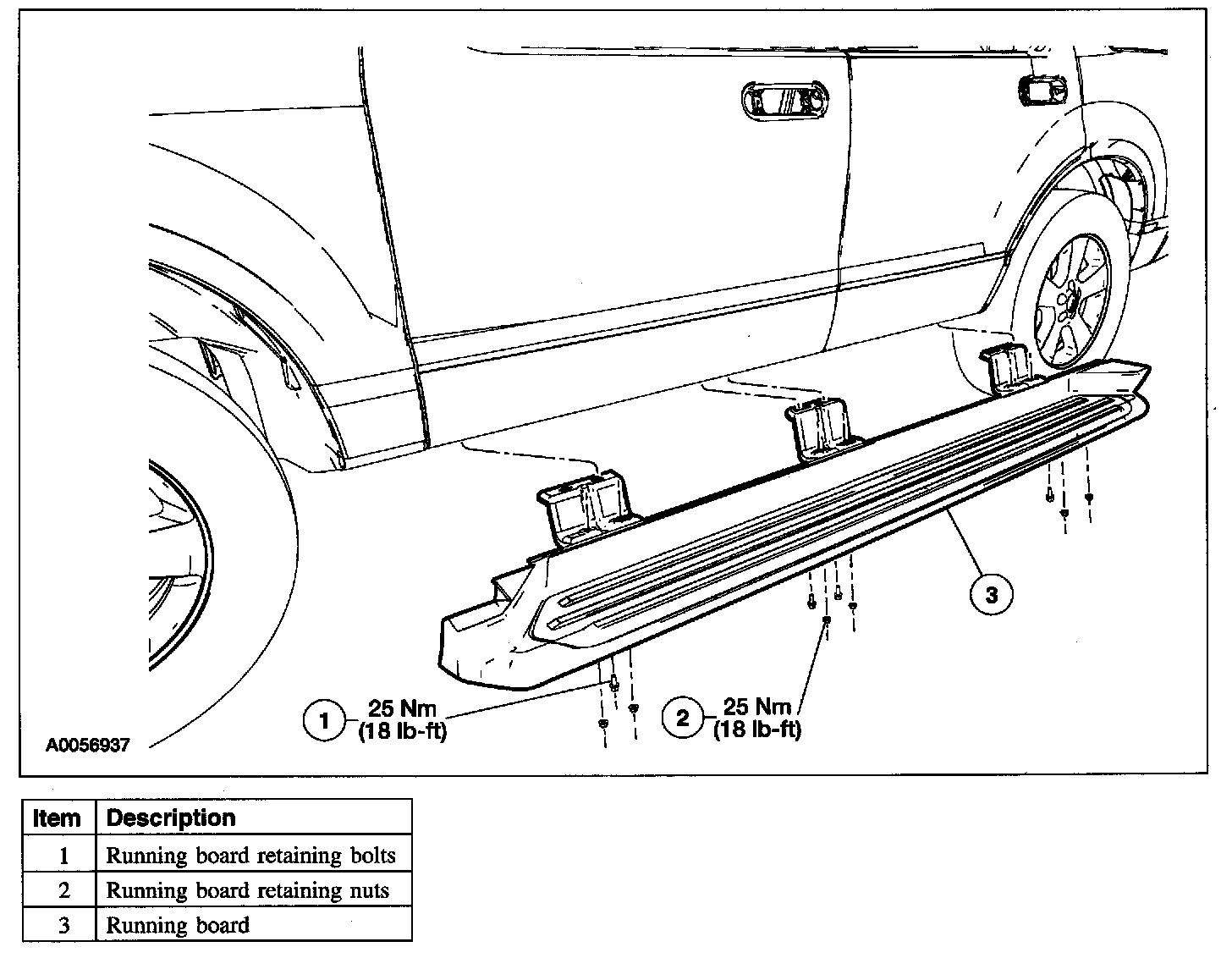

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
2. To install, reverse the removal procedure.
