Home >> Ford Truck >> 2003 >> Explorer AWD V6-4.0L VIN E >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Parking Aid Switch C2035

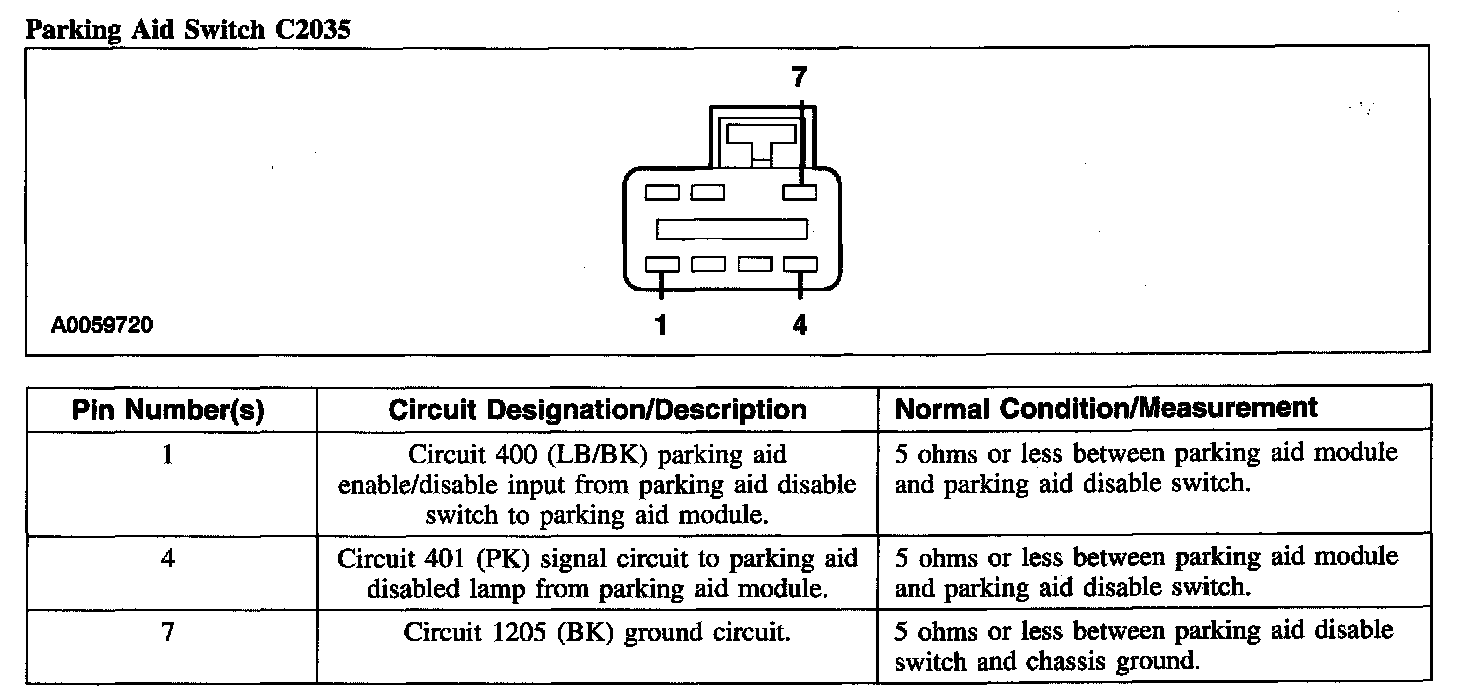

Parking Aid Switch C2035

Parking Aid Switch C2035:
