Home >> Ford Truck >> 2003 >> Explorer 4WD V8-4.6L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> System Diagram >> Diagnostic Connector Views >> 4WD Control Module C281A

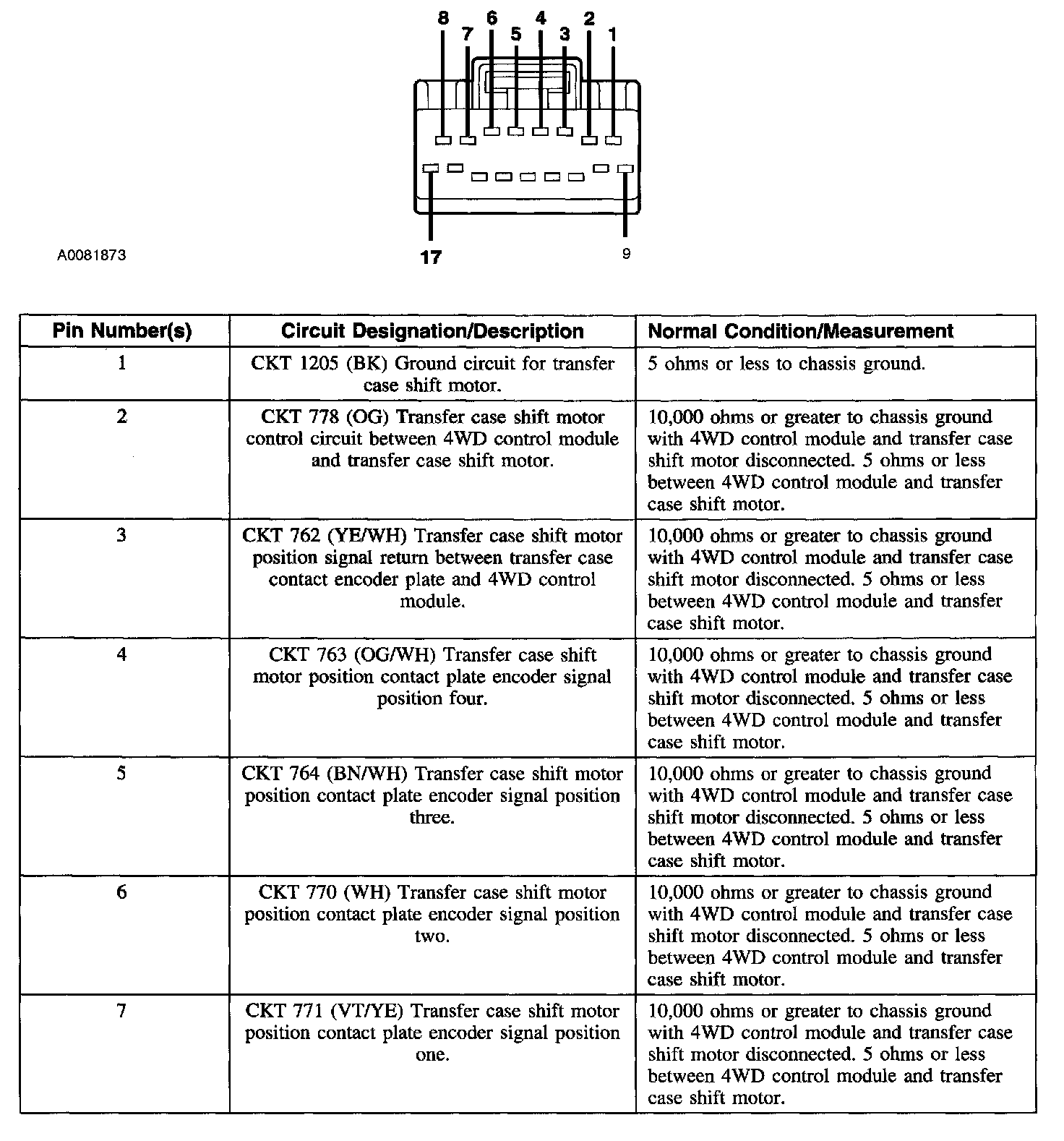

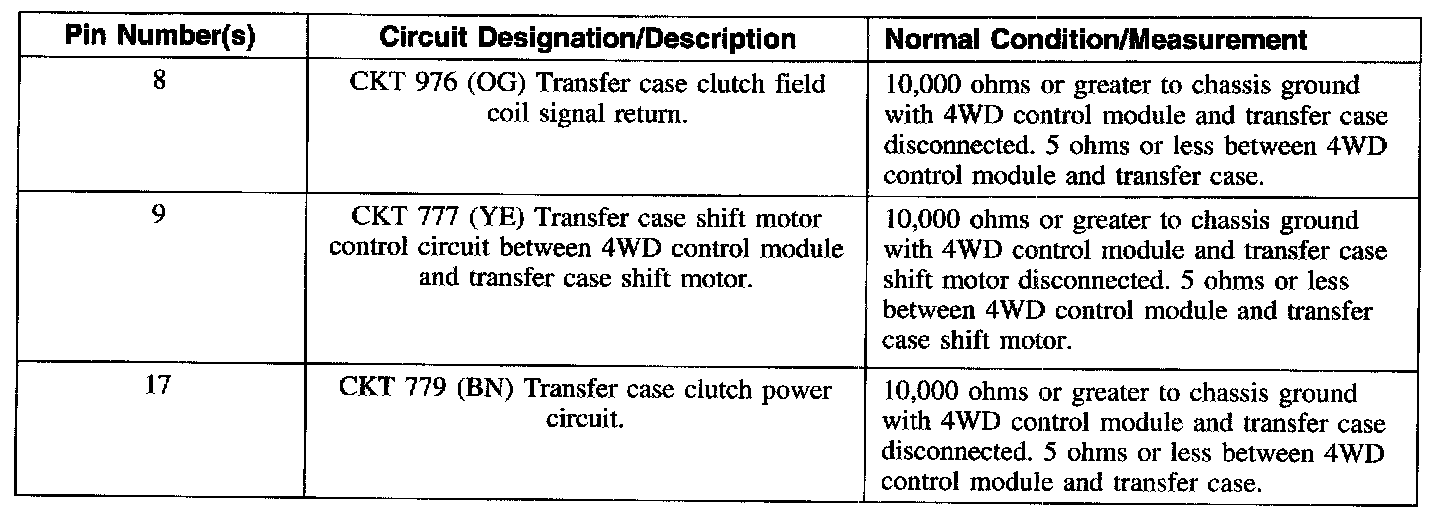

4WD Control Module C281A





4WD Control Module C281a
