Tests KA






PINPOINT TEST KA: TURBO CHARGER SYSTEM PERFORMANCE

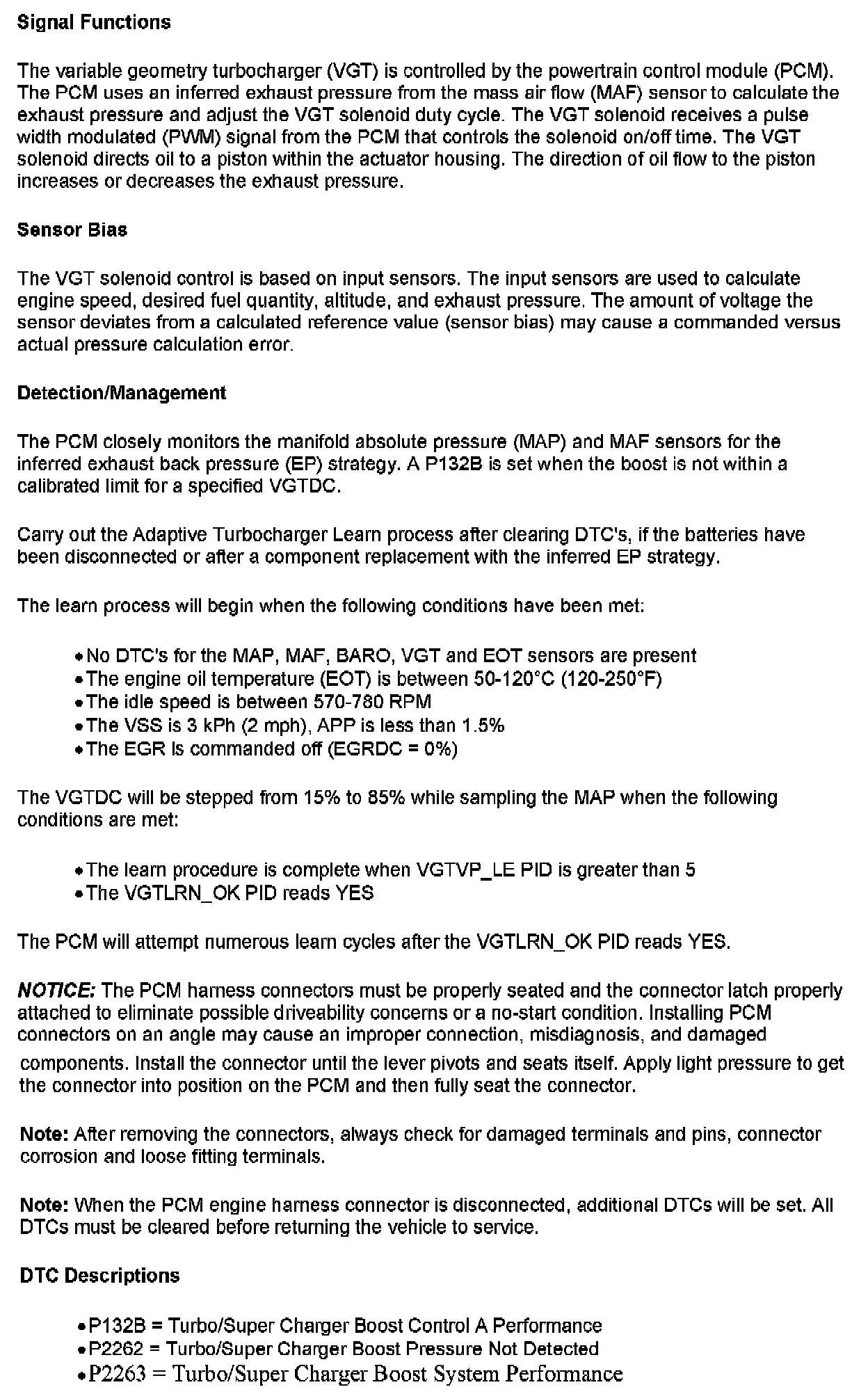

Introduction:

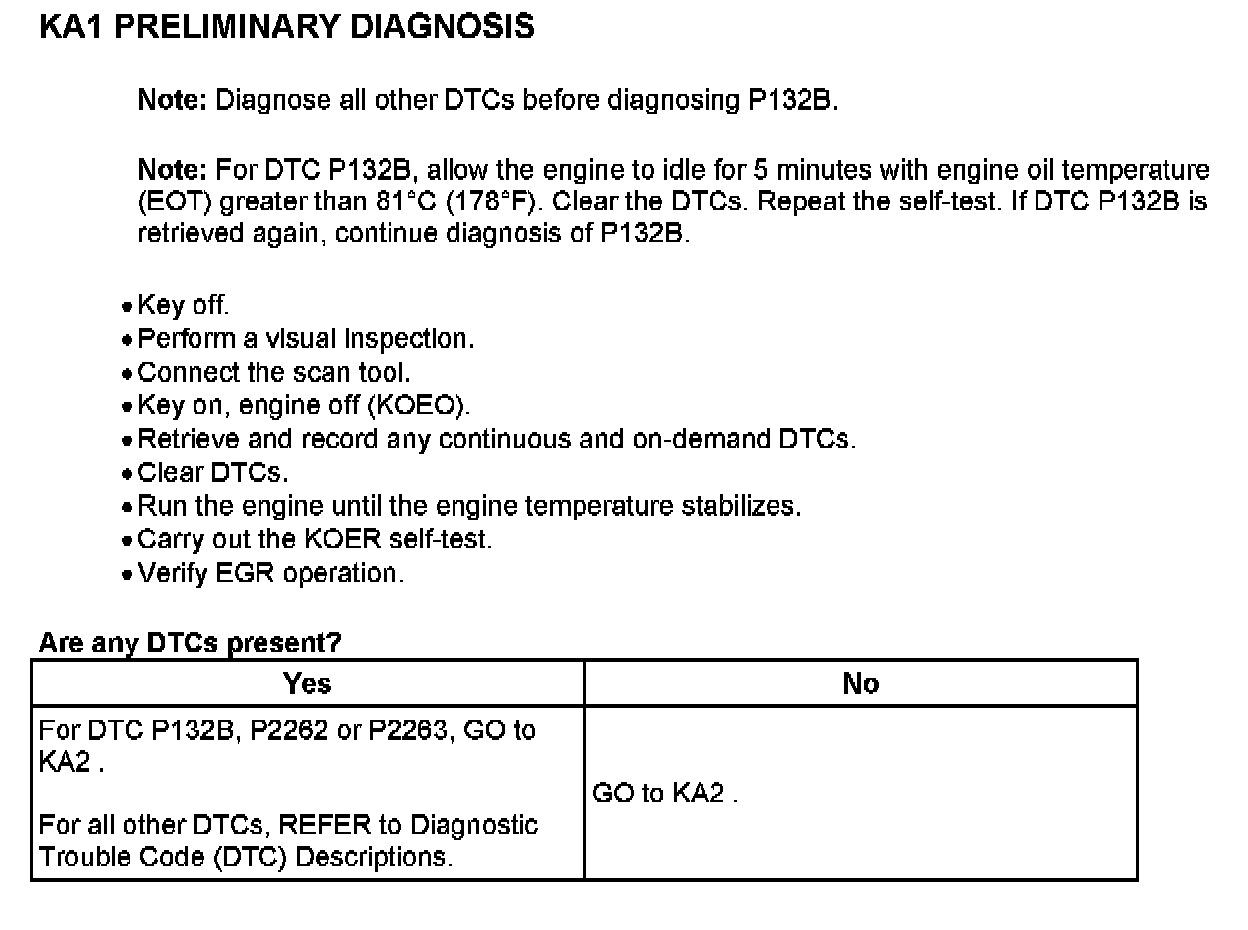

KA1:

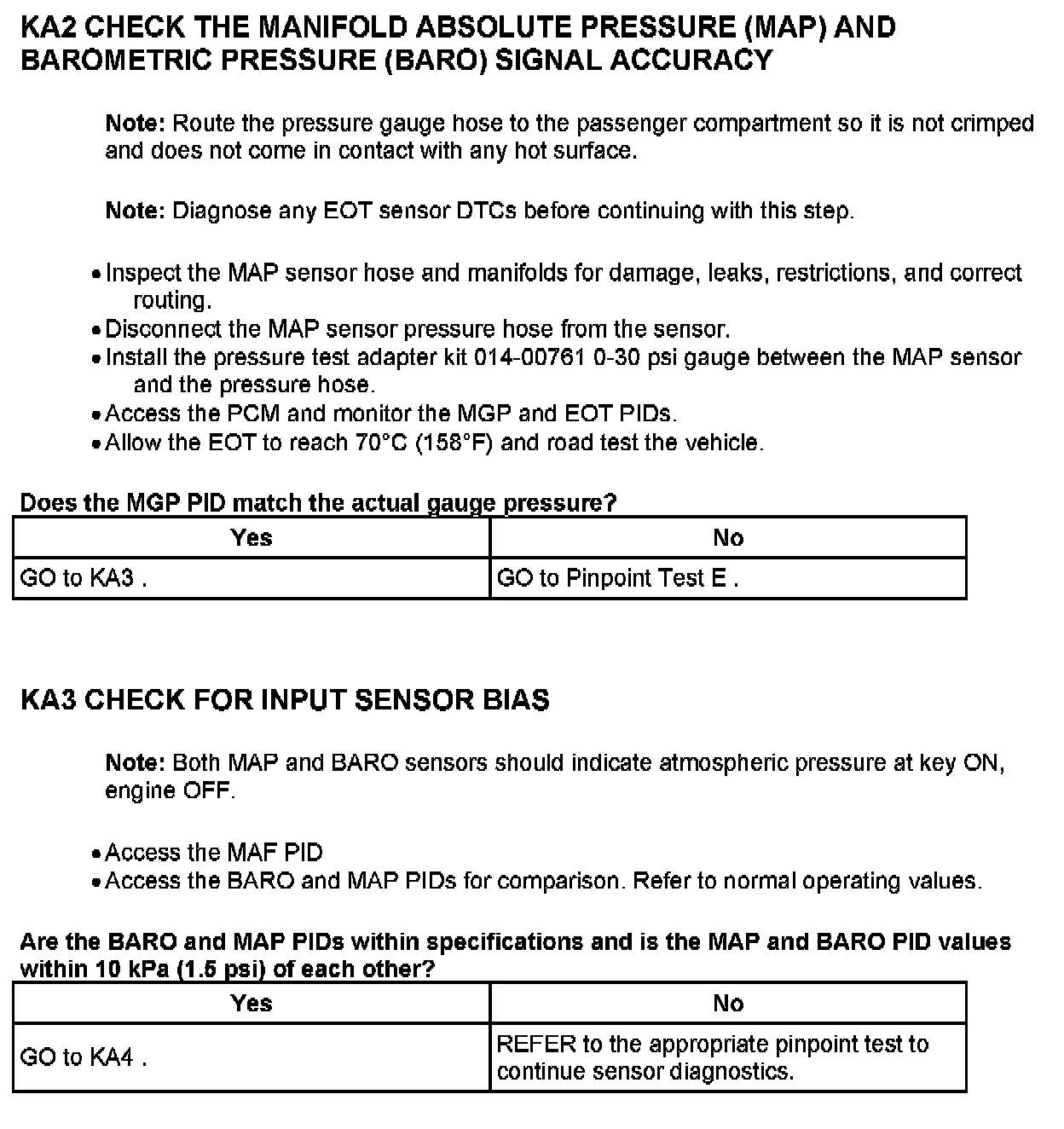

KA2 - KA3:

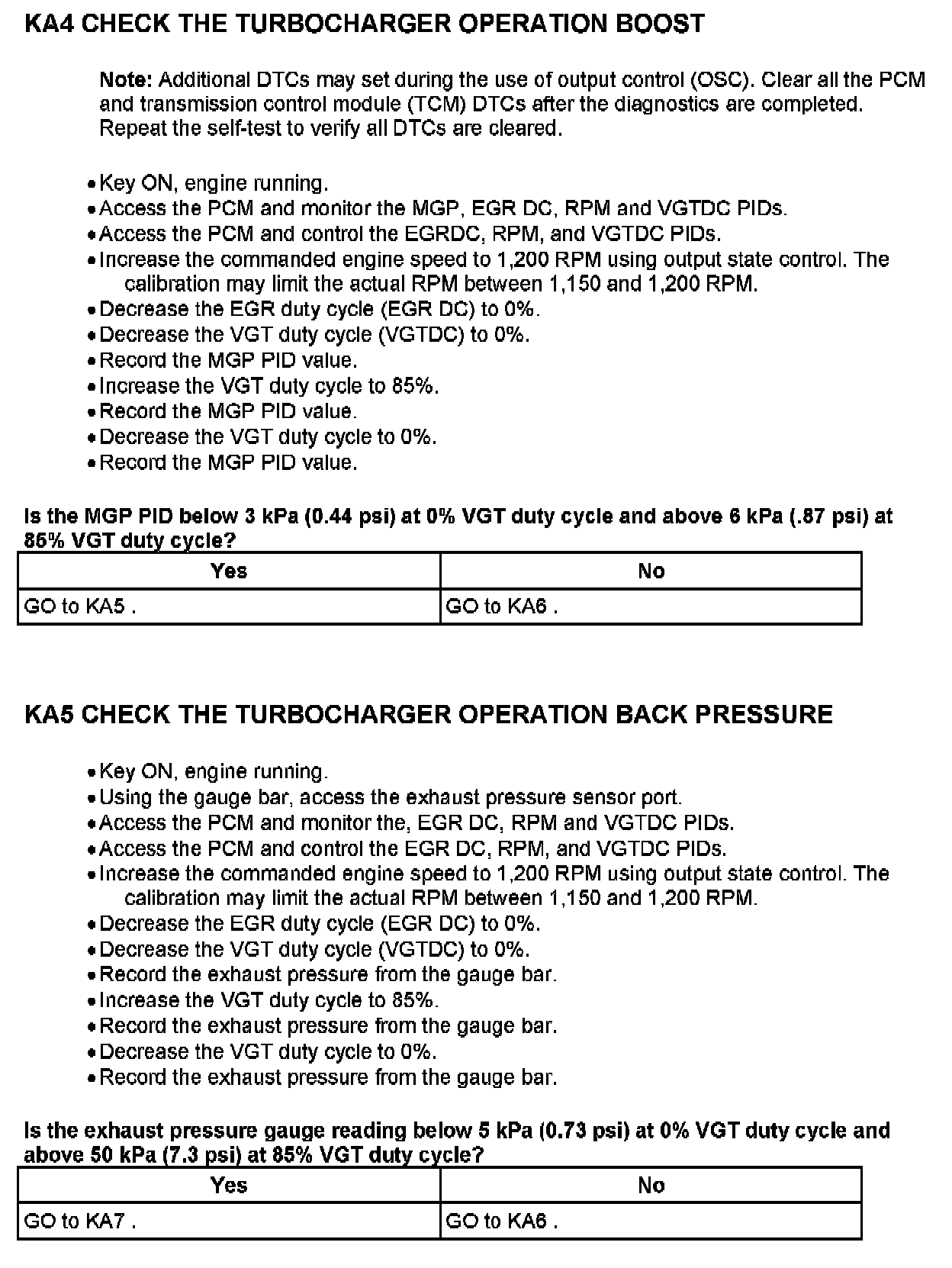

KA4 - KA5:

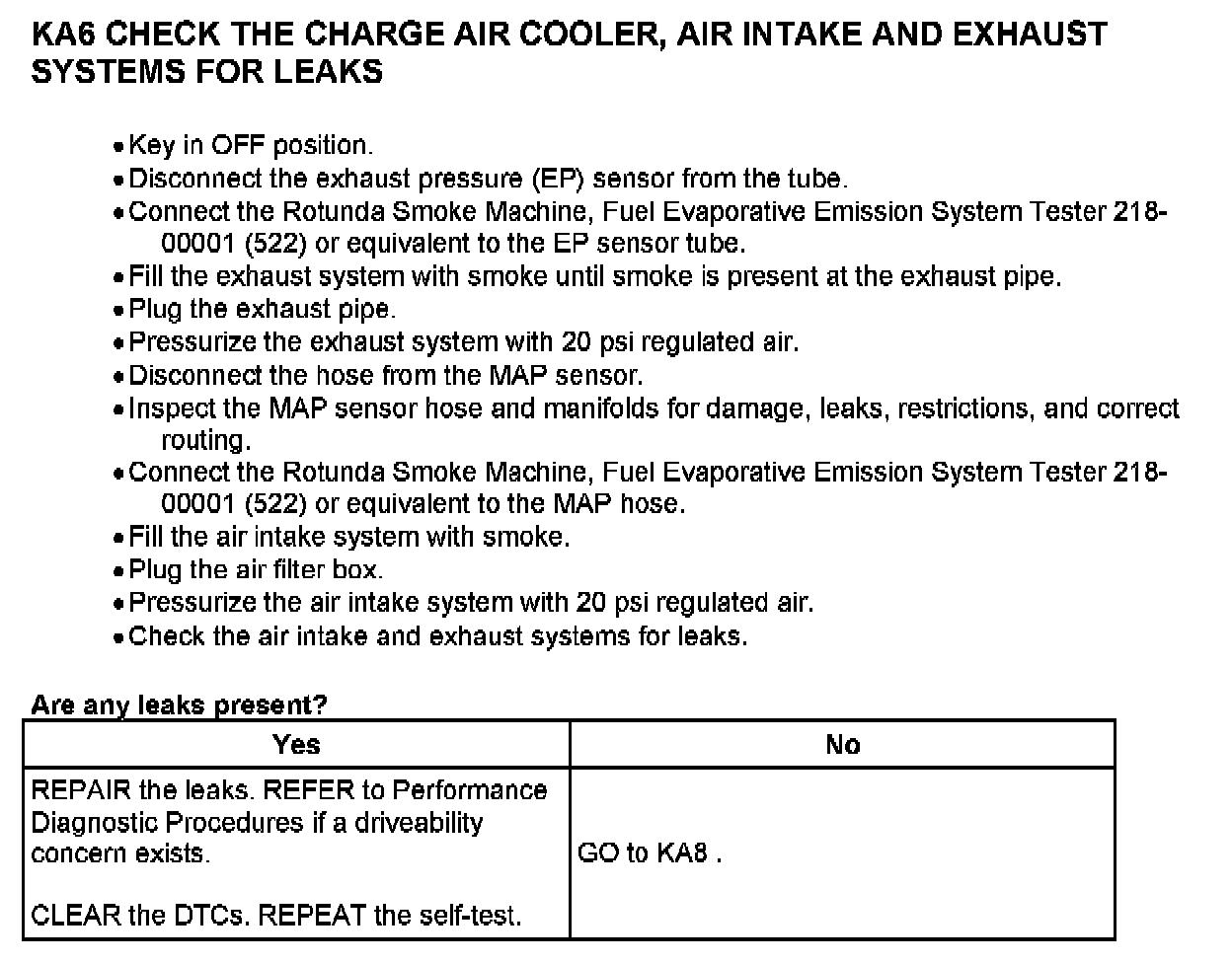

KA6:

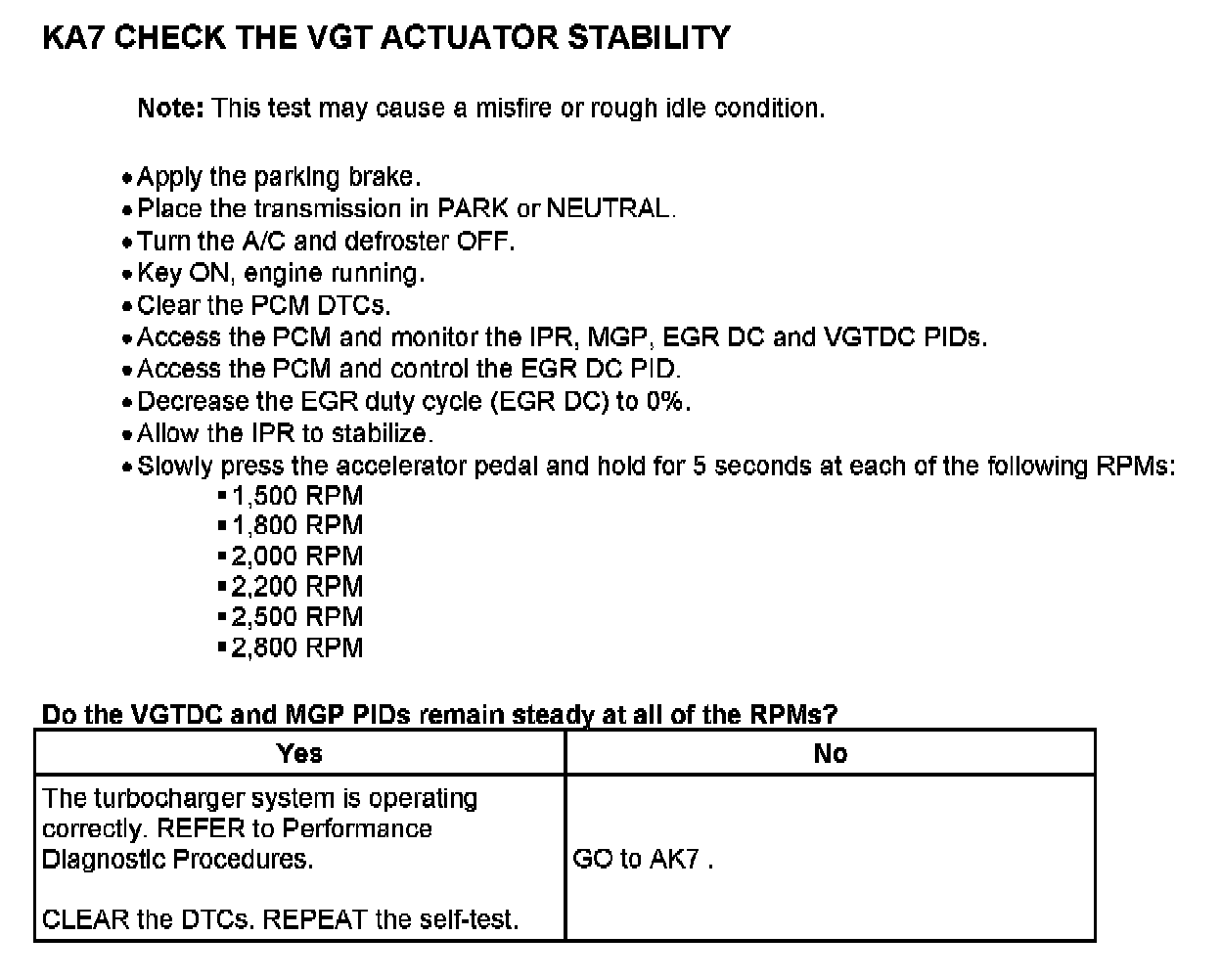

KA7:

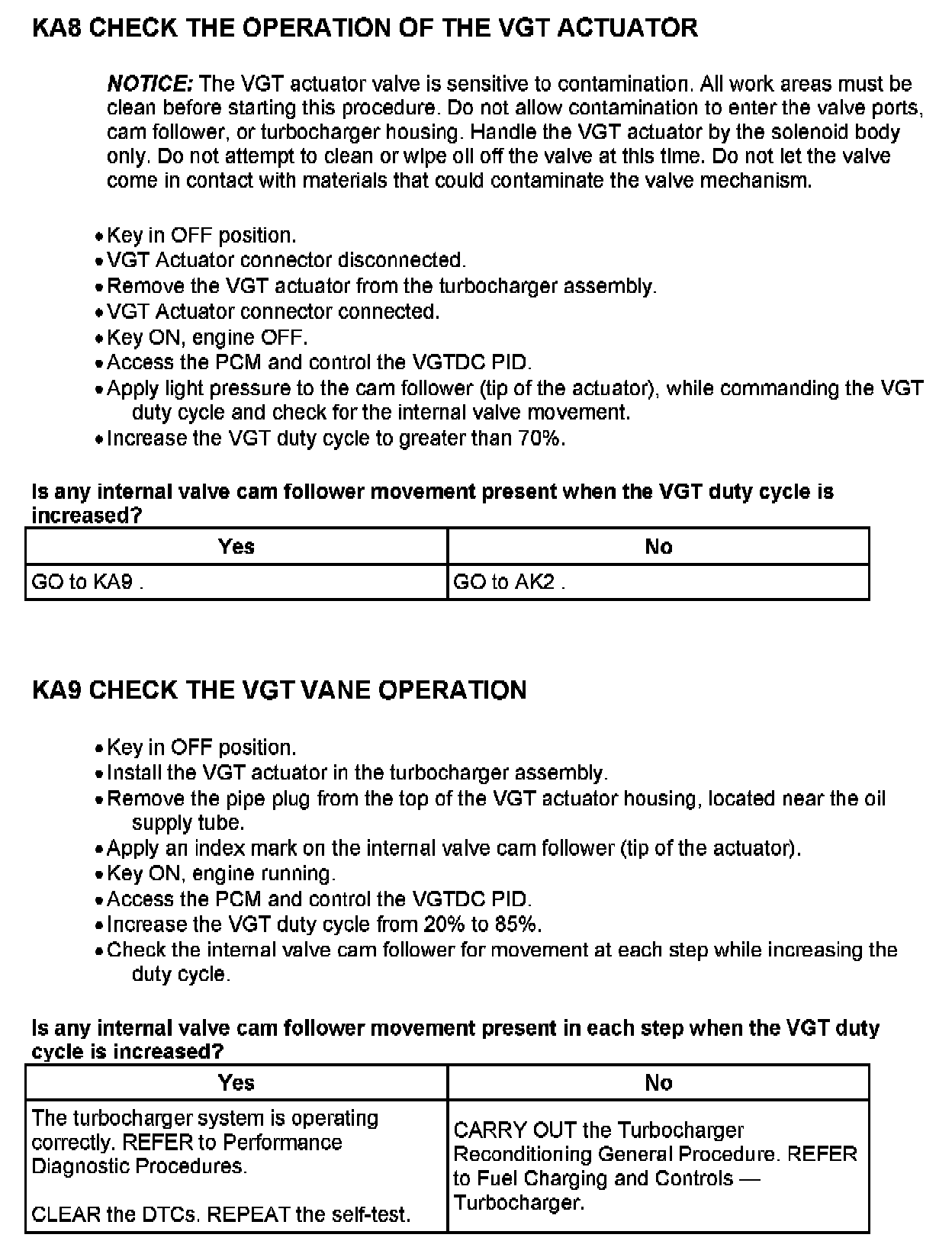

KA8 - KA9:
