Home >> Ford Truck >> 2003 >> Excursion 4WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests AR

Tests AR

PINPOINT TEST AR: RANDOM MISFIRE DETECTED

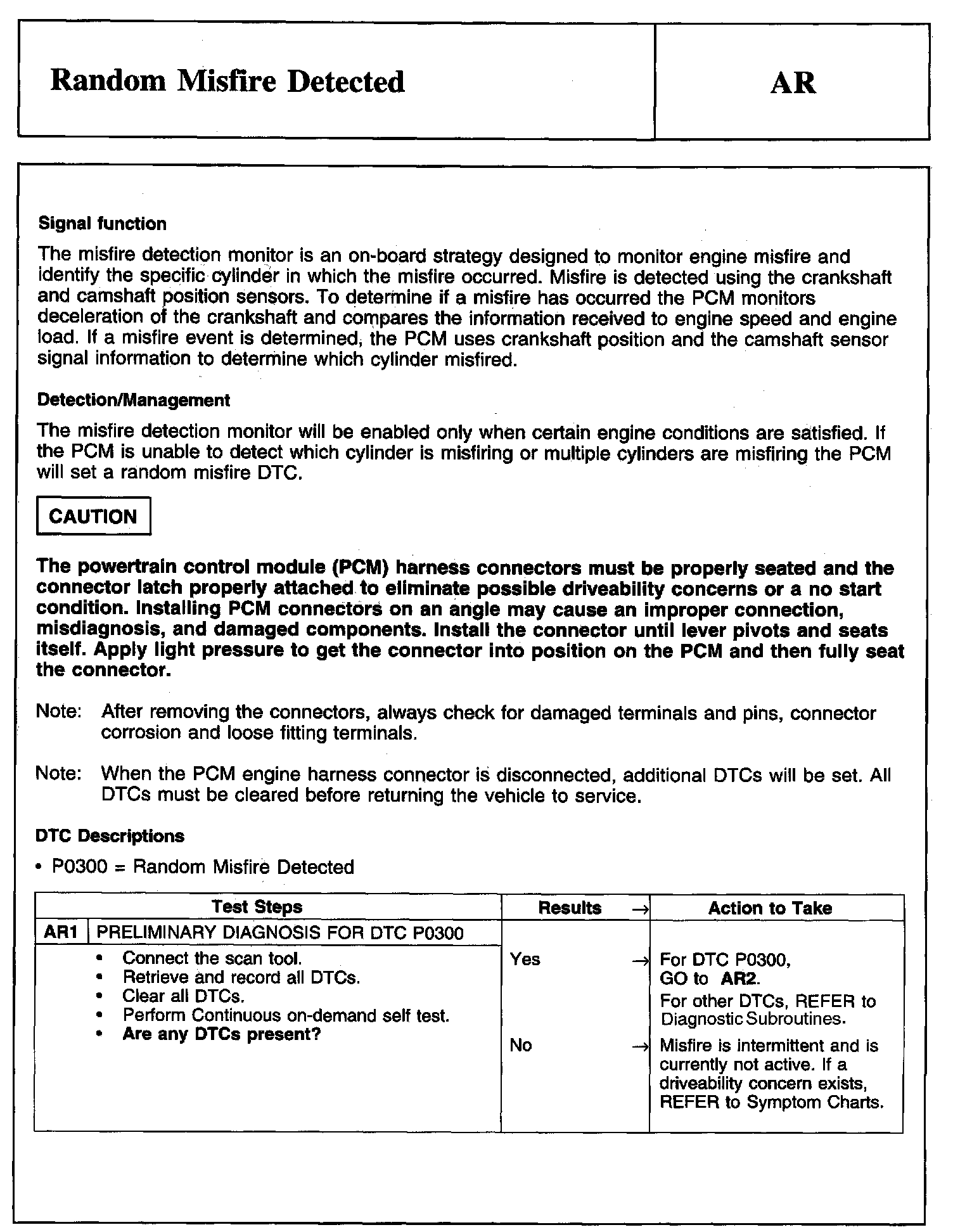

Description, Caution And Test AR1:

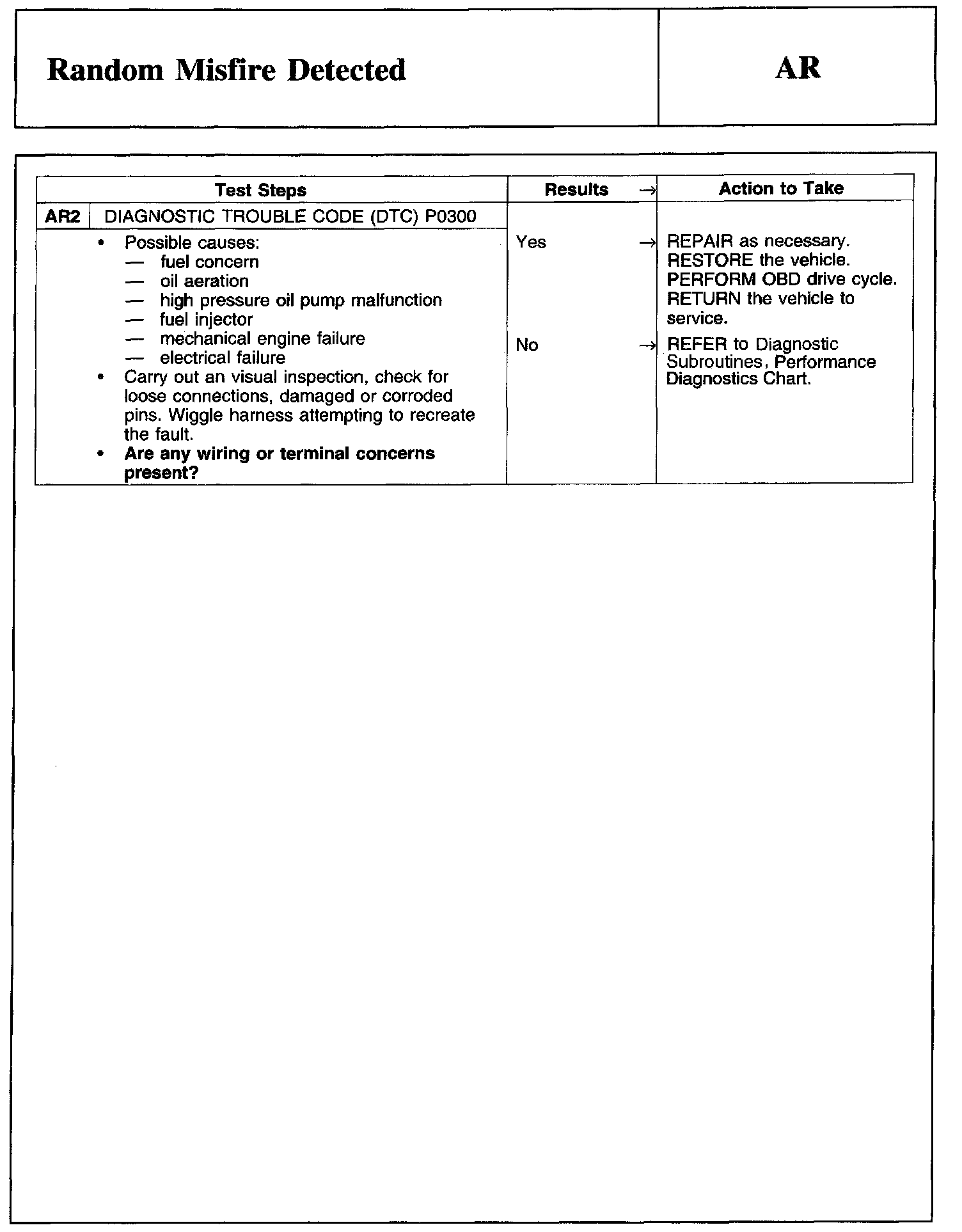

Test AR2:
