Home >> Ford Truck >> 2003 >> Excursion 4WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests AD

Tests AD

PINPOINT TEST AD: PCM RESET

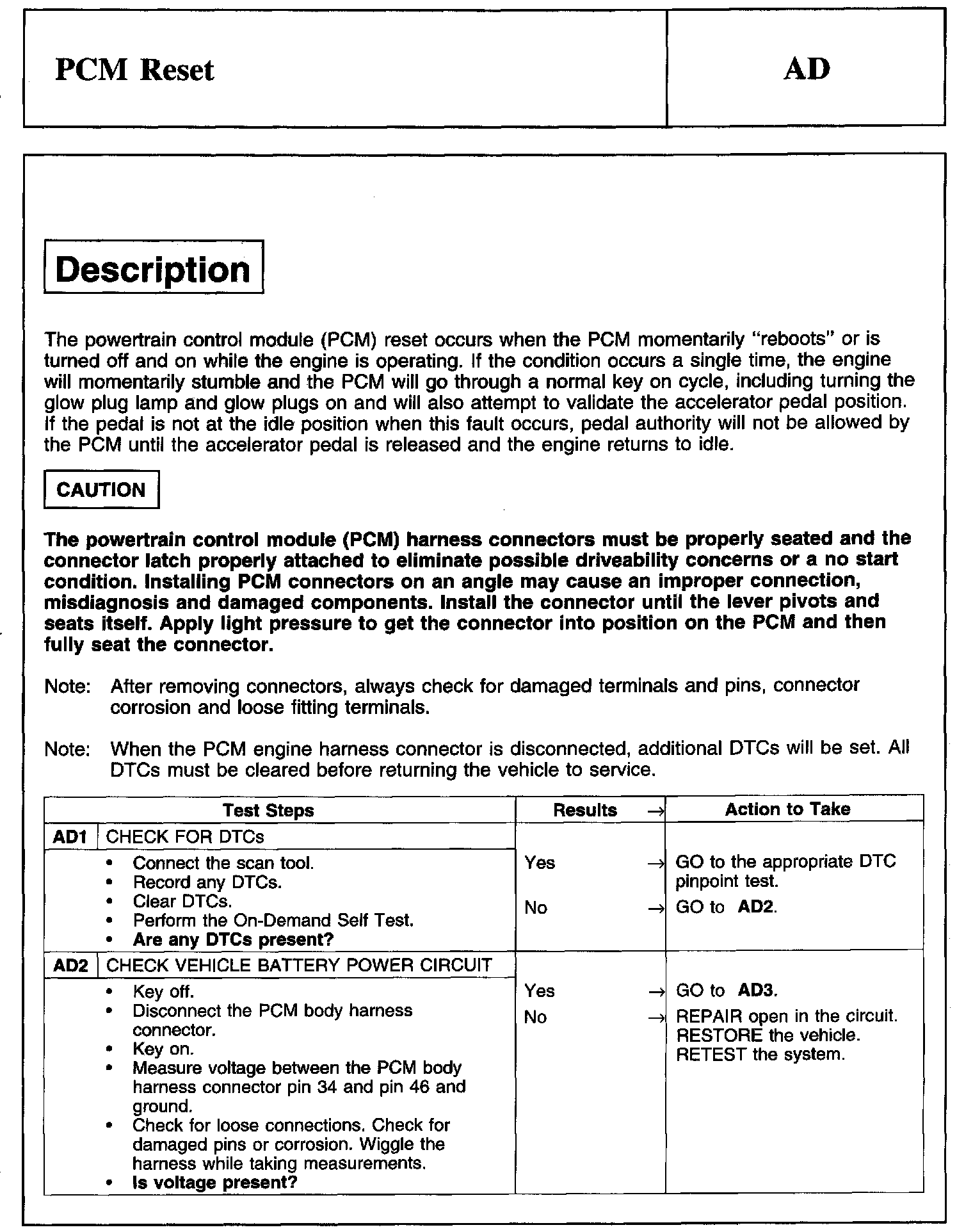

Description, Caution And Test AD1-AD2:

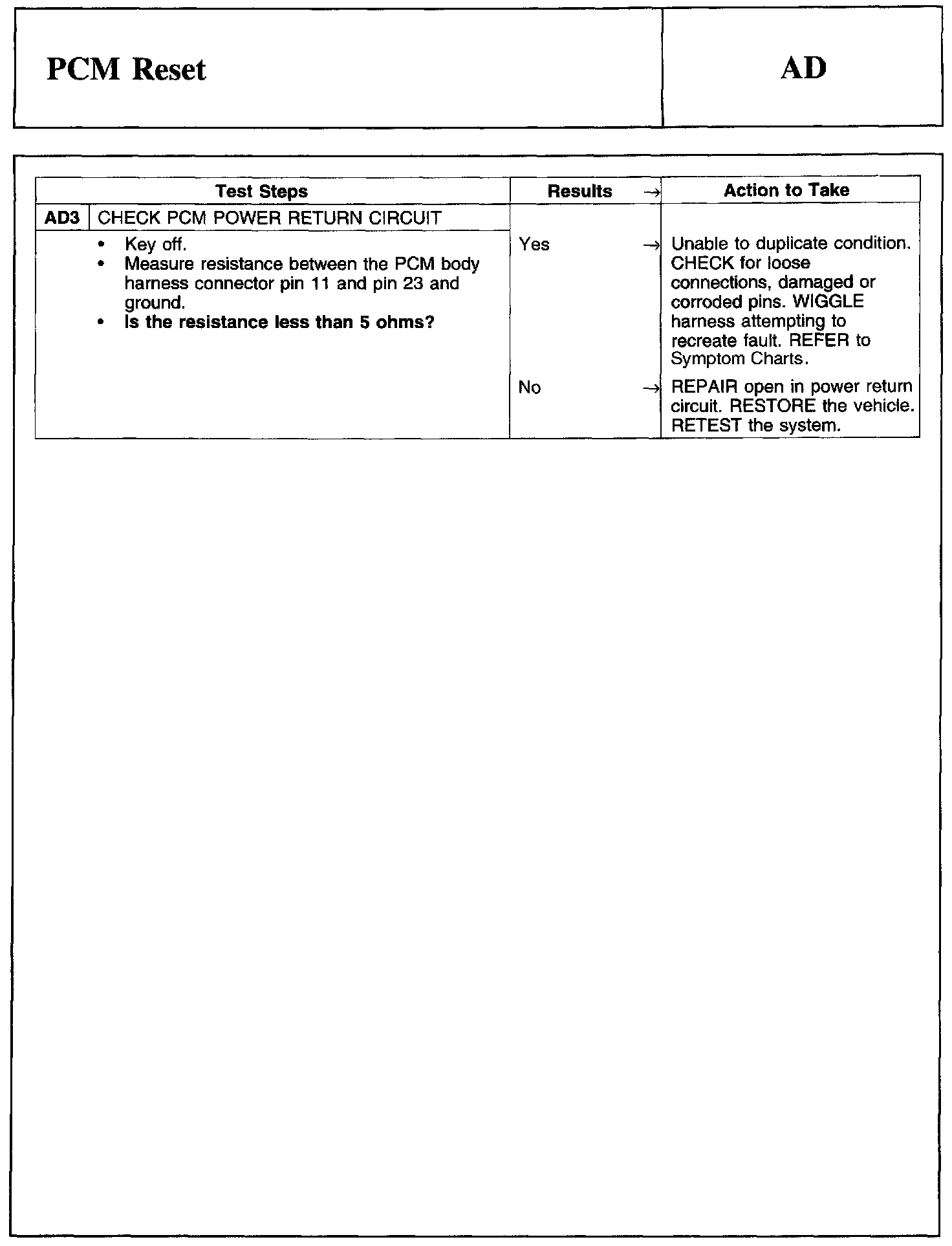

Test AD3:
