Home >> Ford Truck >> 2003 >> Excursion 4WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test G

Test G

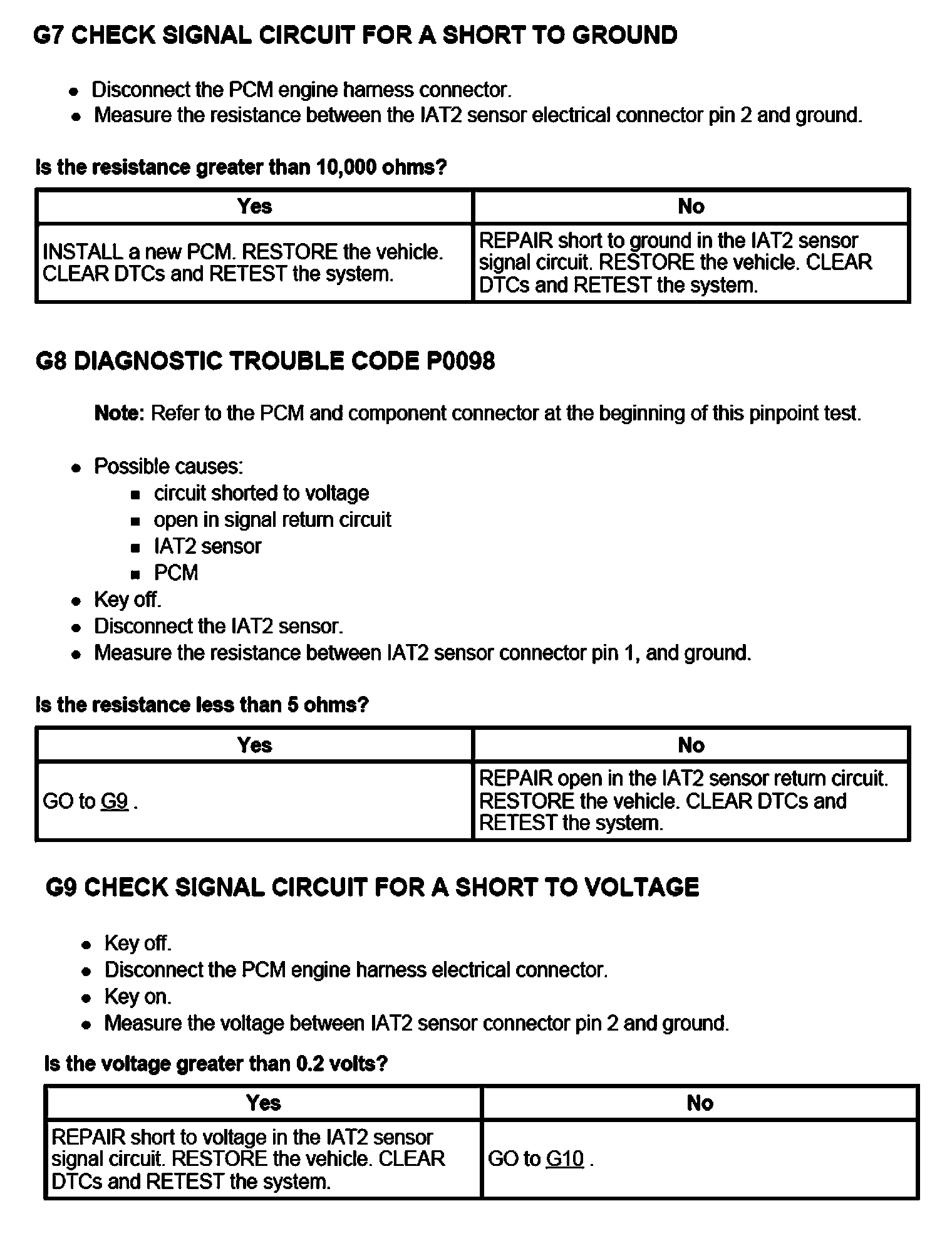

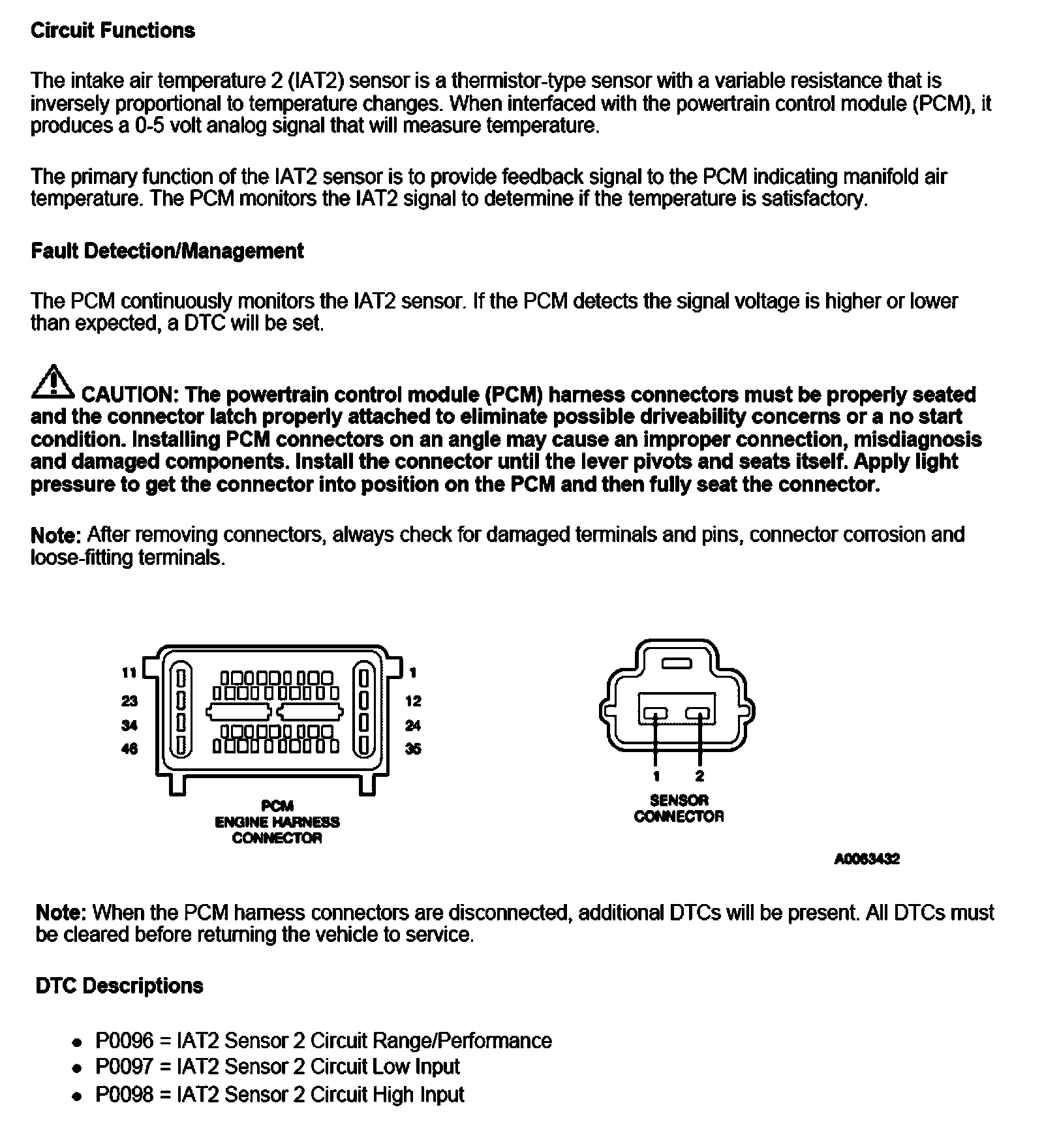

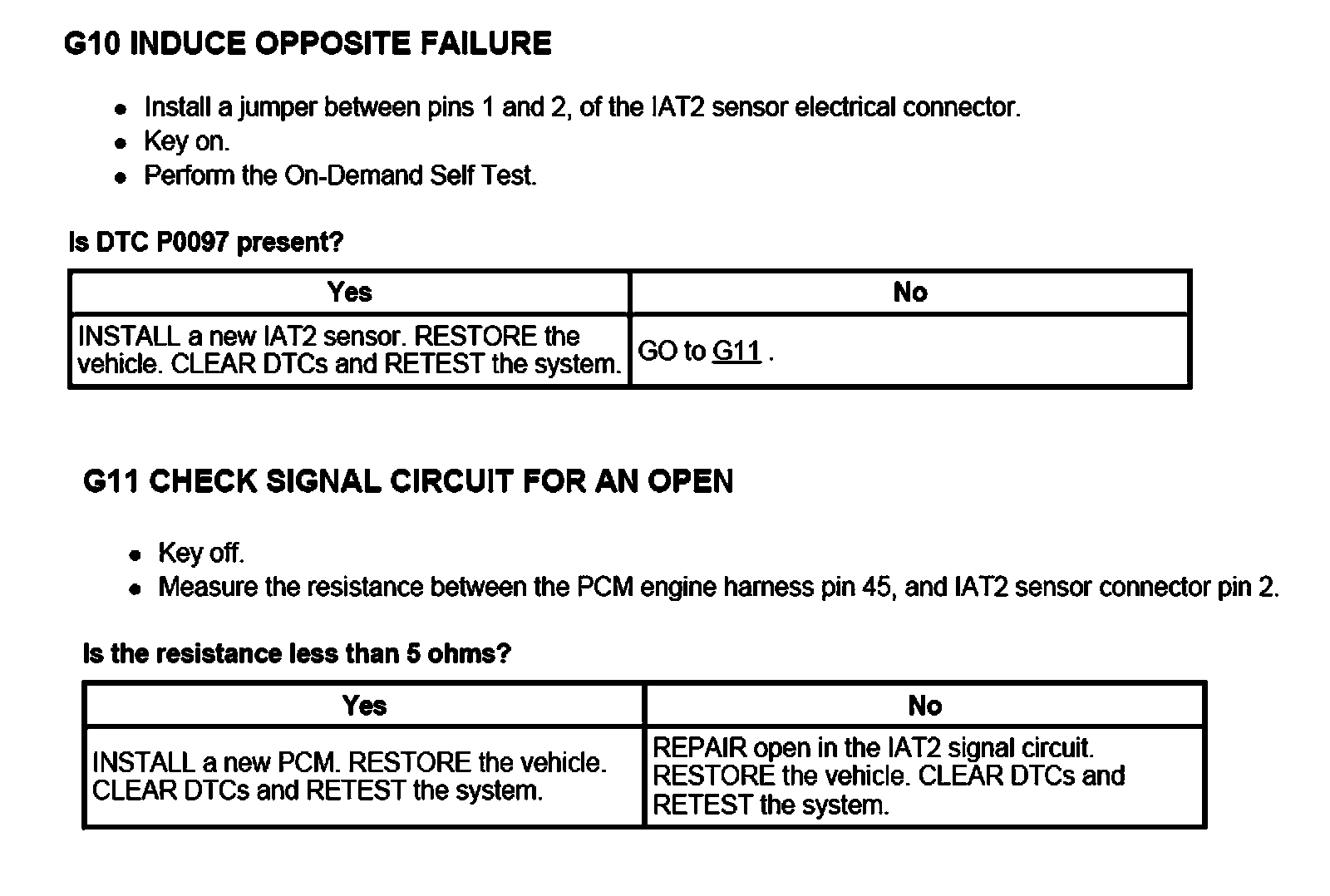

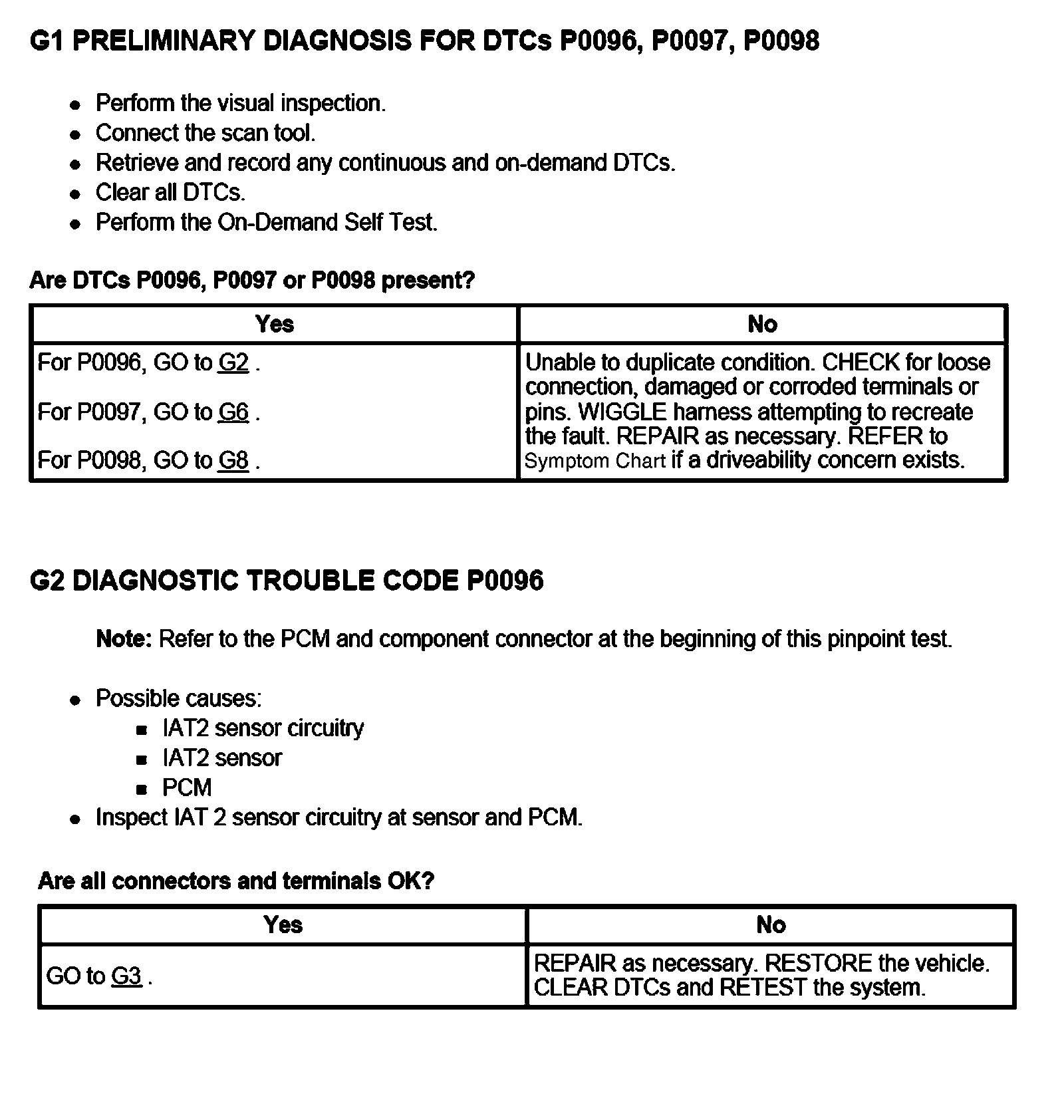

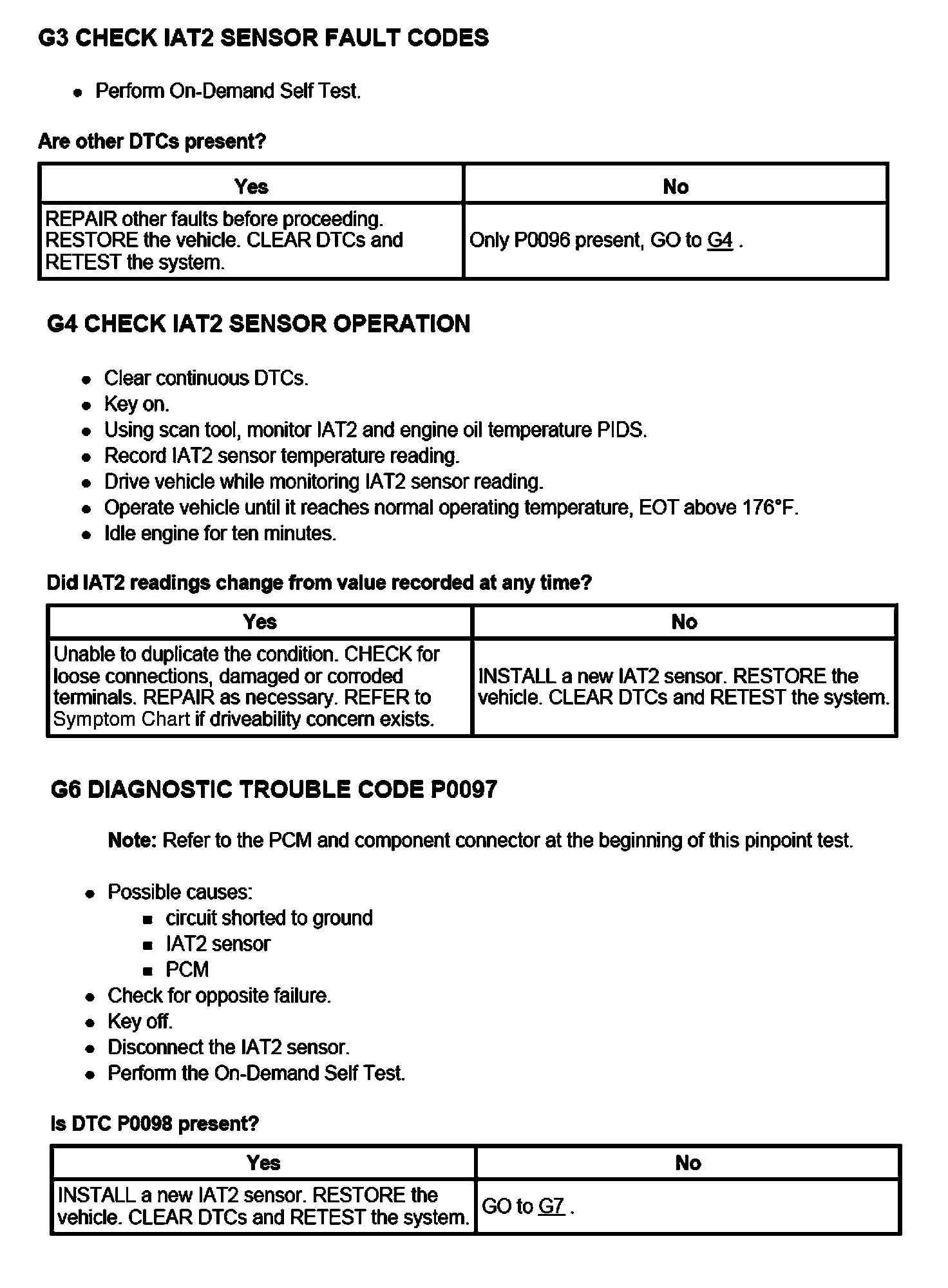

PINPOINT TEST G: INTAKE AIR TEMPERATURE 2 (IAT2) SENSOR
