Ford Truck
>>
2003
>>
Excursion 4WD V8-6.0L DSL Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test F
Test F

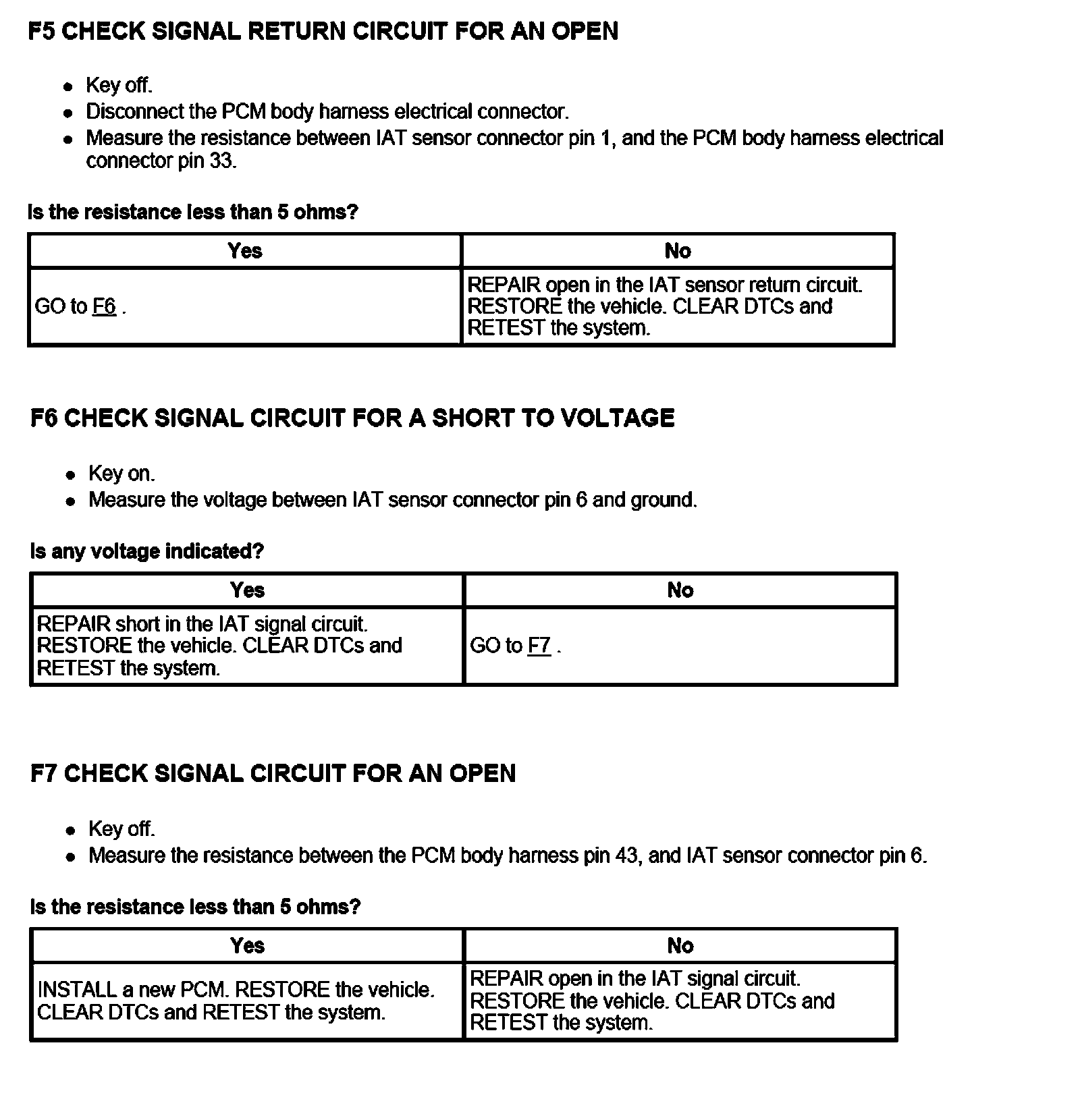

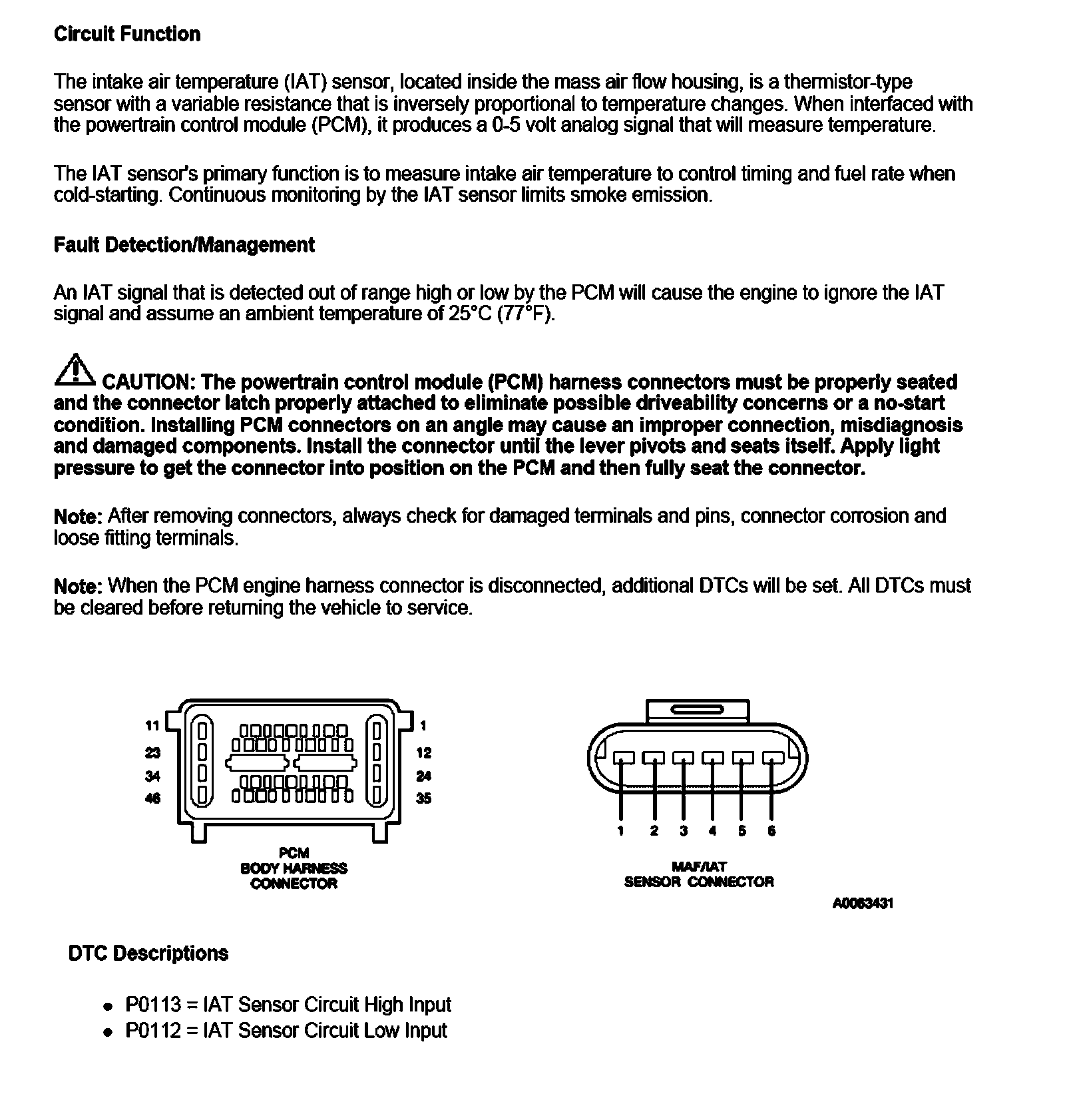

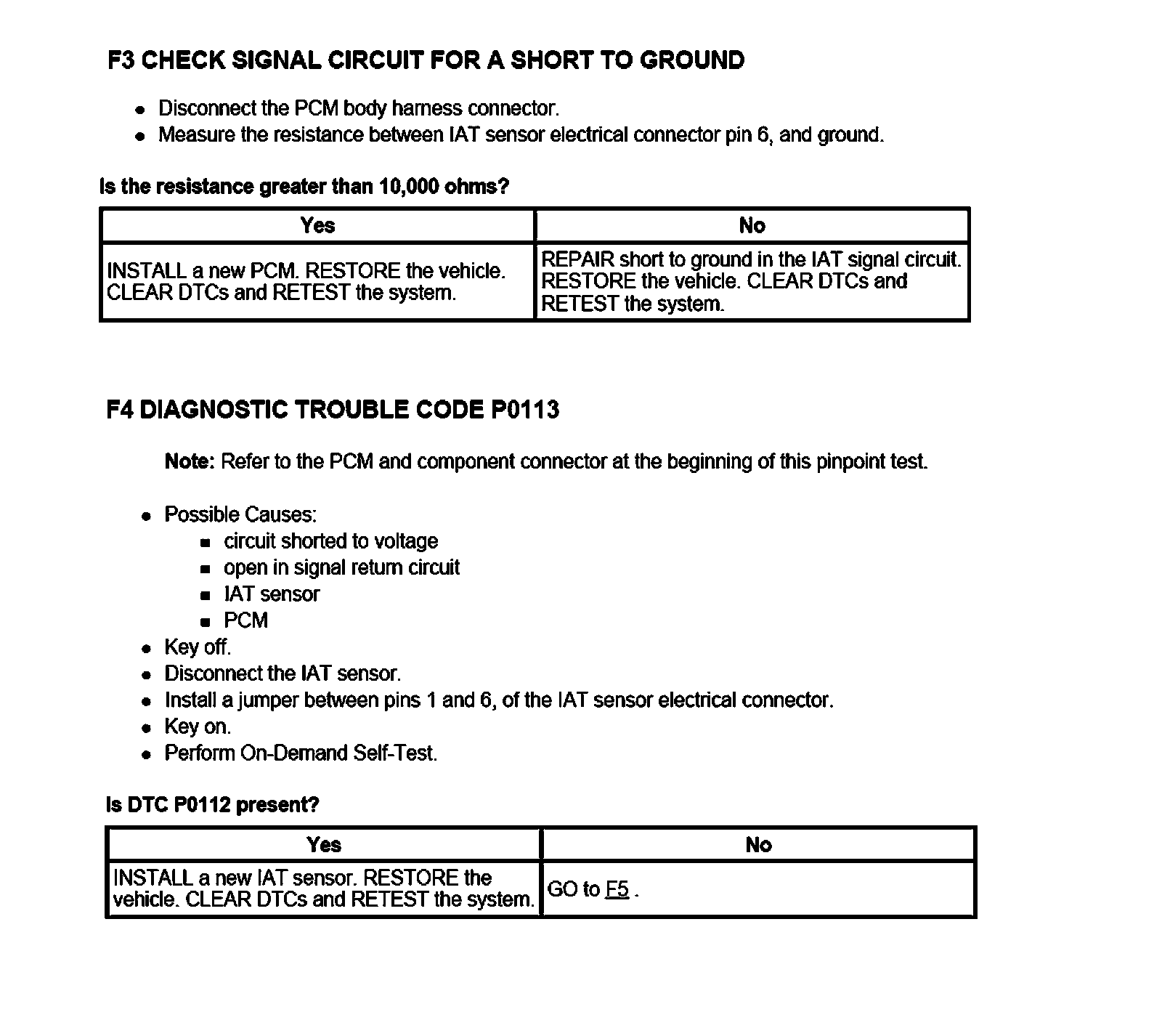

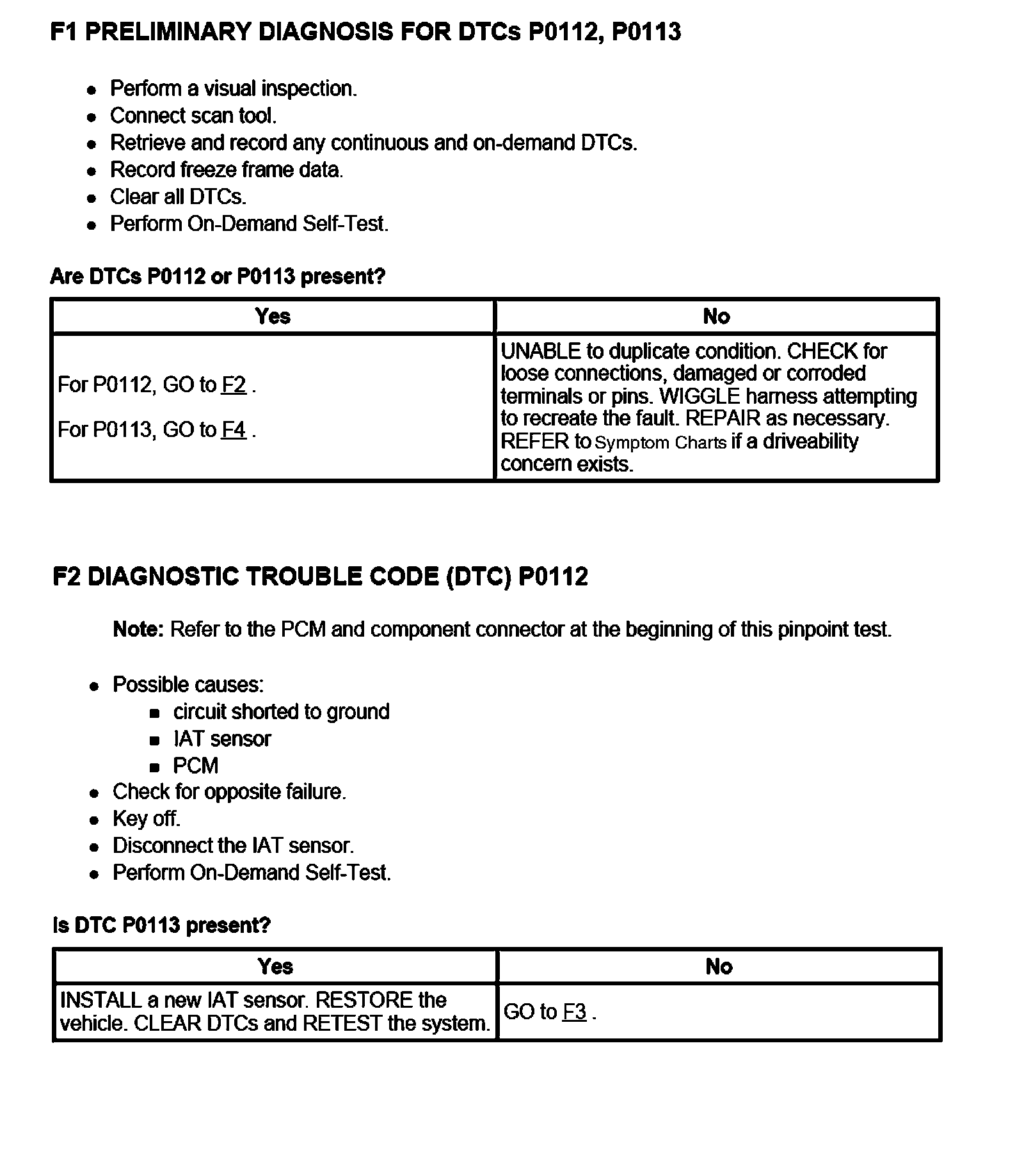

PINPOINT TEST F: INTAKE AIR TEMPERATURE (IAT) SENSOR
