Home >> Ford Truck >> 2003 >> Excursion 4WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Test C

Test C

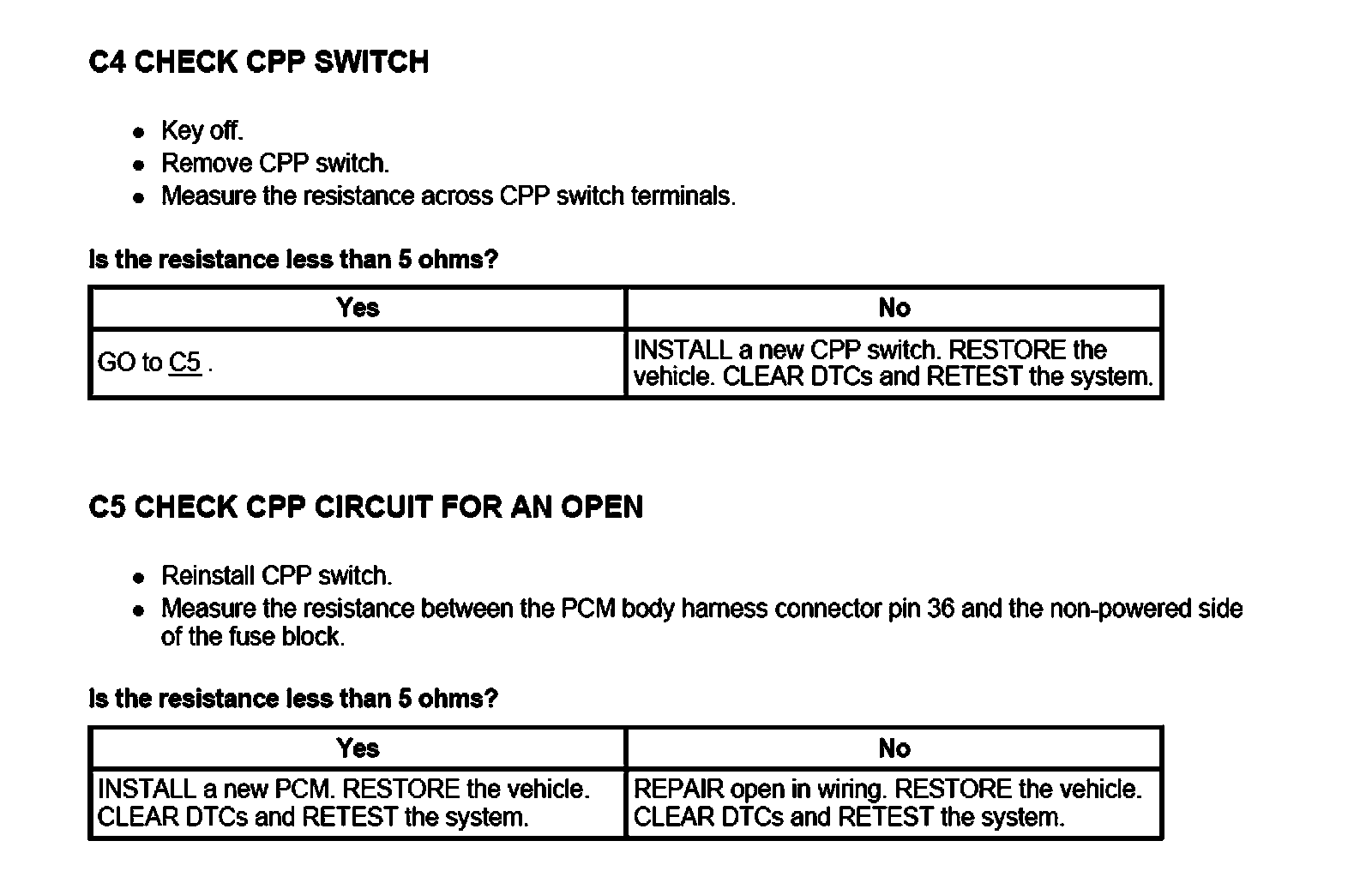

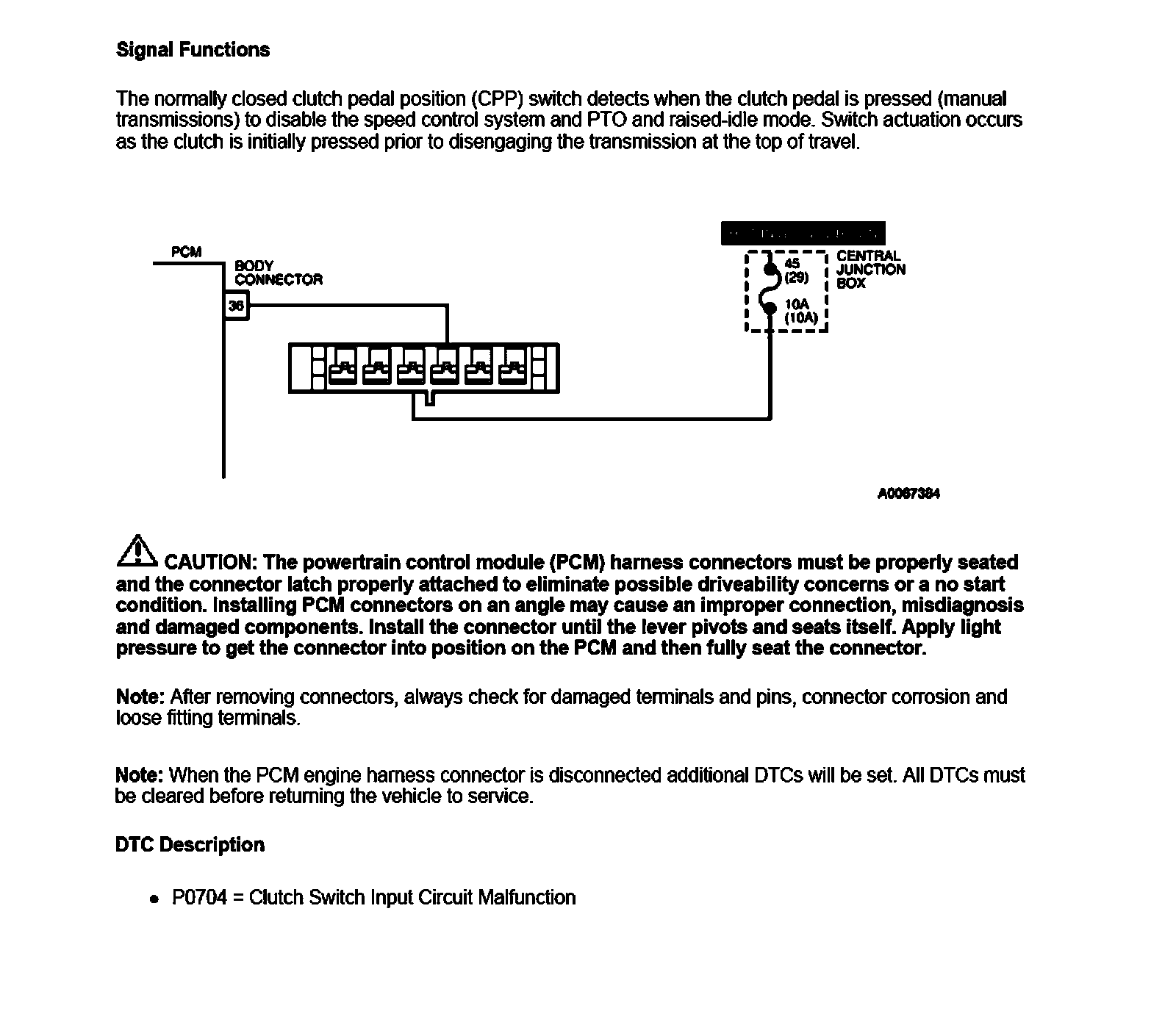

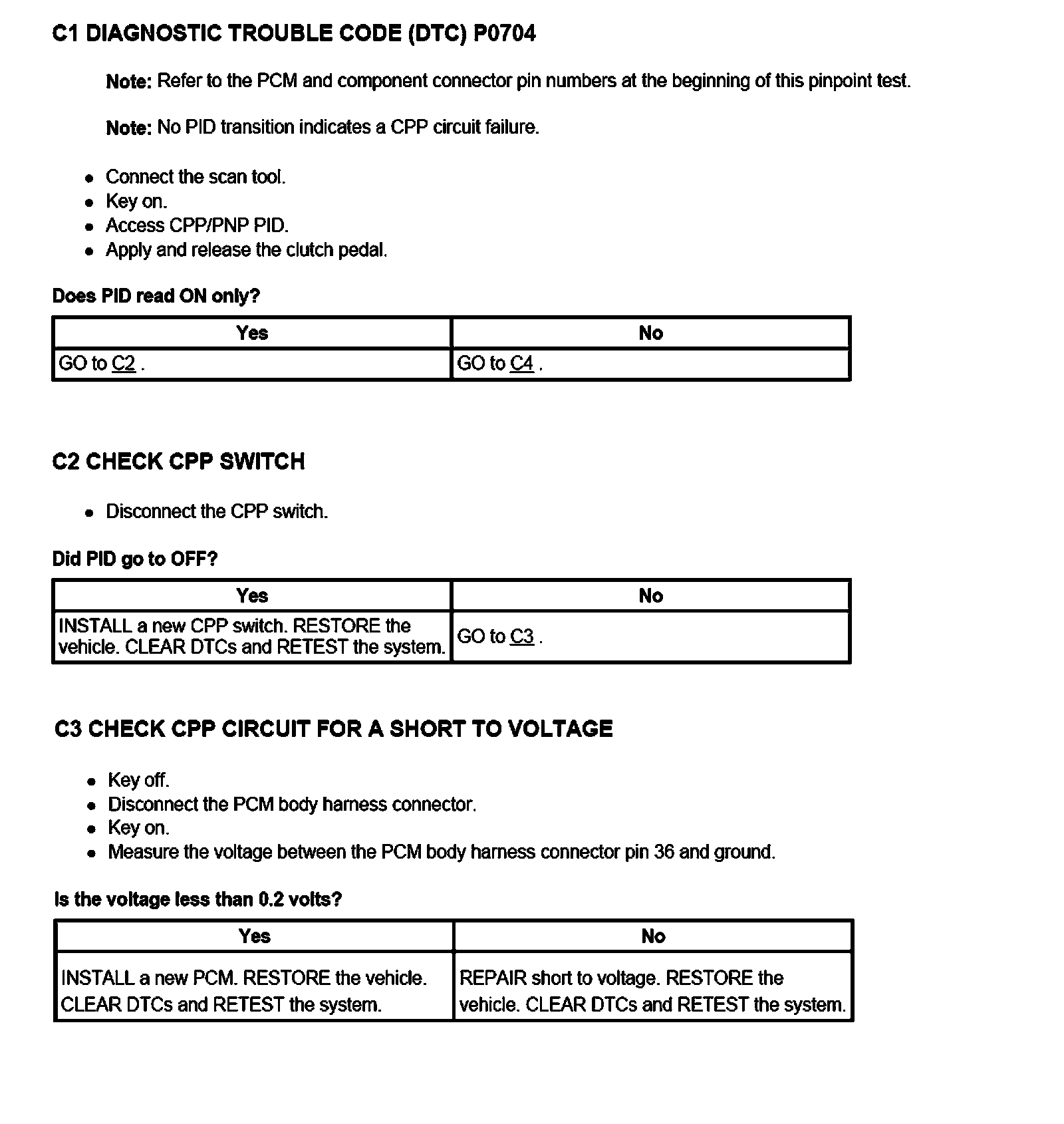

PINPOINT TEST C: CLUTCH PEDAL POSITION (CPP)/NEUTRAL START SWITCH
