Home >> Ford Truck >> 2003 >> Excursion 4WD V10-6.8L VIN S >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Steering and Suspension >> Alignment >> Alignment Specifications

Alignment Specifications

Alignment Specifications

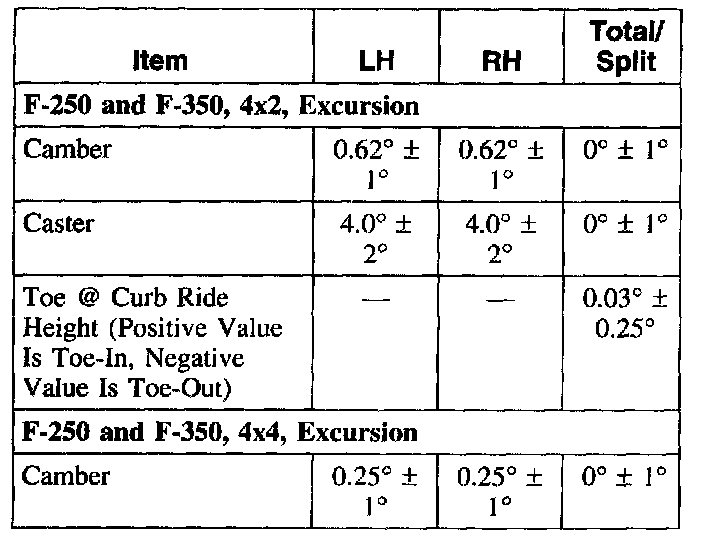

Part 1 Of 2:

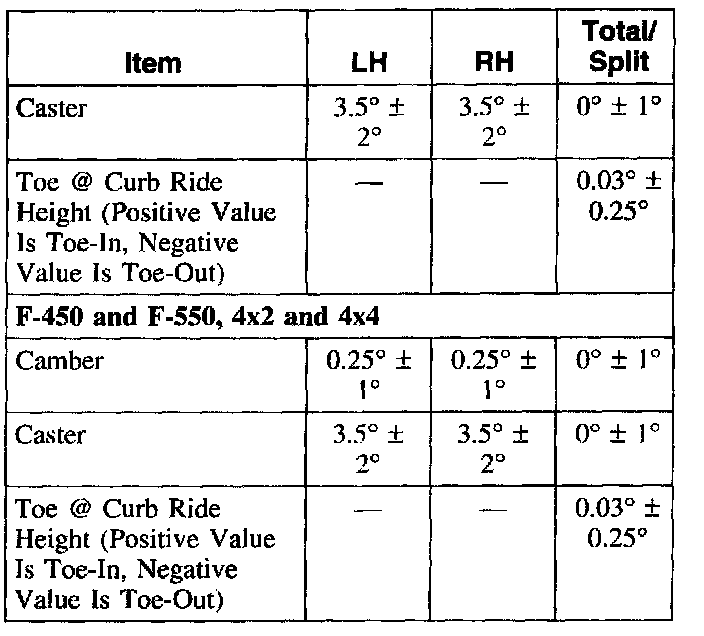

Part 2 Of 2:
