FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2003
>>
Excursion 2WD V8-7.3L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test P
Test P
PINPOINT TEST P: NO STANDARD CORPORATE PROTOCOL (SCP) NETWORK COMMUNICATION

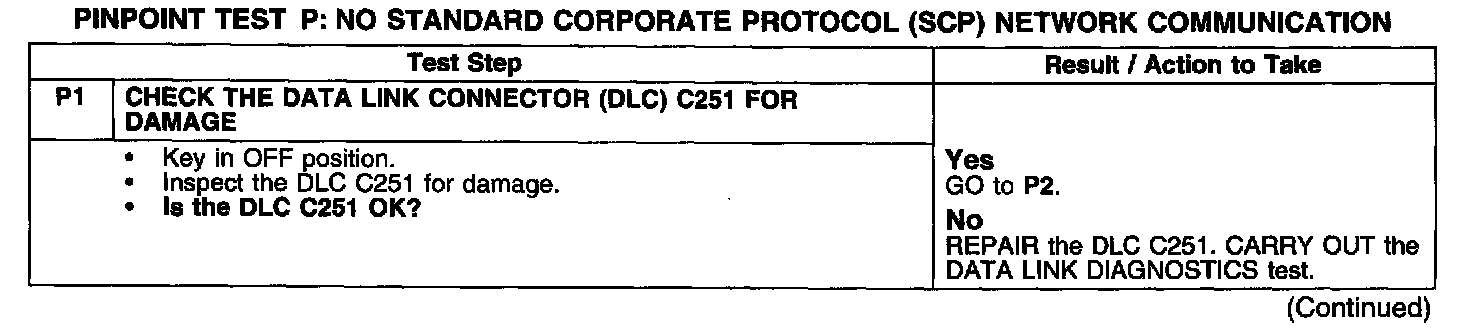

Test P1:

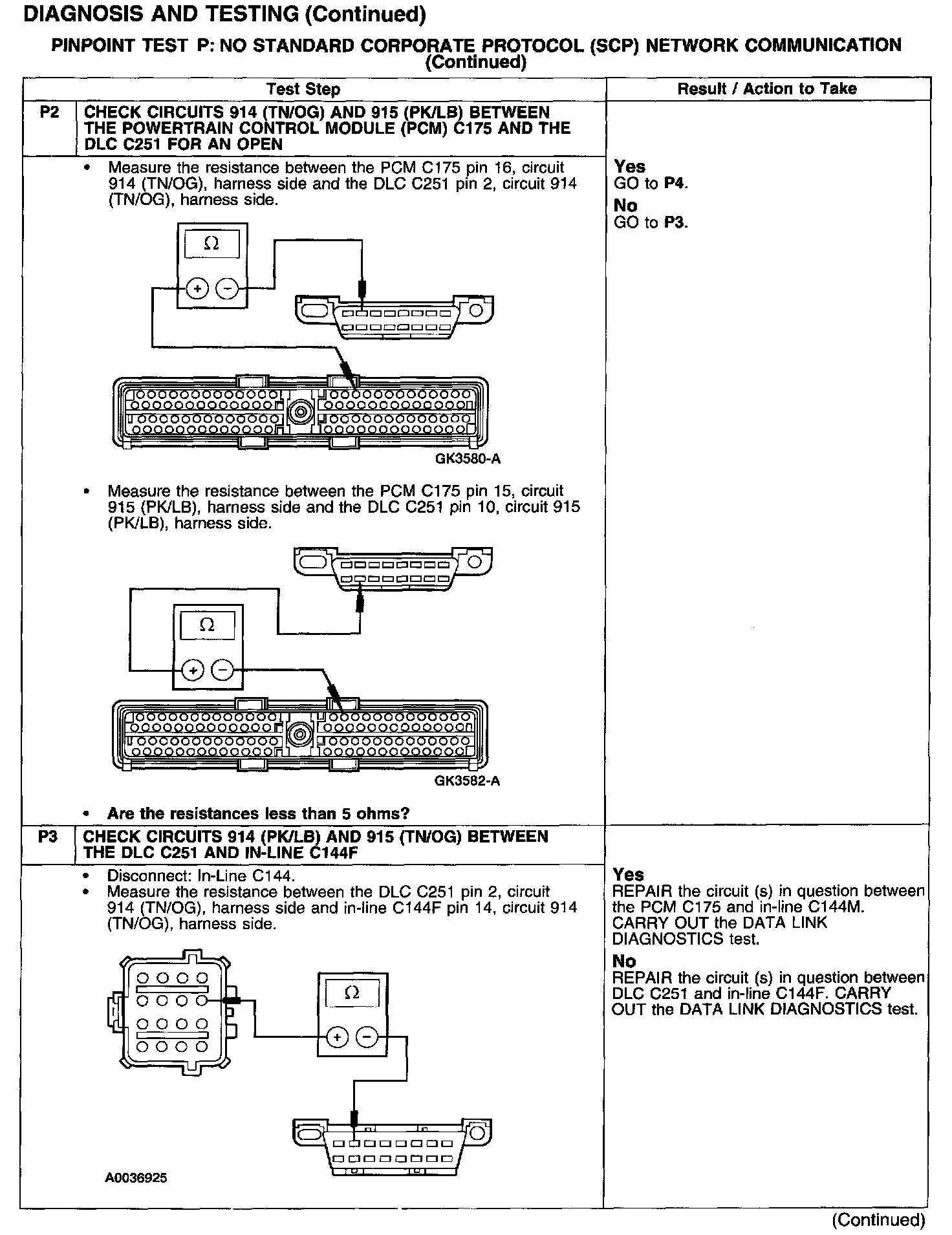

Test P2-P3:

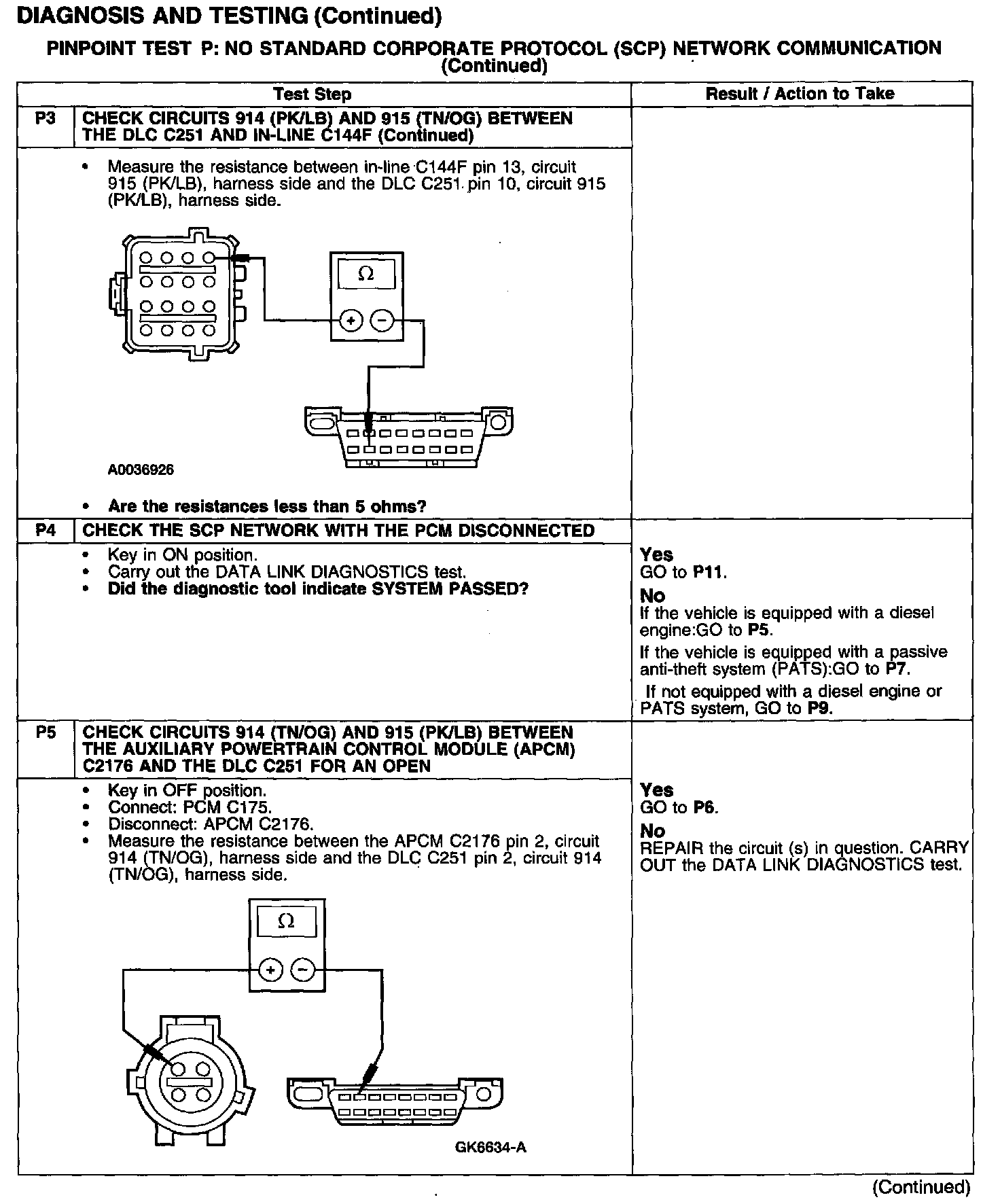

Test P3-P5:

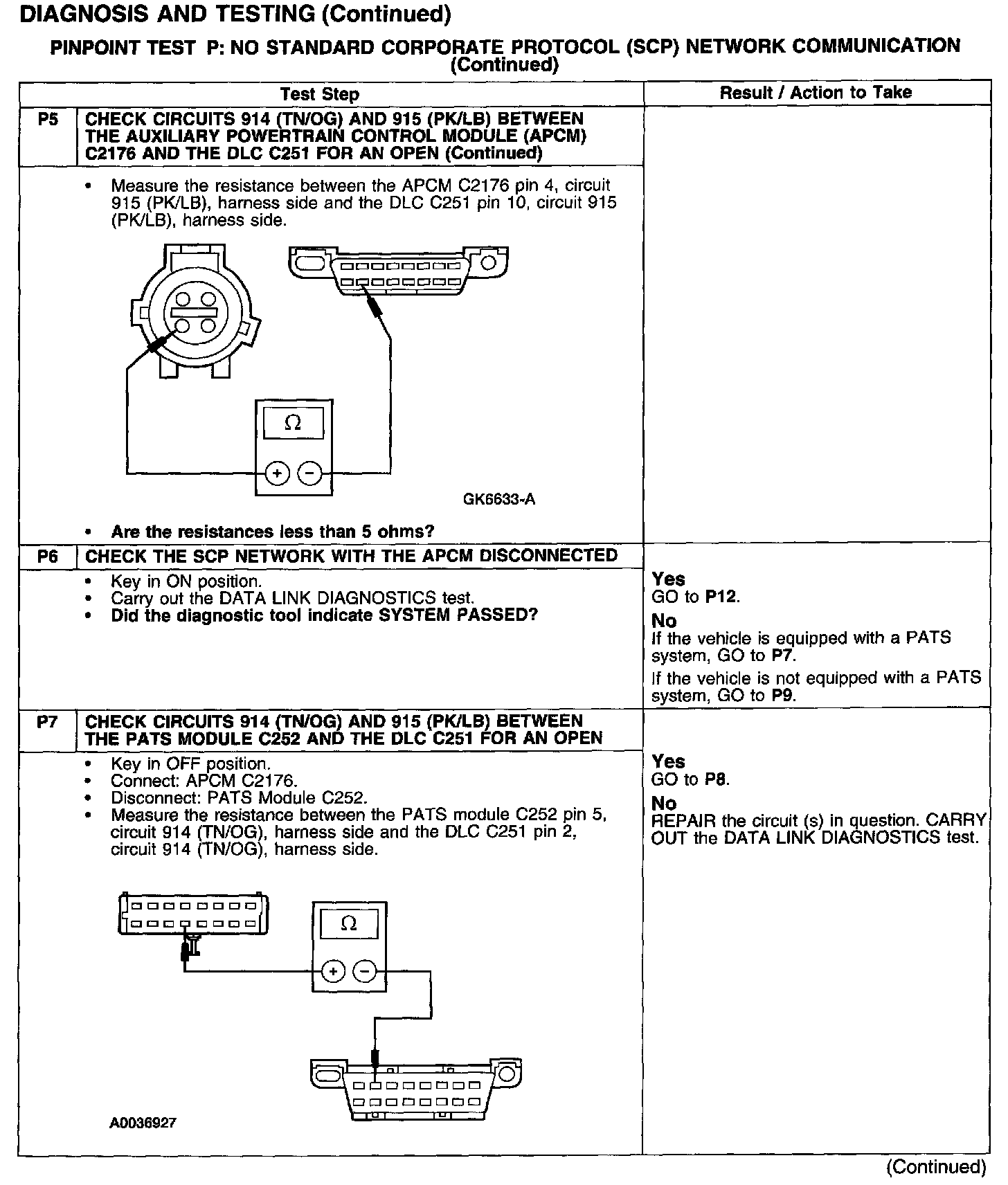

Test P5-P7:

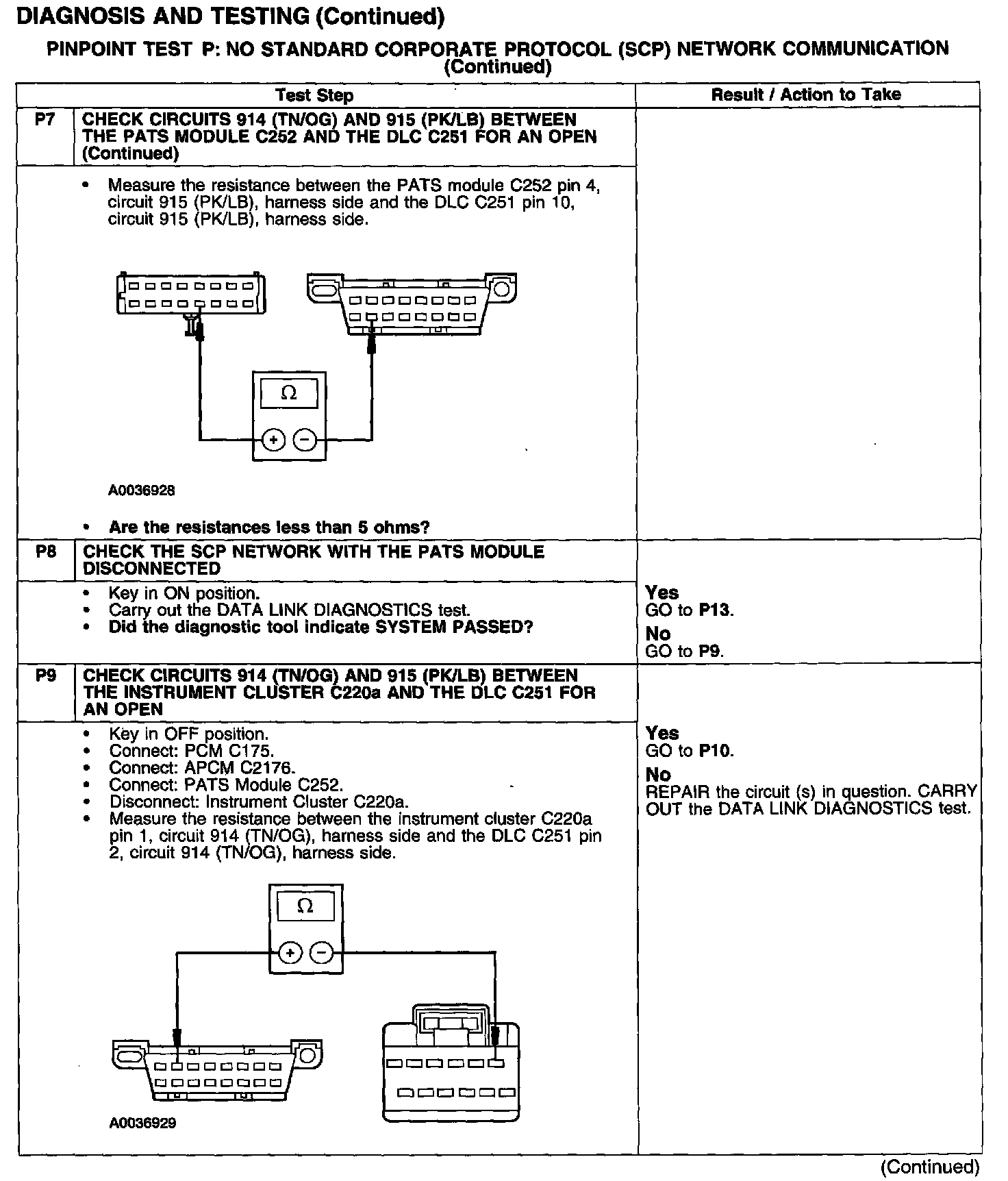

Test P7-P9:

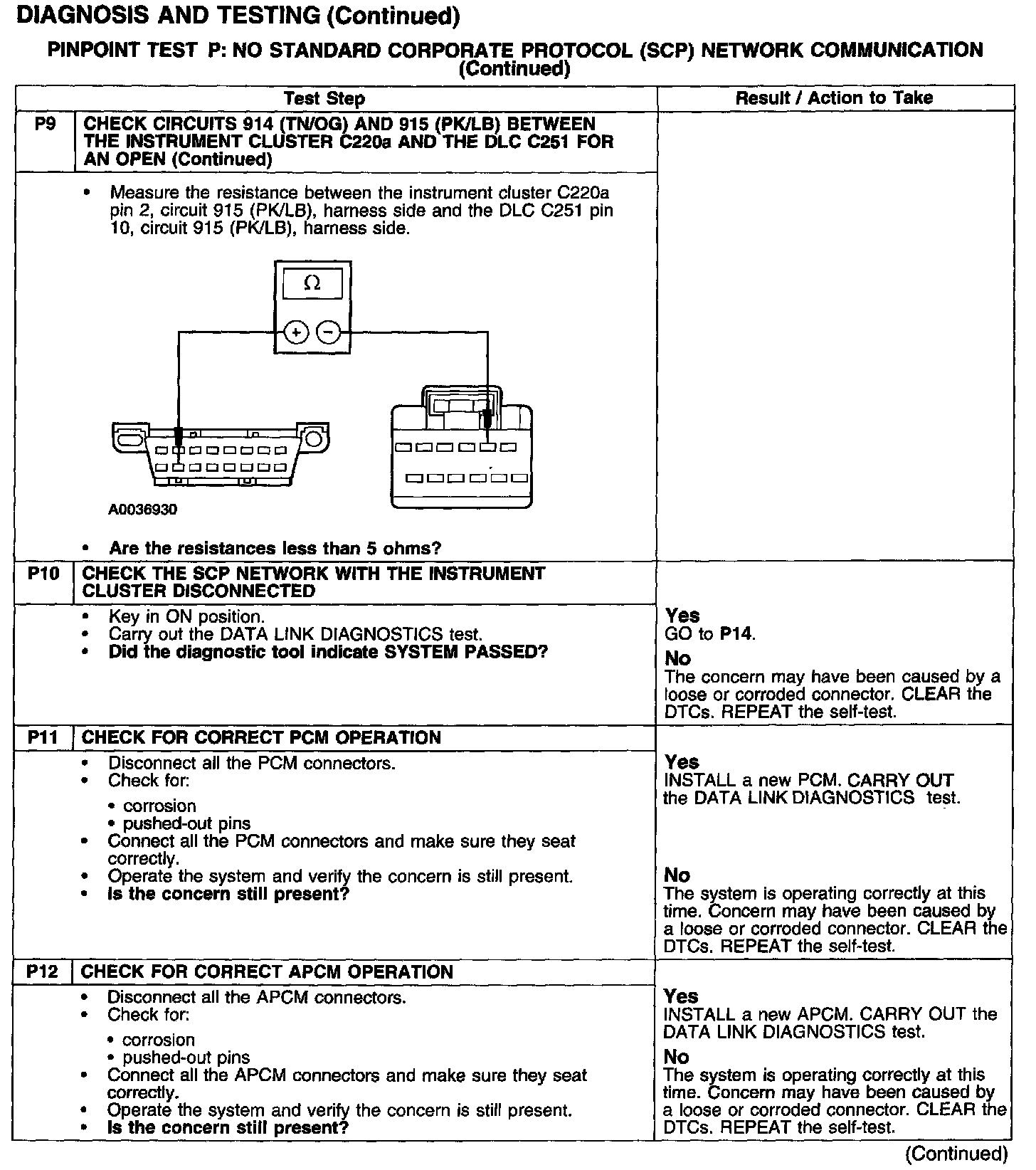

Test P9-P12:

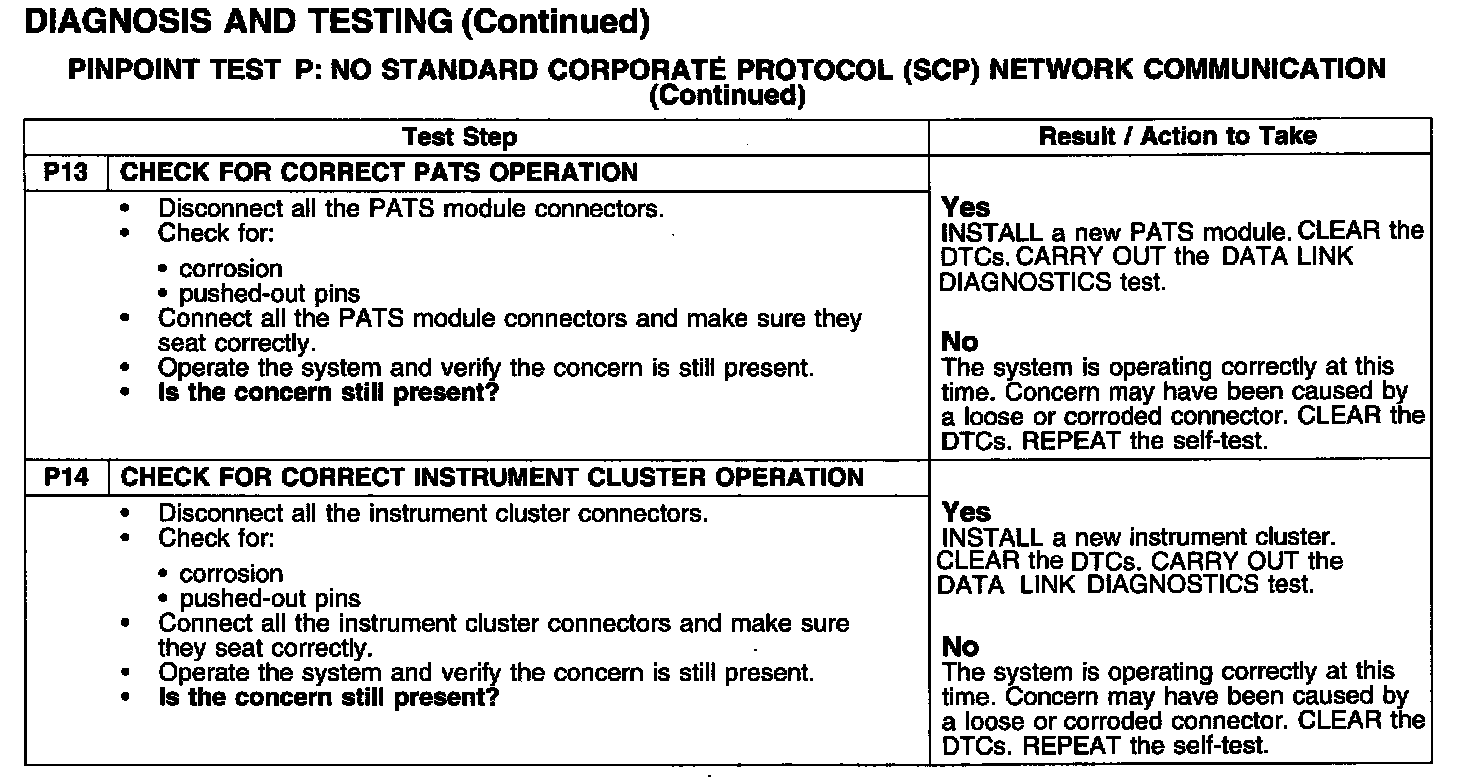

Test P13-P14:
