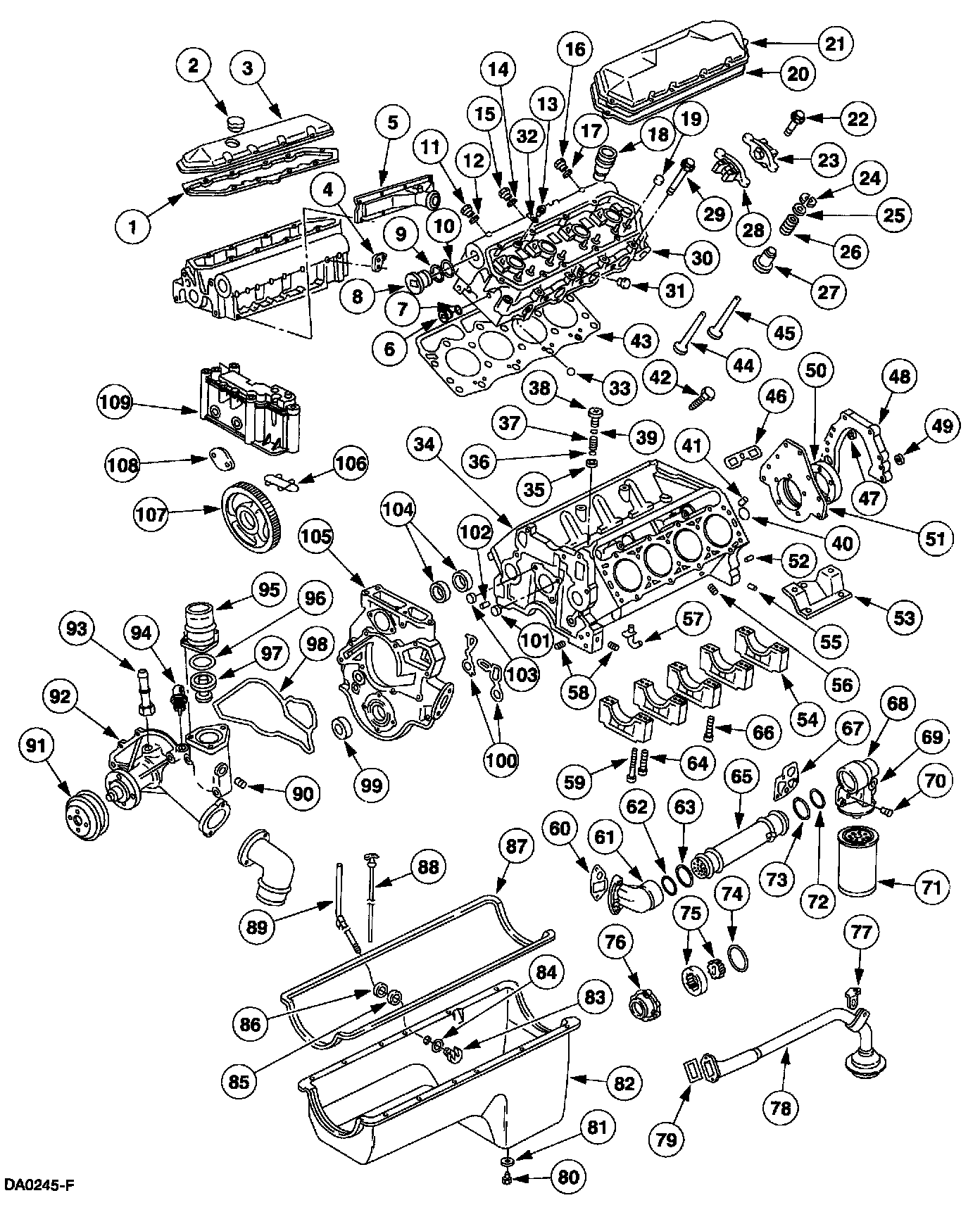

7.3L (DIT) Engine

7.3L (DIT) Engine

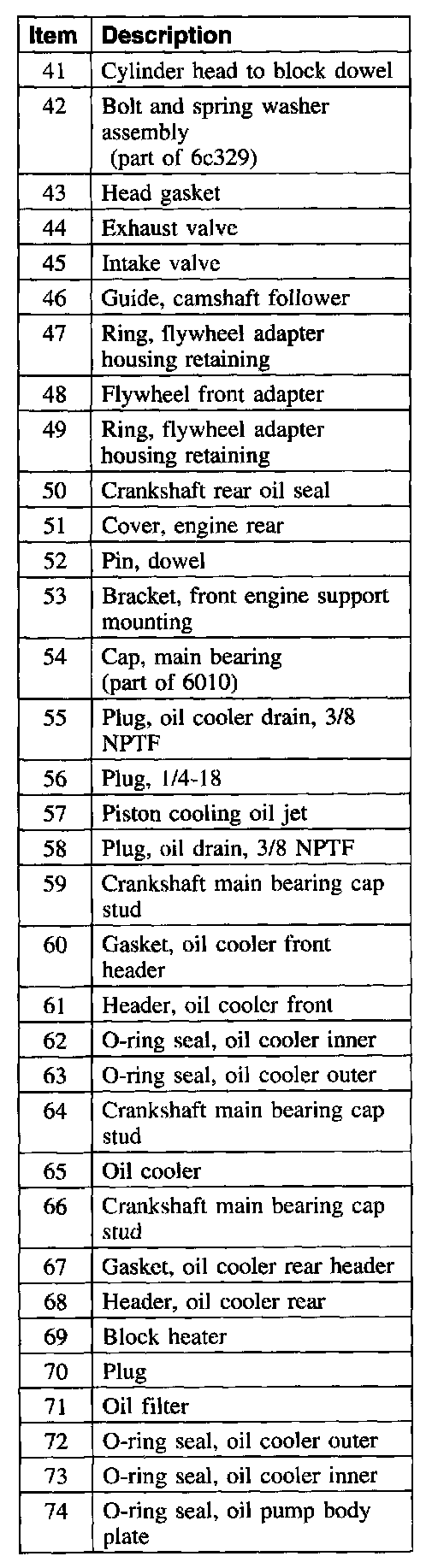

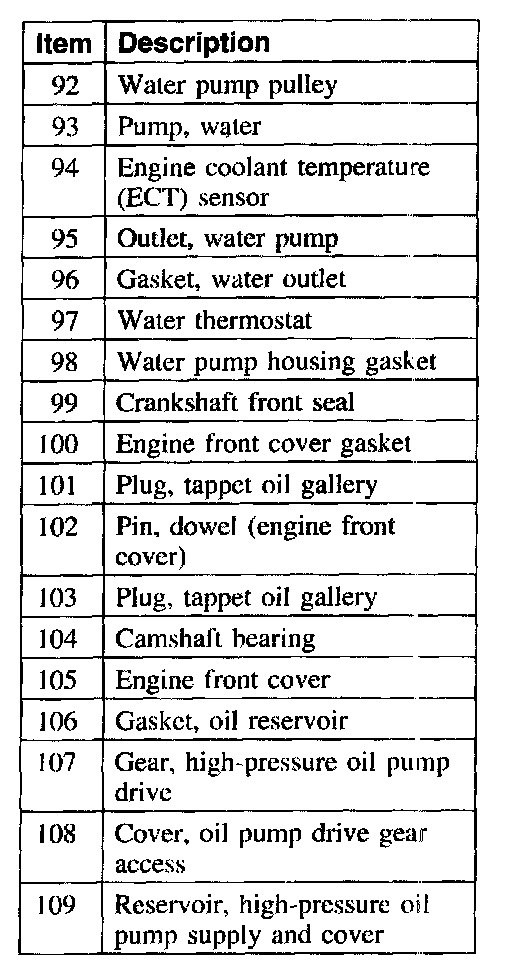

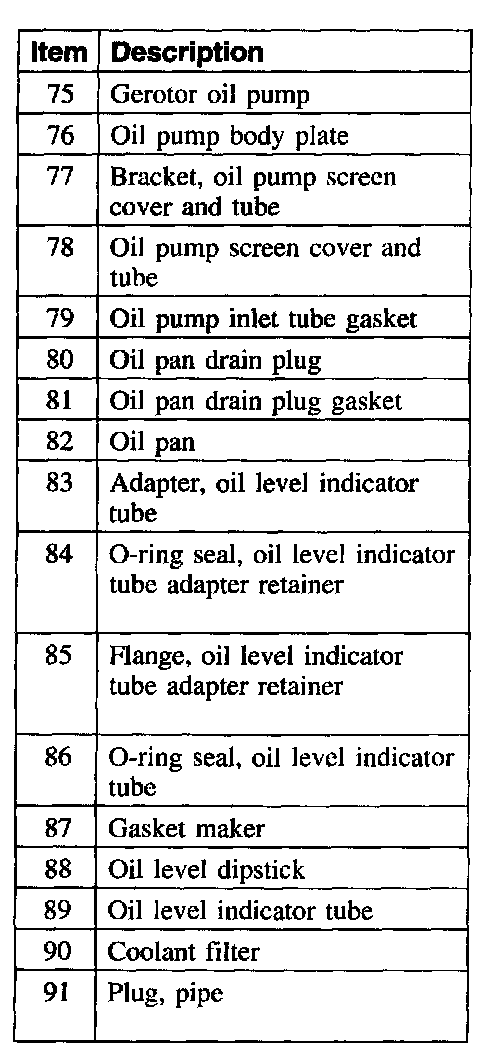

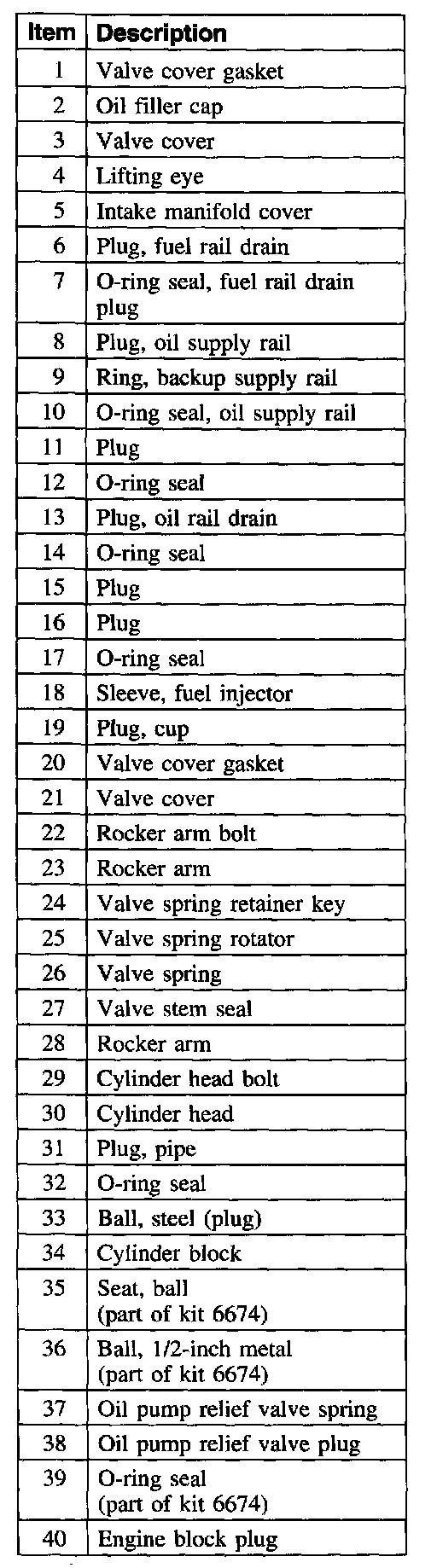

Part 1 Of 5:

Part 2 Of 5:

Part 3 Of 5:

Part 4 Of 5:

Part 5 Of 5:
