Test B: 4X4 Indicator Is Always on- System Operates Correctly
Test B: 4X4 Indicator Is Always on- System Operates Correctly
PINPOINT TEST B: THE 4X4 INDICATOR IS ALWAYS ON - FOUR-WHEEL DRIVE SYSTEM OPERATES CORRECTLY

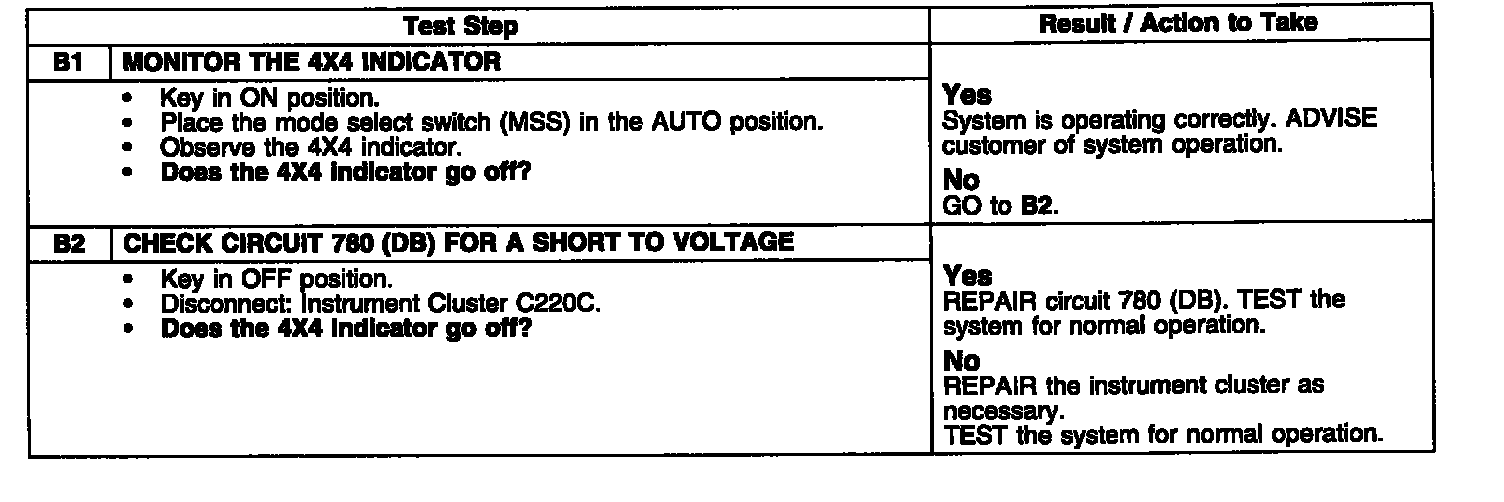

Test B1-B2:
