Test A: Doesn't Shift Between Auto & 4X4 Modes Correctly
Test A: Doesn't Shift Between Auto & 4X4 Modes Correctly
PINPOINT TEST A: THE VEHICLE DOES NOT SHIFT BETWEEN AUTO AND 4X4 ON MODES CORRECTLY

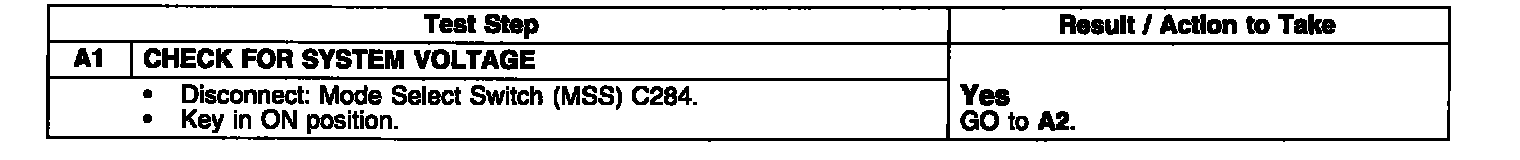

Test A1:

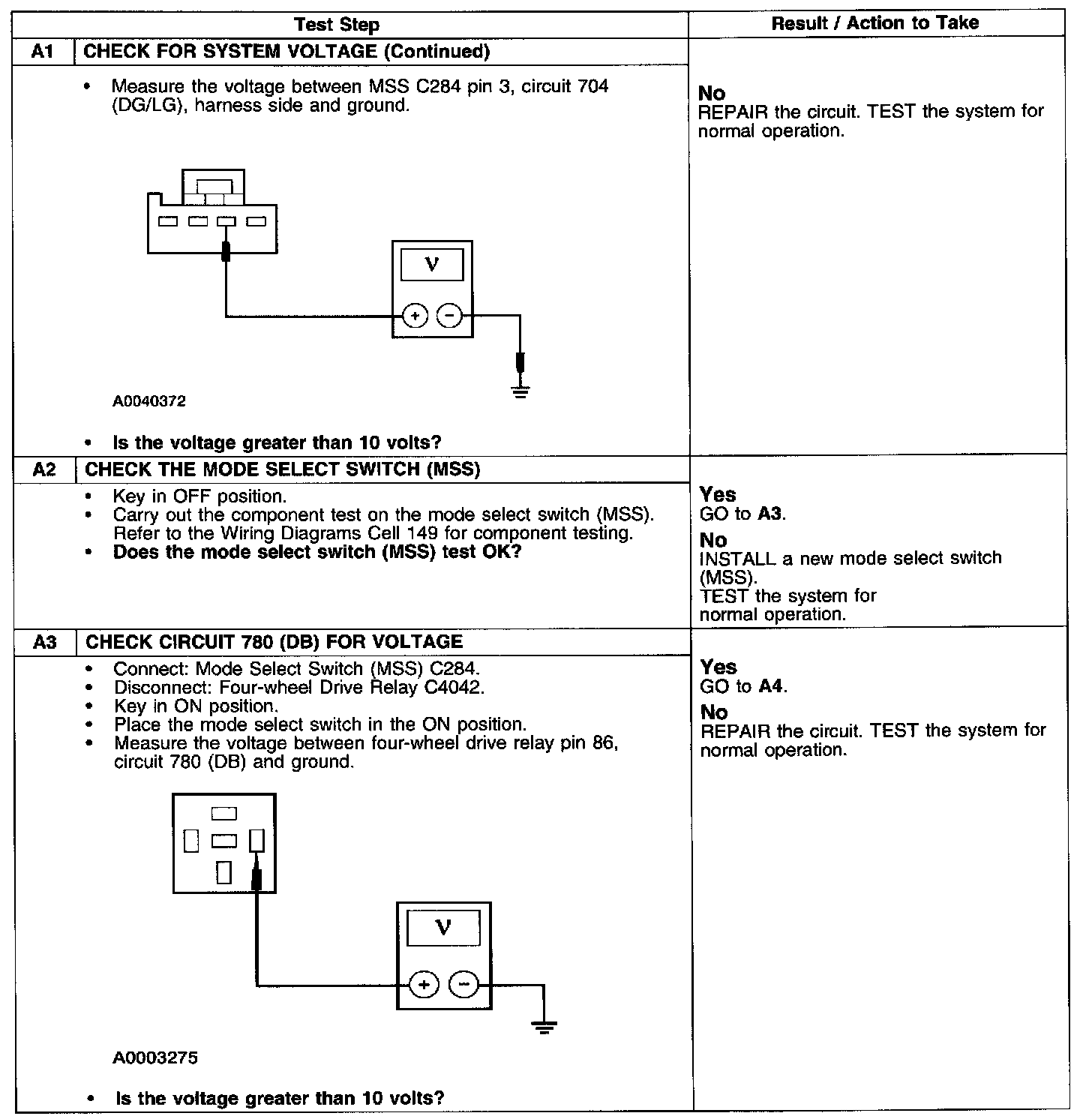

Test A1-A3:

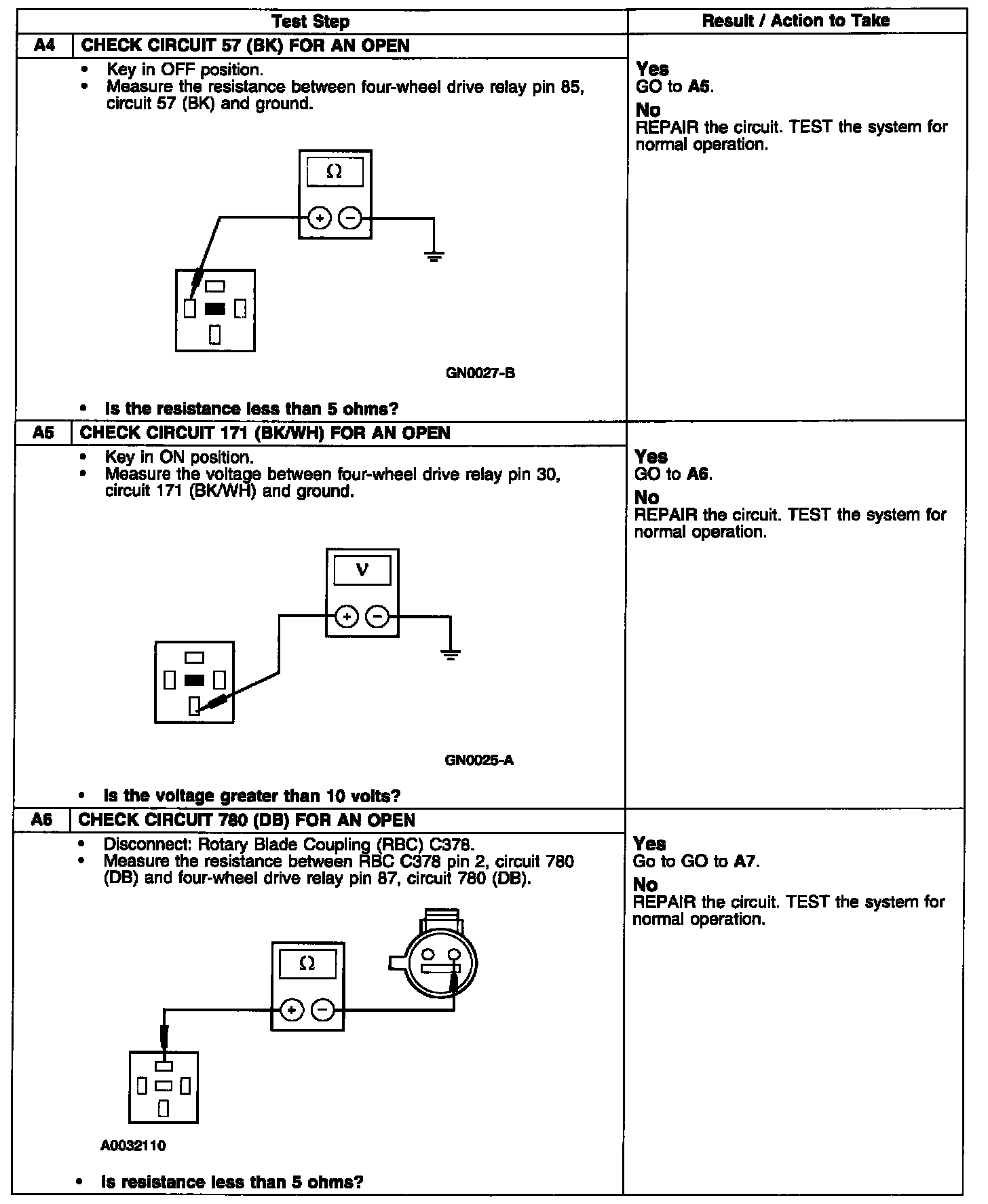

Test A4-A6:

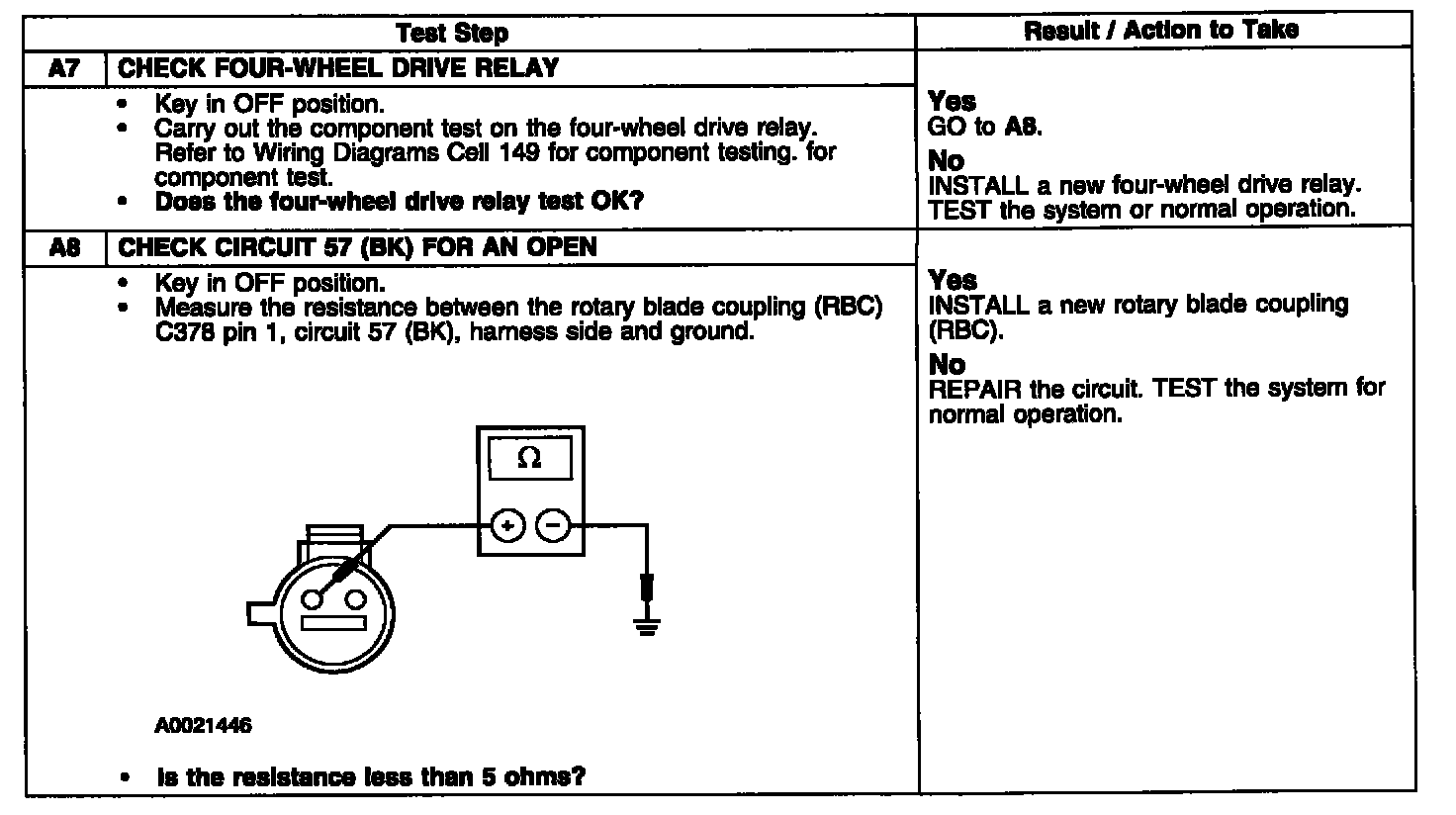

Test A7-A8:
