Mode Select Switch (MSS)

Mode Select Switch (MSS)

Removal and Installation





1. Remove the Mode Select Switch (MSS) knob.
2. Remove the instrument panel center finish panel.

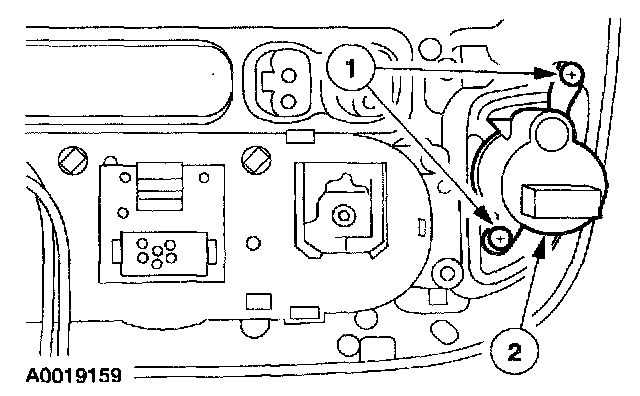

3. Remove the MSS.
1 Remove the screws.
2 Remove the MSS.
4. To install, reverse the removal procedure.
