Oil Pressure Sender: Service and Repair

Oil Pressure Sender

Removal and Installation
1. Raise and support the vehicle.

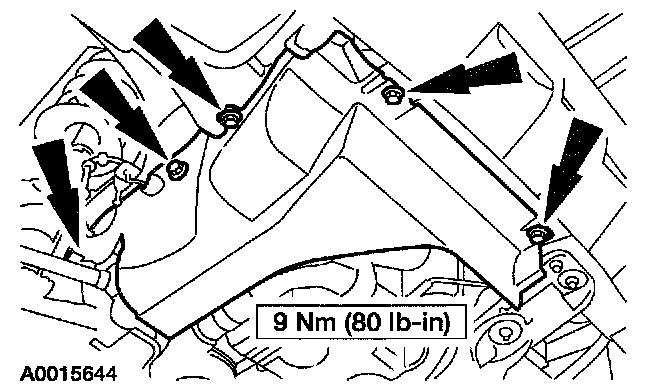

2. Remove the right side splash shield.





3. NOTE: The A/C compressor has been removed for clarity.

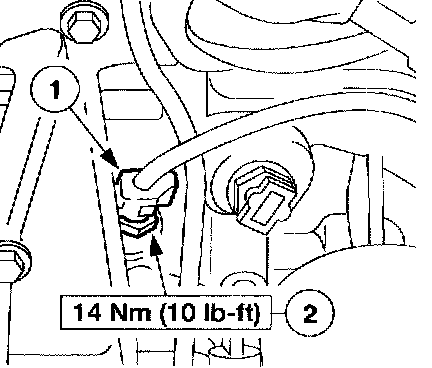

Remove the oil pressure sender.
1. Disconnect the electrical connector.
2. Remove the sender.
4. To install, reverse the removal procedure.
