Wheel Speed Sensor: Service and Repair

Sensor-Front

Removal and Installation
1. Remove the wheel and tire.

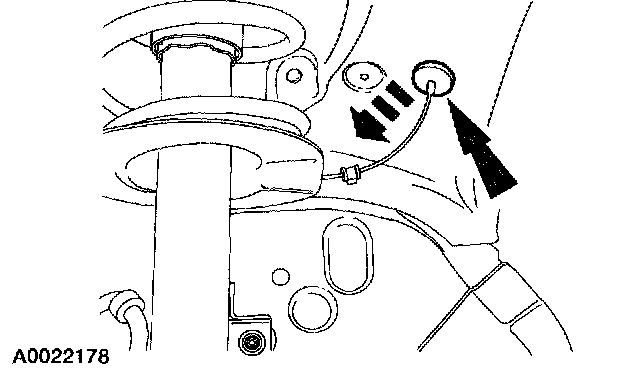

2. Detach the grommet from the body and pull the connector through the hole.

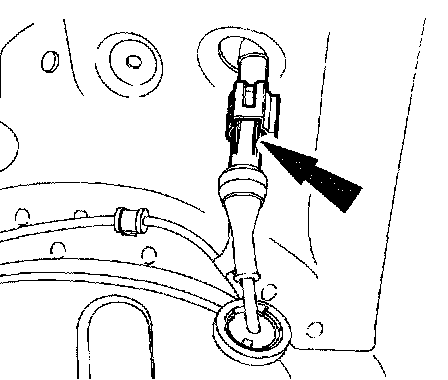

3. Disconnect the sensor wiring.

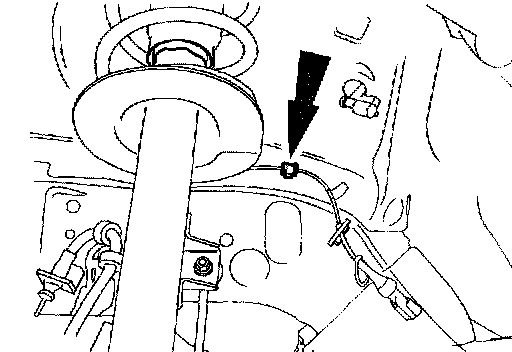

4. Detach the retainer.

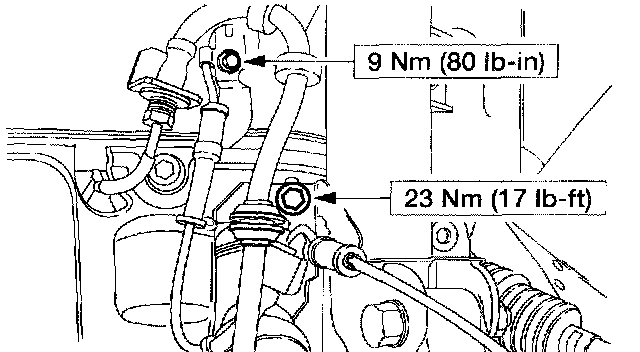

5. Remove the bolts.

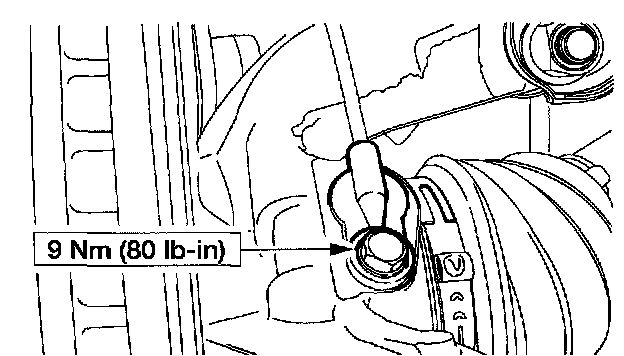

6. NOTE: Clean off any dirt that may have collected around the sensor before removal. Remove the bolt and the sensor.

NOTE: Thoroughly clean the mounting surface.

To install, reverse the removal procedure.
