Test T

PINPOINT TEST T: THE SAFETY BELT WARNING INDICATOR IS INOPERATIVE (CHIME IS OPERATIVE)

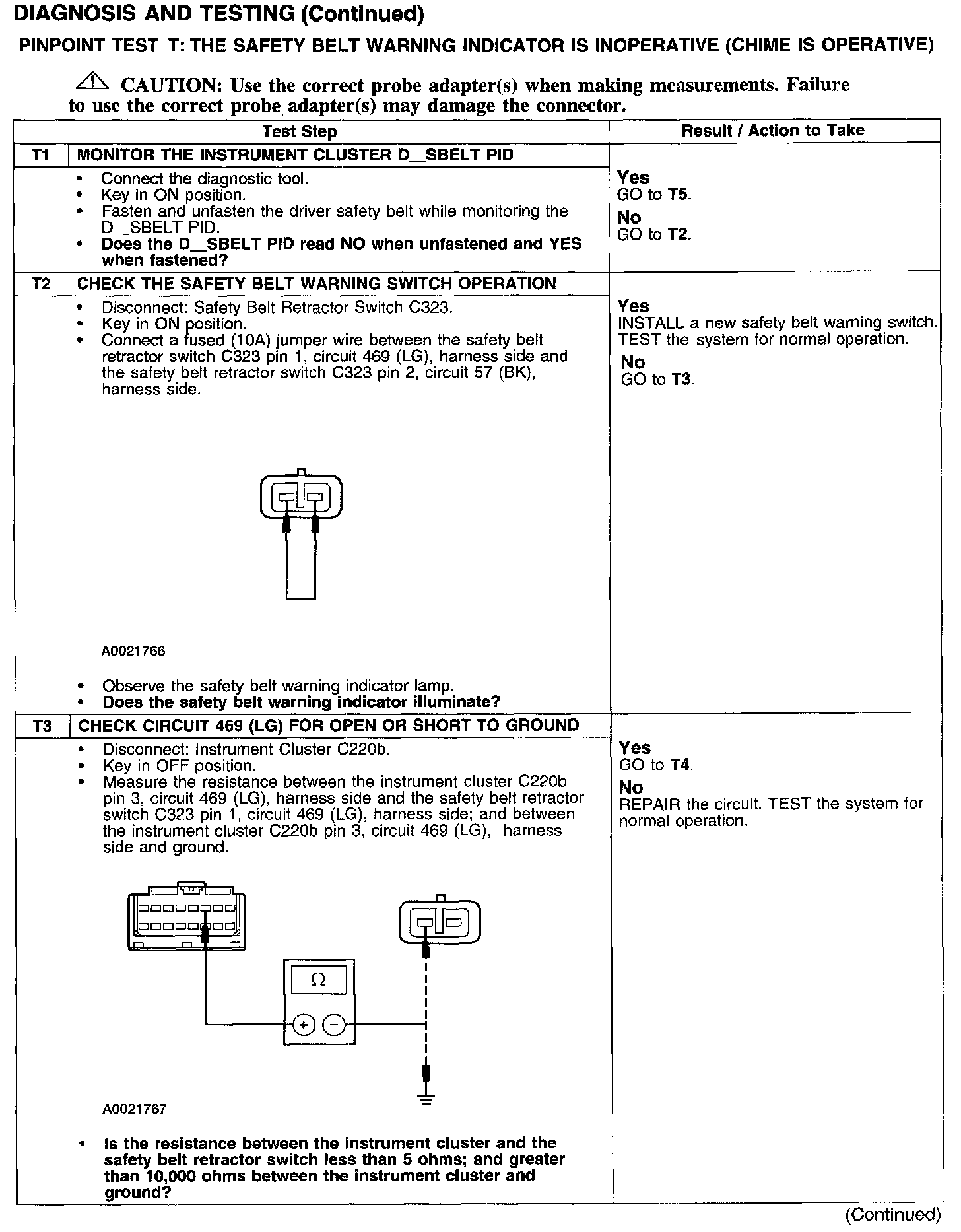

Test T1-T3:

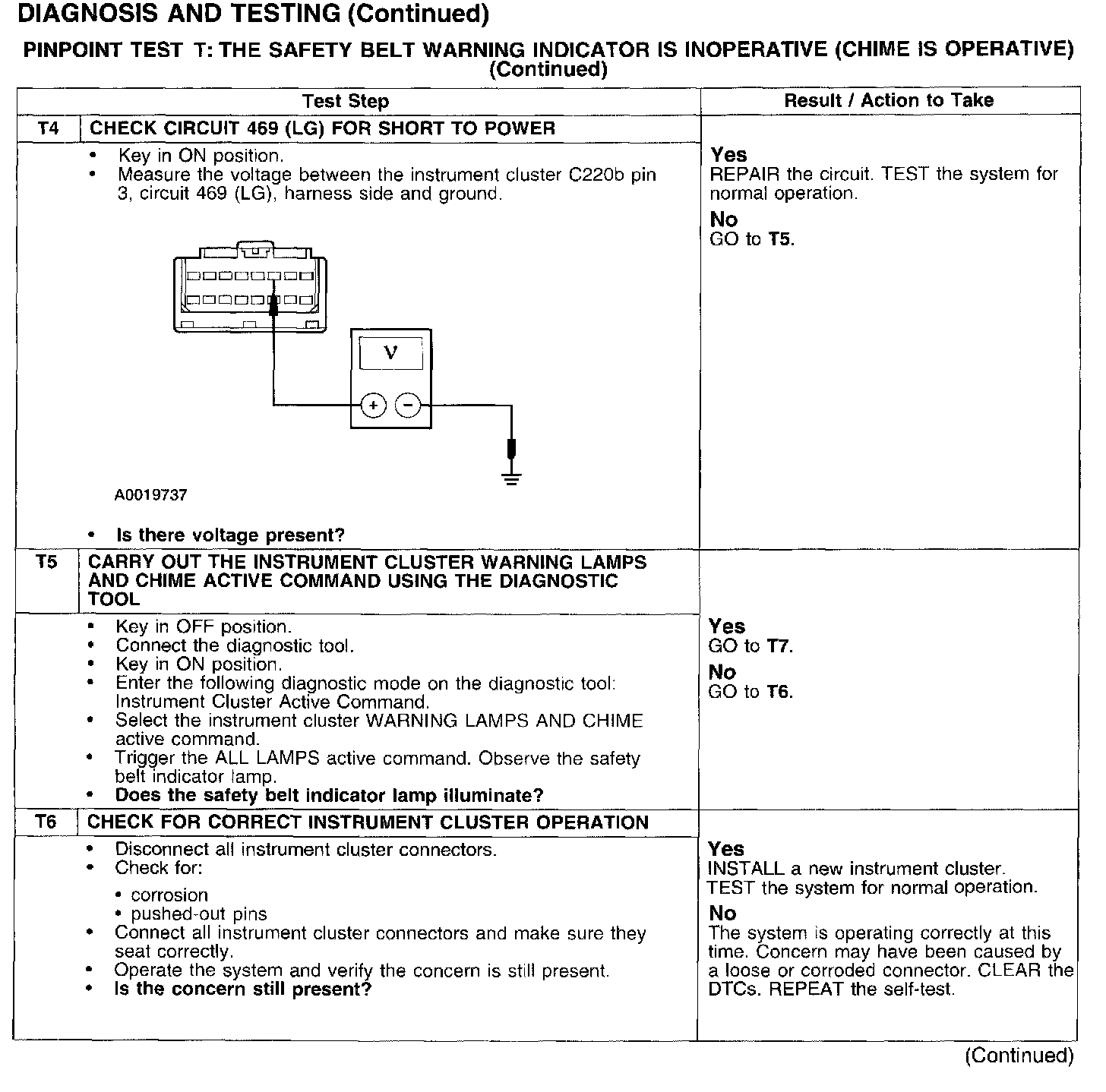

Test T4-T6:






Test T7:
