Windshield Wiper Motor

WINDSHIELD WIPER MOTOR

REMOVAL
1. Remove the cowl top vent panels.

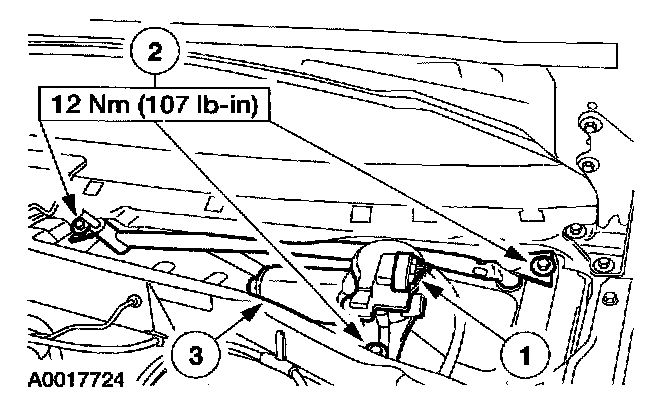

2. Remove the wiper mounting arm and pivot shaft.
1 Disconnect the electrical connector.
2 Remove the bolts.
3 Remove the wiper mounting arm and pivot shaft.

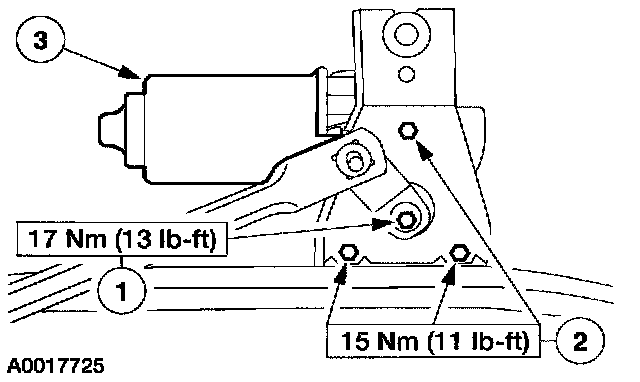

3. Remove the windshield wiper motor.
1 Remove the bolt and windshield wiper motor linkage.
2 Remove the windshield wiper motor mounting bolts.
3 Remove the windshield wiper motor.

INSTALLATION
1. To install, reverse the removal procedure.
