Rear Window Wiper Motor

REAR WINDOW WIPER MOTOR

REMOVAL

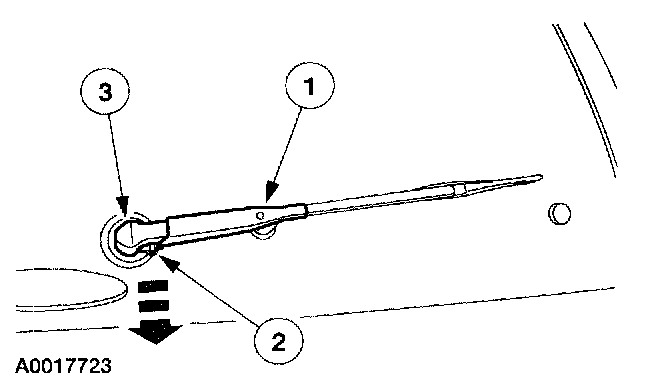

1. Remove the pivot arm.
1 Lift pivot arm to the upright position.
2 Slide the locking tab out.
3 Pull up and remove the pivot arm.

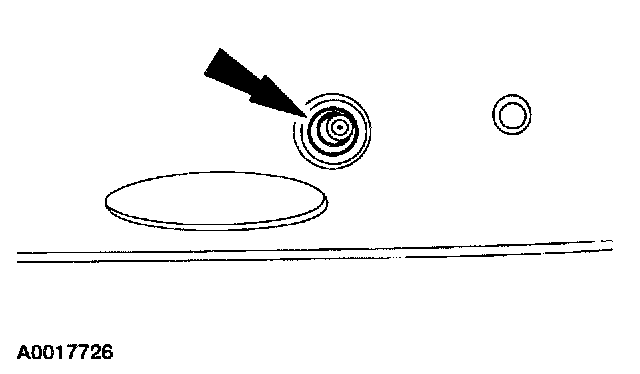

2. Remove the rear wiper motor shaft nut cover.

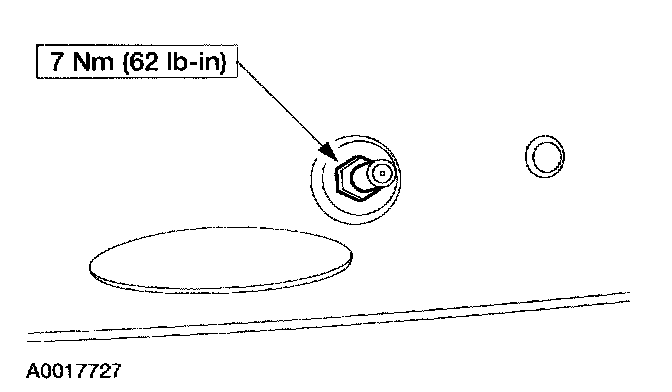

3. Remove the rear wiper motor shaft nut.
4. Open the liftgate.

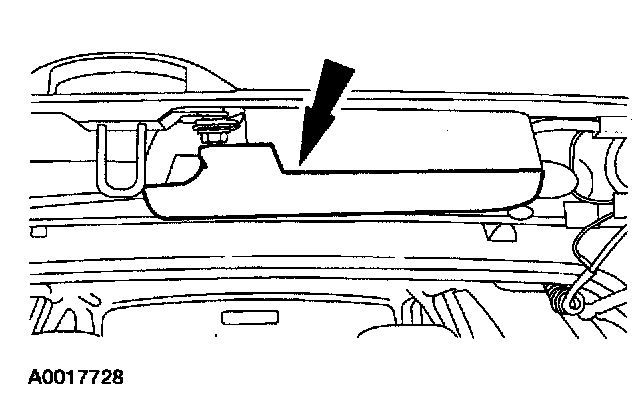

5. Remove the rear wiper motor plastic cover.







6. Remove rear wiper motor.
1 Disconnect the electrical connector.
2 Remove the nut.
3 Remove the bolt.
4 Remove the rear wiper motor.

INSTALLATION
1. To install, reverse the removal procedure.
