Rear

WIPER PIVOT ARM - REAR

REMOVAL

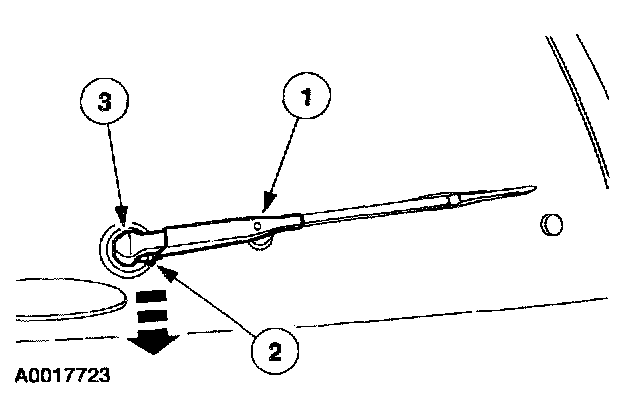

1. Remove the pivot arm.
1 Lift pivot arm to the upright position.
2 Slide the locking tab out.
3 Pull up and remove the pivot arm.

INSTALLATION
1. To install, reverse the removal procedure.
- Adjust the windshield wiper pivot arm.
