Rear Window Wiper Blade and Pivot Arm Adjustment

REAR WINDOW WIPER BLADE AND PIVOT ARM ADJUSTMENT

1. Cycle and park the rear window wiper.

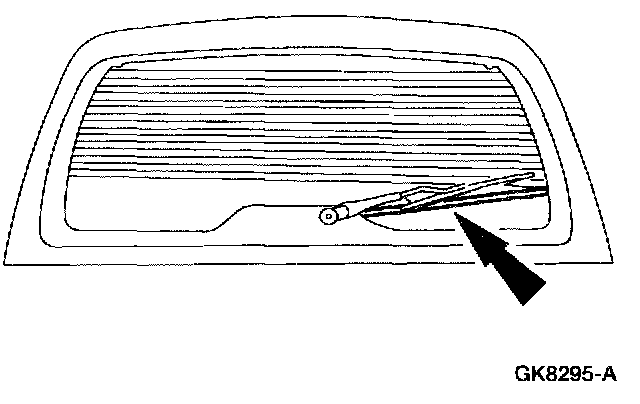

2. Verify that the rear window wiper blade is located at the specified position.
3. If not within specification, remove the rear window wiper pivot arm and reposition to the correct location.
