Rear Window Washer Pump

REAR WINDOW WASHER PUMP

REMOVAL
1. Remove the RH front wheel and tire assembly.
2. Remove the RH front splash shield.







3. WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on the label of the washer solution container. Failure to follow these instructions may result in personal injury.

NOTE: To prevent spilling windshield washer fluid, drain the windshield washer reservoir before washer pump removal.

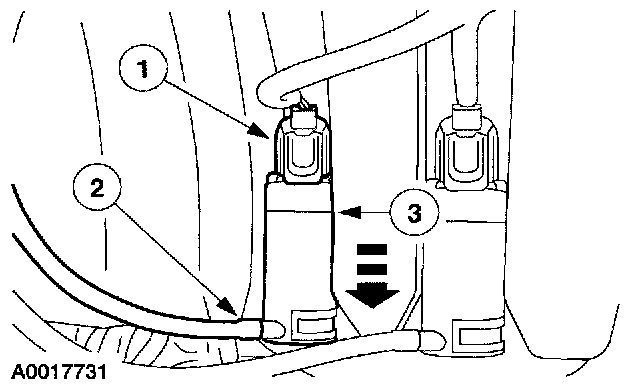

Remove the windshield washer pump.
1 Disconnect the electrical connector.
2 Disconnect the hose.
3 Remove the windshield washer pump.

INSTALLATION

1. CAUTION: Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

To install, reverse the removal procedure.

- WARNING: Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on the label of the washer solution container. Failure to follow these instructions may result in personal injury.

Fill the windshield washer reservoir with Ultra-Clear Windshield Washer Concentrate C9AZ-19550-AC or BC or equivalent meeting Ford specification ESR-M17P5-A.
