Home >> Ford Truck >> 2003 >> Escape 2WD V6-181 3.0L DOHC VIN 1 Duratec >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Test K

Test K

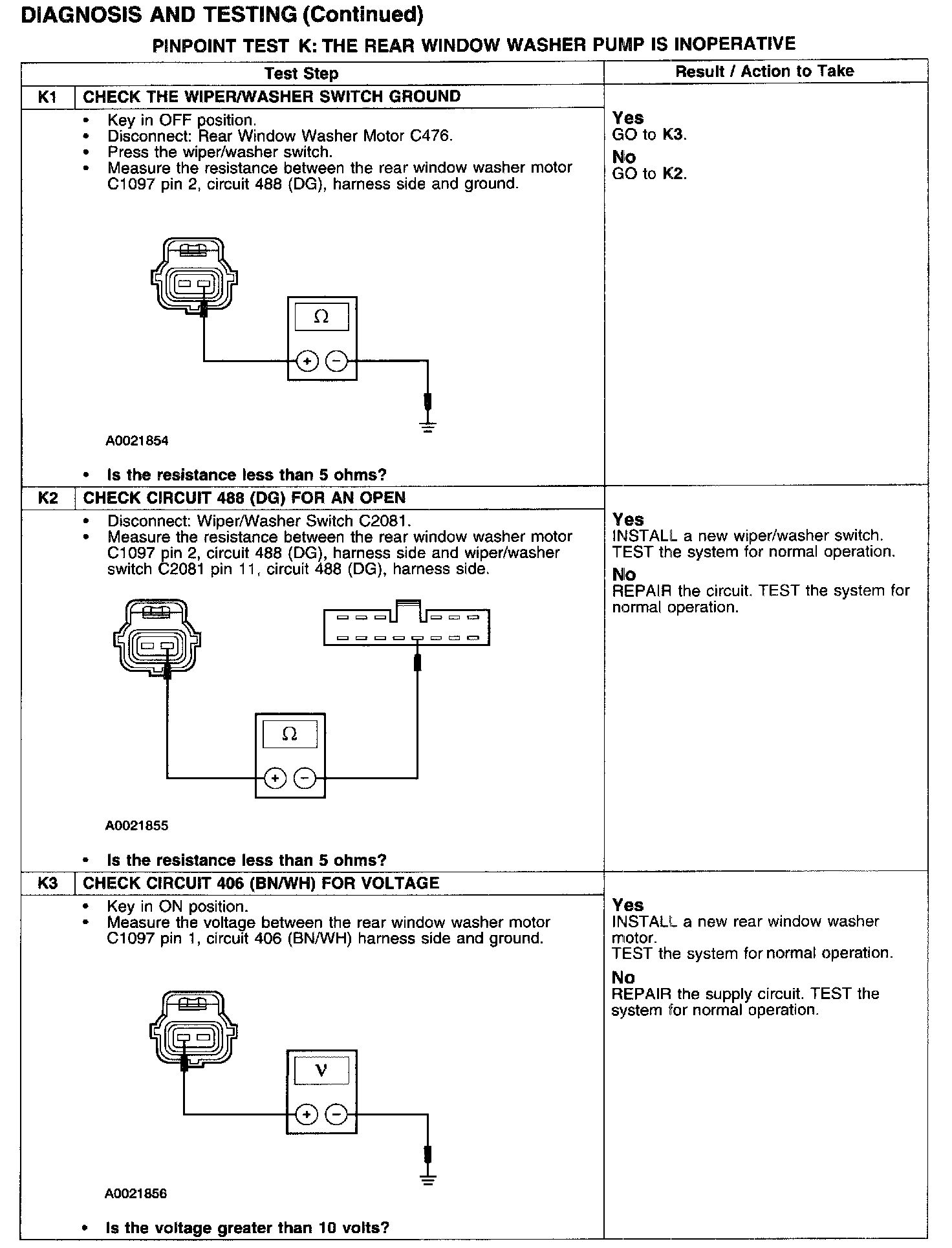

PINPOINT TEST K: THE REAR WINDOW WASHER PUMP IS INOPERATIVE


Test K1-K3:
